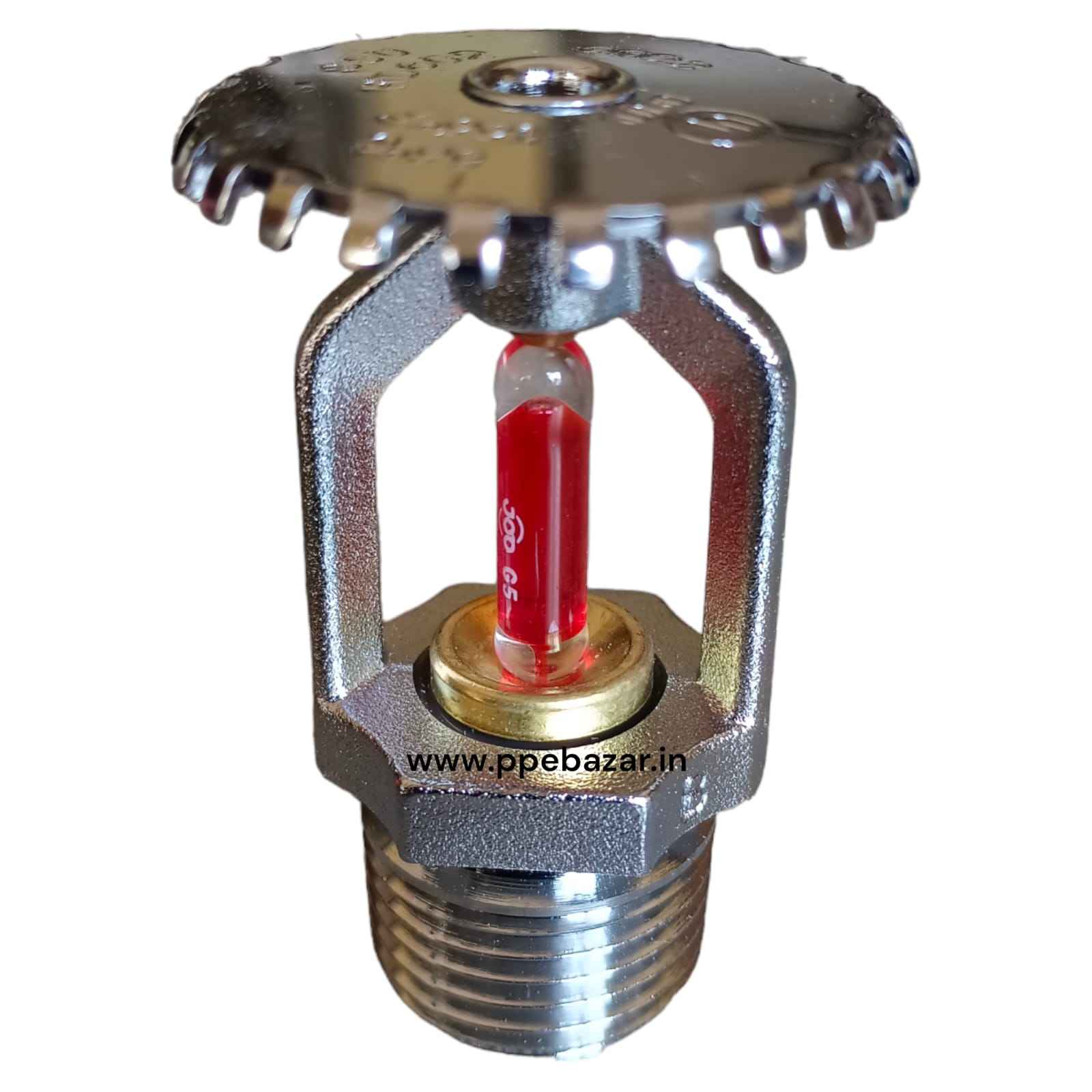

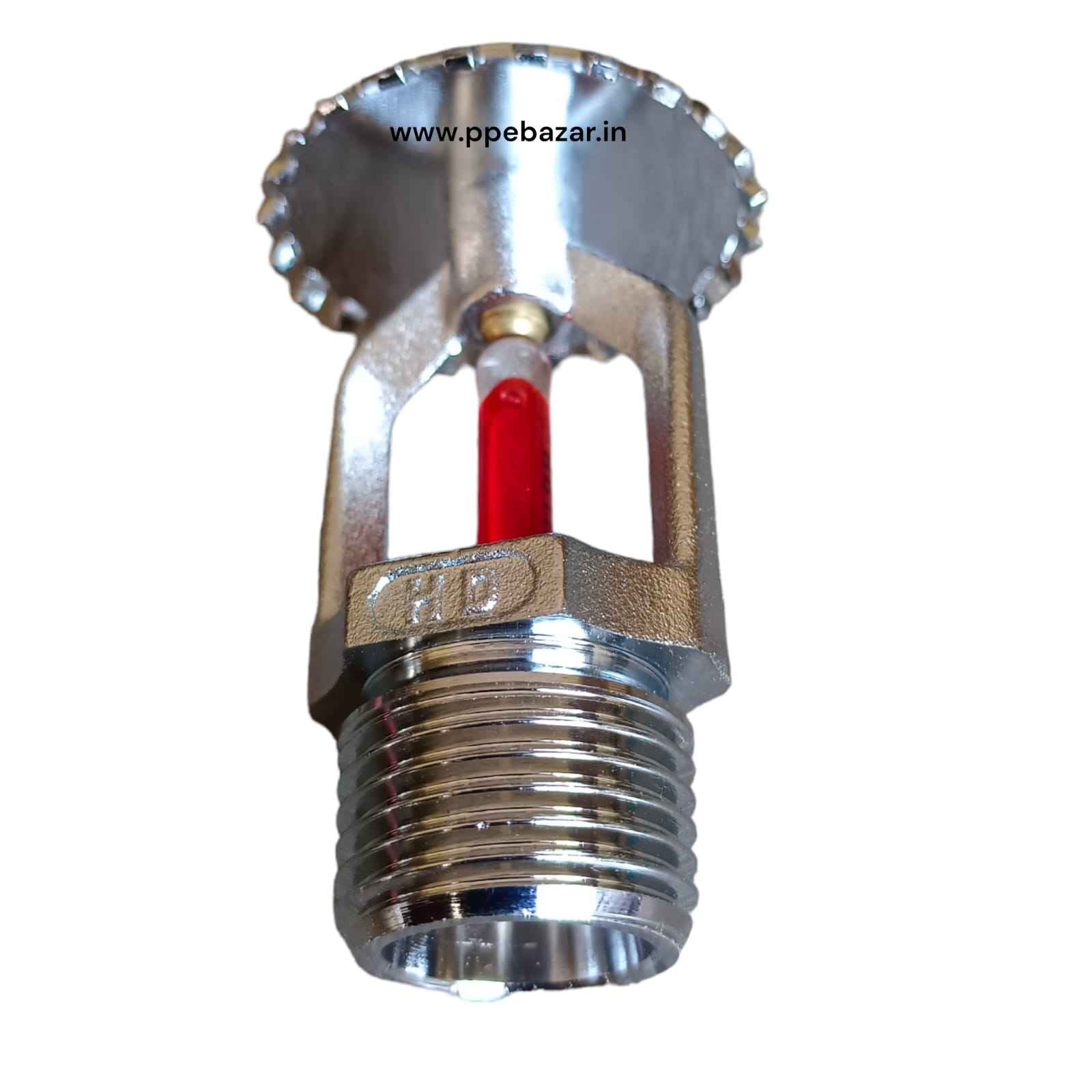

The HD Make Sprinkler is a high-quality fire protection device designed for use in automatic sprinkler systems. This upright sprinkler is engineered to provide standard response and standard coverage, making it ideal for commercial and industrial applications. It operates at a temperature rating of 68°C, ensuring effective fire suppression. The sprinkler features a 1/2” BSPT thread connection and a K-factor of 5.6 (80), ensuring optimal water distribution. The chrome finish provides durability and corrosion resistance. This model is UL Listed, ensuring compliance with safety and performance standards.

Technical Specifications

• Brand: HD
• Type: Upright Sprinkler
• Temperature Rating: 68°C (155°F)
• Response Type: Standard Response (SR)
• Coverage Type: Standard Coverage (SC)
• Thread Size: 1/2” BSPT
• K-Factor: 5.6 (80)
• Finish: Chrome Plated
• Approval: UL Listed
• Application: Fire Protection Systems
• Material: Corrosion-resistant components for long-term reliability
• Operating Pressure: As per UL standards
• Installation Orientation: Upright

Key Features

✅ Standard Response & Coverage: Provides reliable fire protection performance.
✅ Upright Orientation: Suitable for specific installation requirements.
✅ Durable Chrome Finish: Enhances corrosion resistance and longevity.
✅ K-5.6 (80) Factor: Ensures efficient water discharge.
✅ UL Listed: Certified for quality and safety compliance.
✅ Easy Installation: 1/2” BSPT threading for secure connection.

This HD Make Sprinkler is a trusted solution for fire suppression in various environments, including warehouses, industrial facilities, and commercial buildings.
