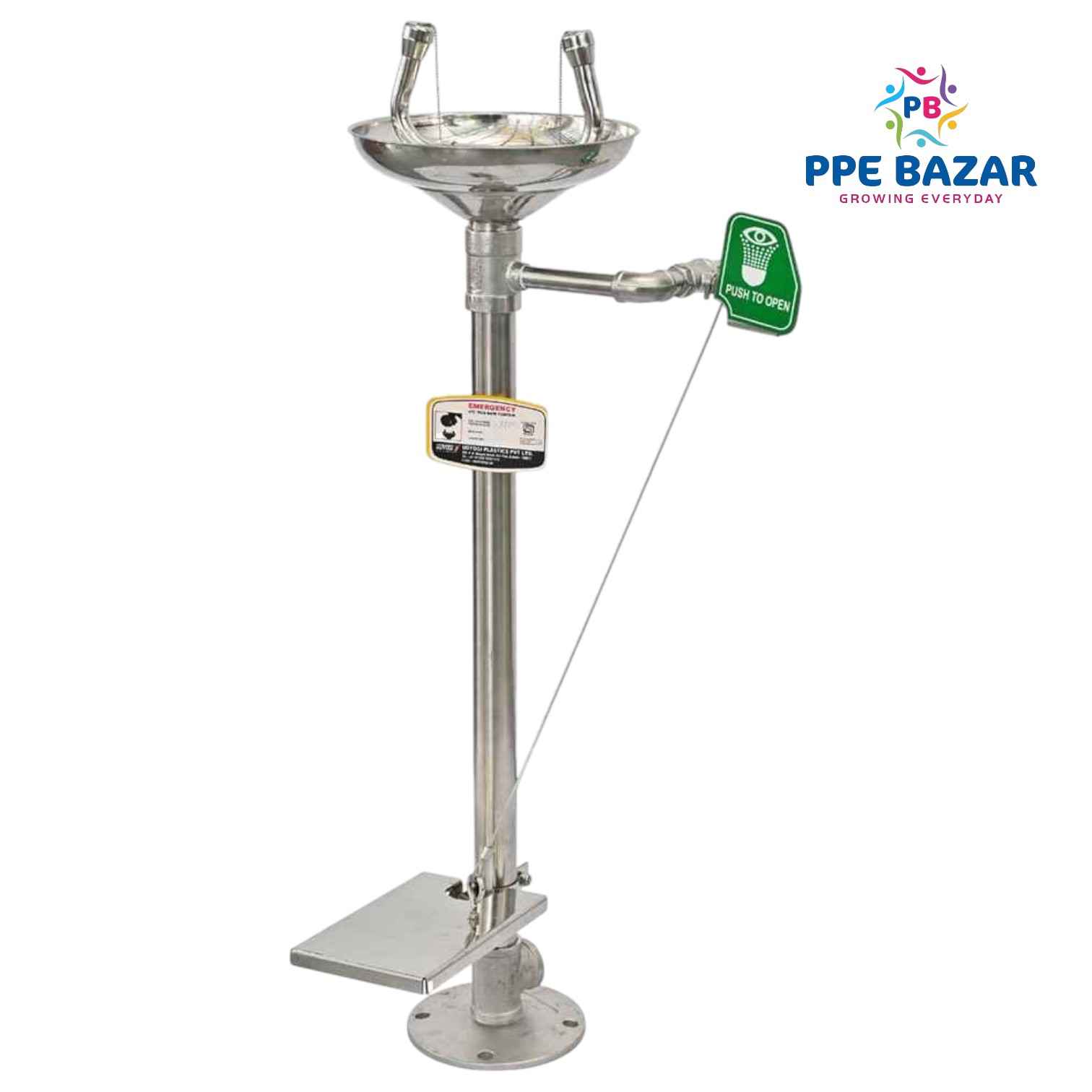

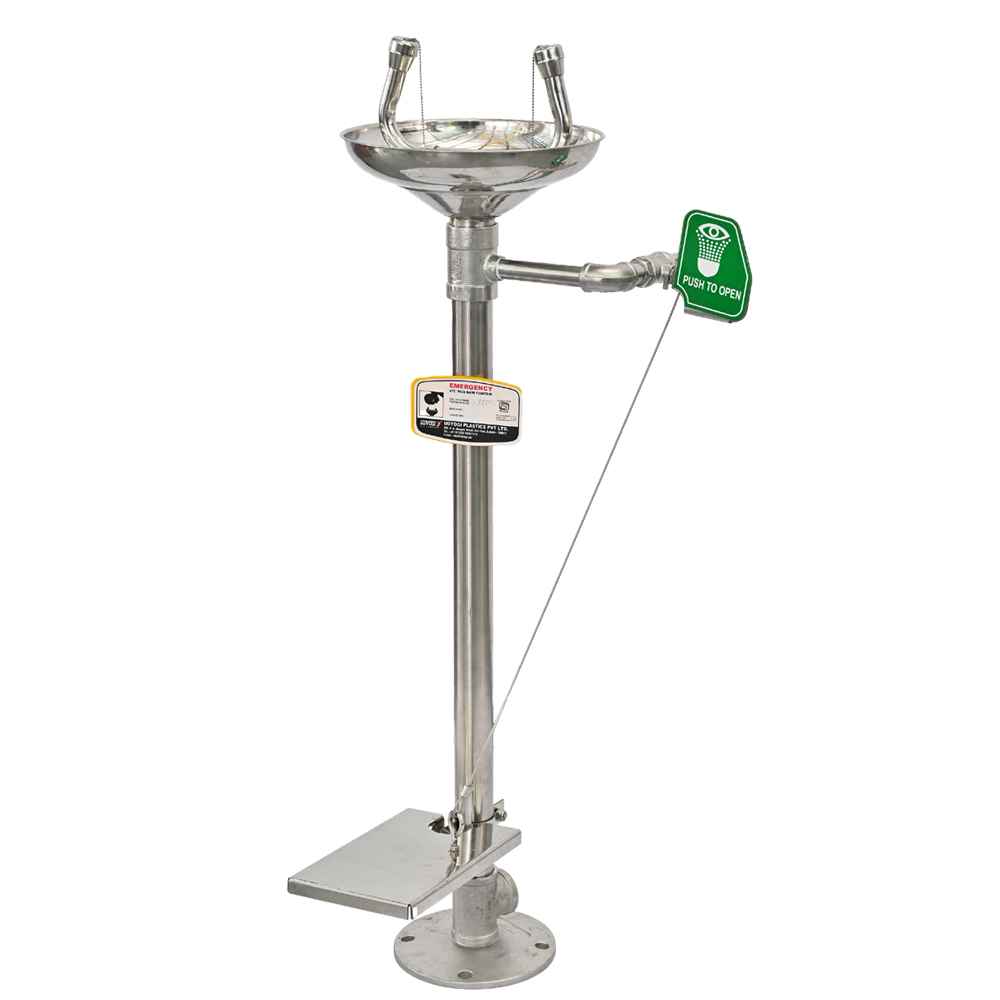

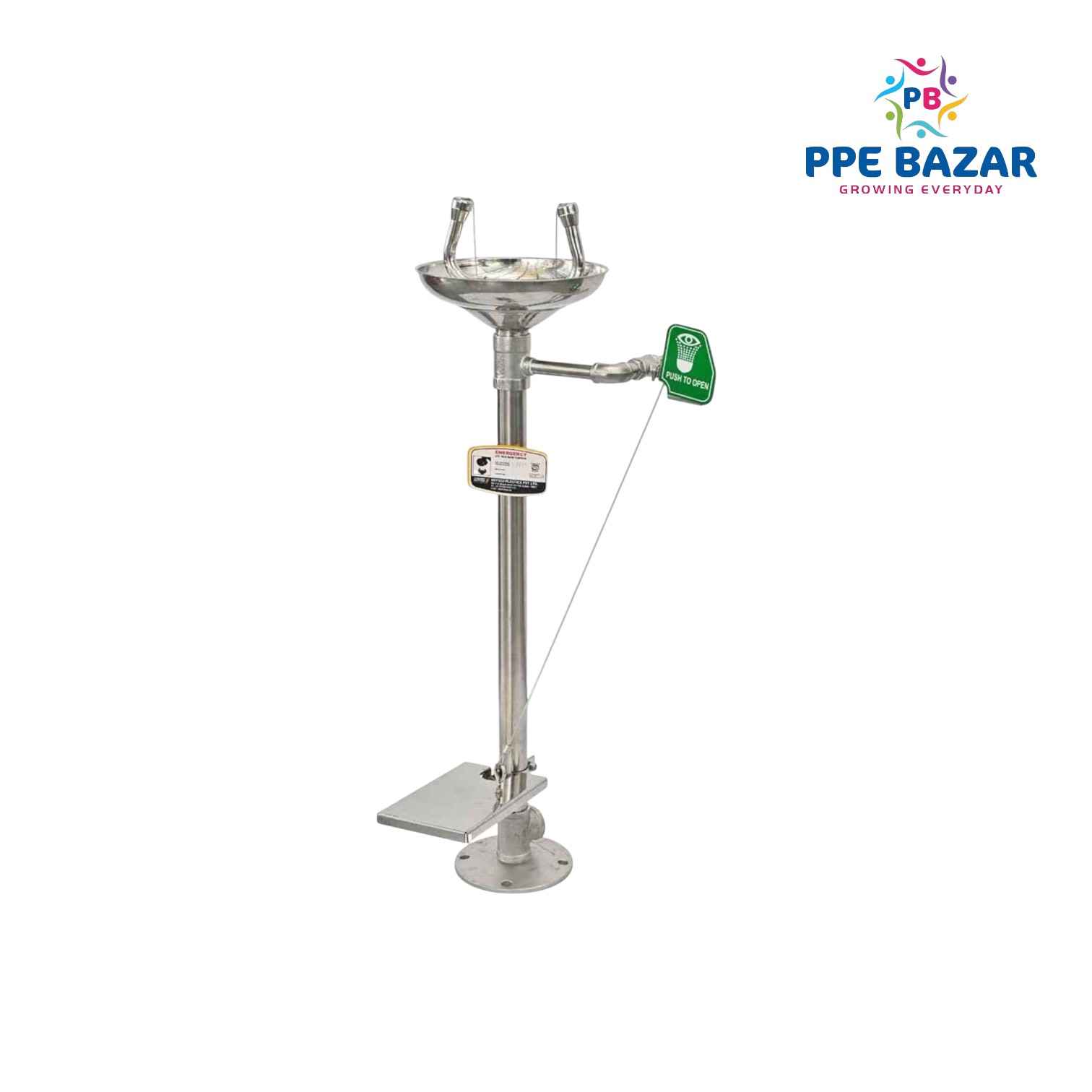

Emergency Eye/Face Wash Fountain with Pedal 4710SS

Quick Info

• Water inlet connections of 1/2’’ NB for eye / face wash
• Water outlet connection – 1¼” NB
• Eye wash discharge rate – 12 lpm. (minimum)
• Receptor bowl attached for minimize wastage of water
• With foot pedal for hands free operation to supply and control water flow through eye wash heads

                                                    Description

Emergency eye/face wash fountain operates independently by push lever.
Pipe SS 304 pipe.
Valve SS stay open ball valve with push plate.
Bowl Receptor bowl made of SS and highly resistant to acid, alkali and oil among others.
Automiser heads Twin soft flow automiser head which has aerators to control the stream straightness and diameter, thus reducing splash by aerating the stream. It also controls to save water and reduce energy costs. The twin flow has cover which protects from dust and opens with water pressure.
Activation Push plate and foot paddle, Single rod operation to open and close the flow
Water inlet and drain 1/2 inches BSP inlet and 1¼ inches BSP drain.
Standard IS: 10592:1982.
