Ultra 5000 LRX  Series

• Shell: HDPE
• No. of Anchoring point: 6
• Cradle option: Textile or Plastic
• Nape strap Option: Slip fit or Ratchet Fit

• Description

       Udyogi Ultra, HDPE (High Density Polyethylene) helmet combines advanced safety and superior comfort, making it ideal for various demanding environments.

•      It ensures outstanding impact resistance and durability, while also offering superior heat resistance to safeguard the wearer in high-temperature conditions, designed to meet IS 2925:1984           and EN 397:2012 standard.

• SPECIFICATION

•   Model: ULTRA 5000 Series
•   Construction: HDPE (High Density Polyethylene)
•   Ventilation: Non-ventilated
•   Variants: Plastic slip fit (5000L); Plastic ratchet fit (5000 LRX);
    Textile slip fit (5001 L); Textile ratchet fit (5001 LRX)
•    Weight: Slip fit – 370 grams, Ratchet fit – 378 grams
•    Color: White, Yellow, Blue, Red, Green, Orange, Sky Blue, grey, pink
•    Peak size: 22 mm.
•     Accessories slot size: 15 mm
•     Internal vertical clearance: Plastic- 31 mm & Textile- 31 mm.
•     Wearing height: 95(plastic) & 95(textile)
•    Circumference of Headband: 530 mm – 600 mm.
•     Cradle width: 24.58 mm
•     Chin strap width: 19.85 mm
•     Packaging : 40 (ratchet fit); 50 (slip-fit) pcs per carton
•     Standard: IS 2925:1984 & EN 397:2012

• FEATURES

   Shell made of HDPE compound

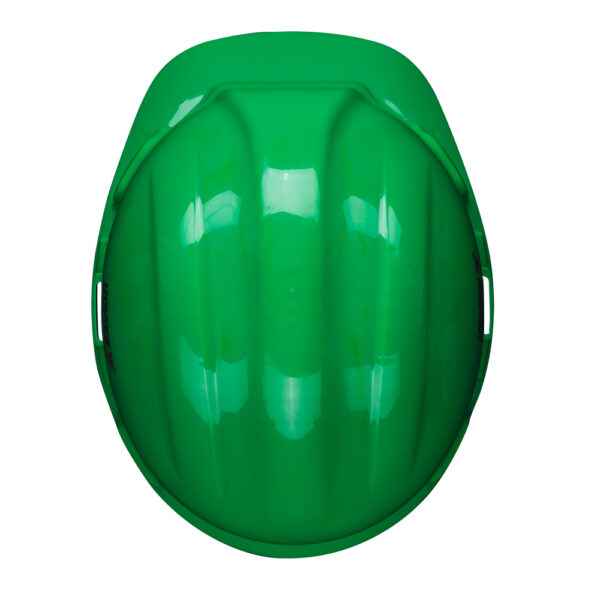

•   Three ribs at the top of the helmet

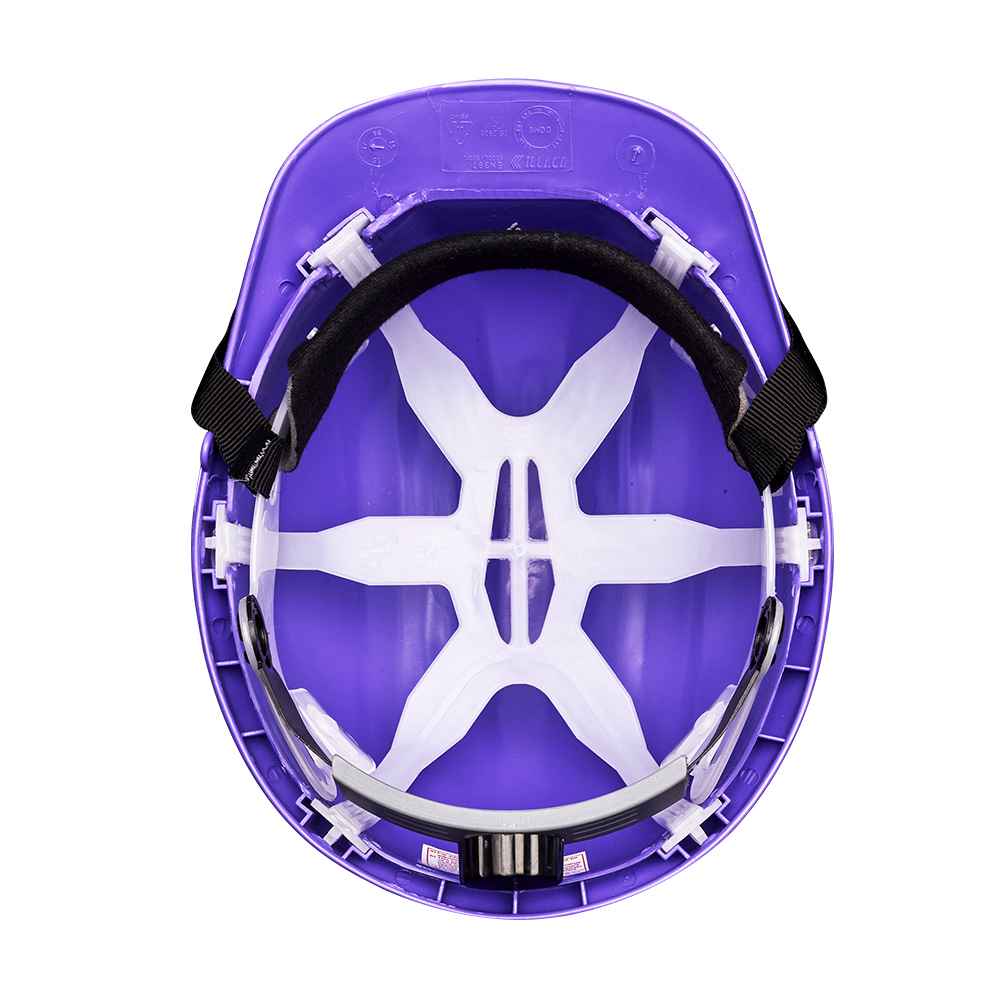

•   6-point plastic / textile suspension with slip fit or ratchet fit adjustment
 •   Adjustable chin strap for customized fit and comfort
•    Designed for use in industries where there is a hazard, which can damage skull

• Benefits

         Cost-Effective: The helmet’s HDPE construction is impact resistant, making it suitable for use in different environment.
•         Regulatory Compliance: Assists in meeting safety and environmental regulations by providing protection against falling objects
•         Safety Improvement: The textile suspension system with a ratchet fit mechanism allows for easy and precise adjustment, ensuring a secure and comfortable fit.
•         Recyclable: Prevents hazardous substances from spilling onto the ground or into waterways
•         Durability: The robust construction and impact-resistant properties of the HDPE shell ensure long-lasting performance, even in harsh conditions

• Application

• The HDPE shell provides excellent protection against falling objects which ensures the wearer’s safety in case of an accident.
• HDPE is resistant to various chemicals, adding an extra layer of protection in environments where exposure to hazardous substances is possible.
• The helmet can withstand different weather conditions without degrading, ensuring consistent performance in diverse outdoor environments.

• SAFETY INFO

     When worn and maintained properly, safety helmets do a great job of protecting your head from a single impact.
• Excessive discoloration of the shell color of the surface may indicate a loss of strength. Such helmets should be discarded.
• All components, shells, harnesses, headbands, and accessories should be visually inspected at least weekly.
• Helmets with sound shells but with damaged, excessively dirty, or defective harness components should be withdrawn from service and the complete harness and cradle replaced

• Variants

•      5000 L (Plastic Slipfit)
•     5000 LRX (Plastic ratchet fit)
