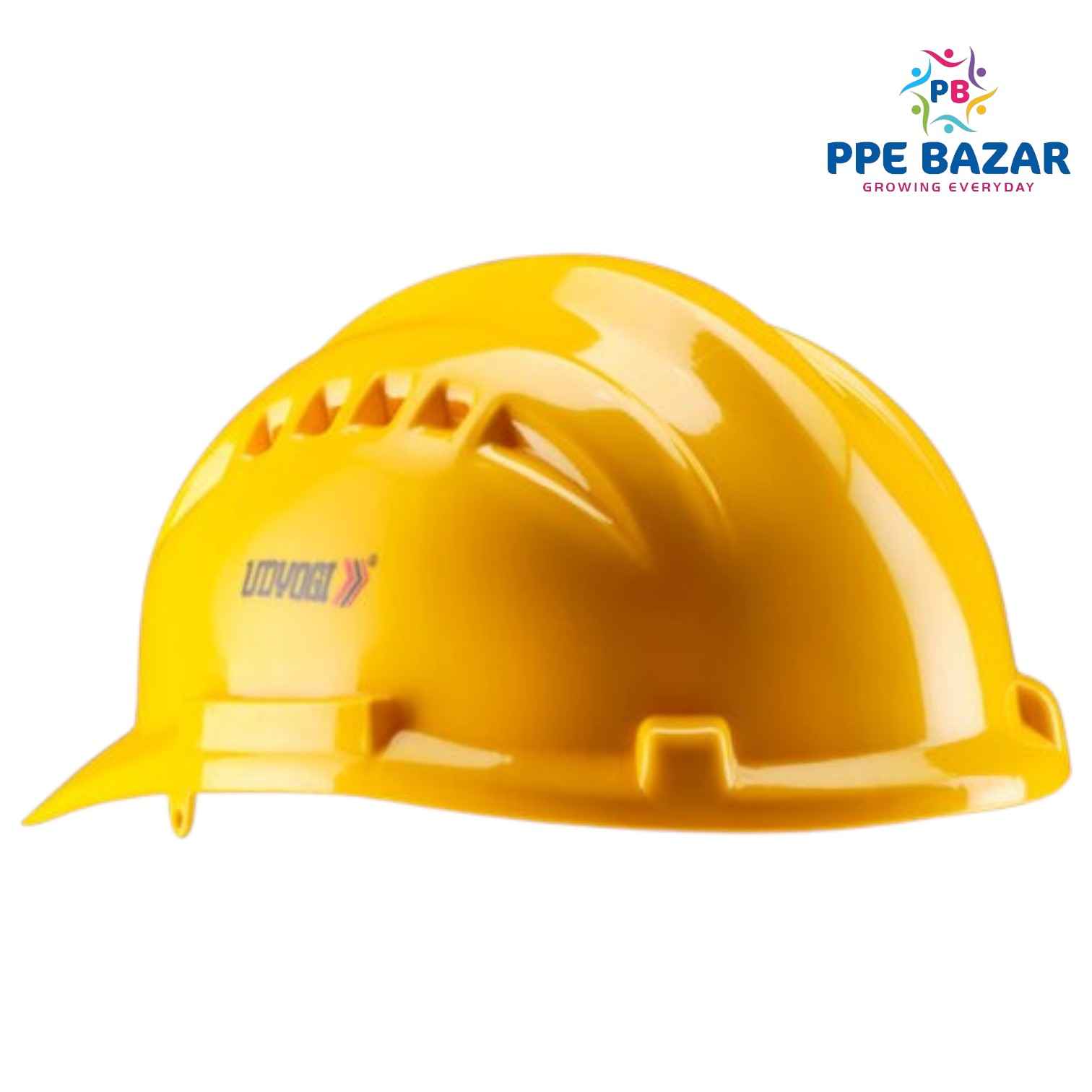

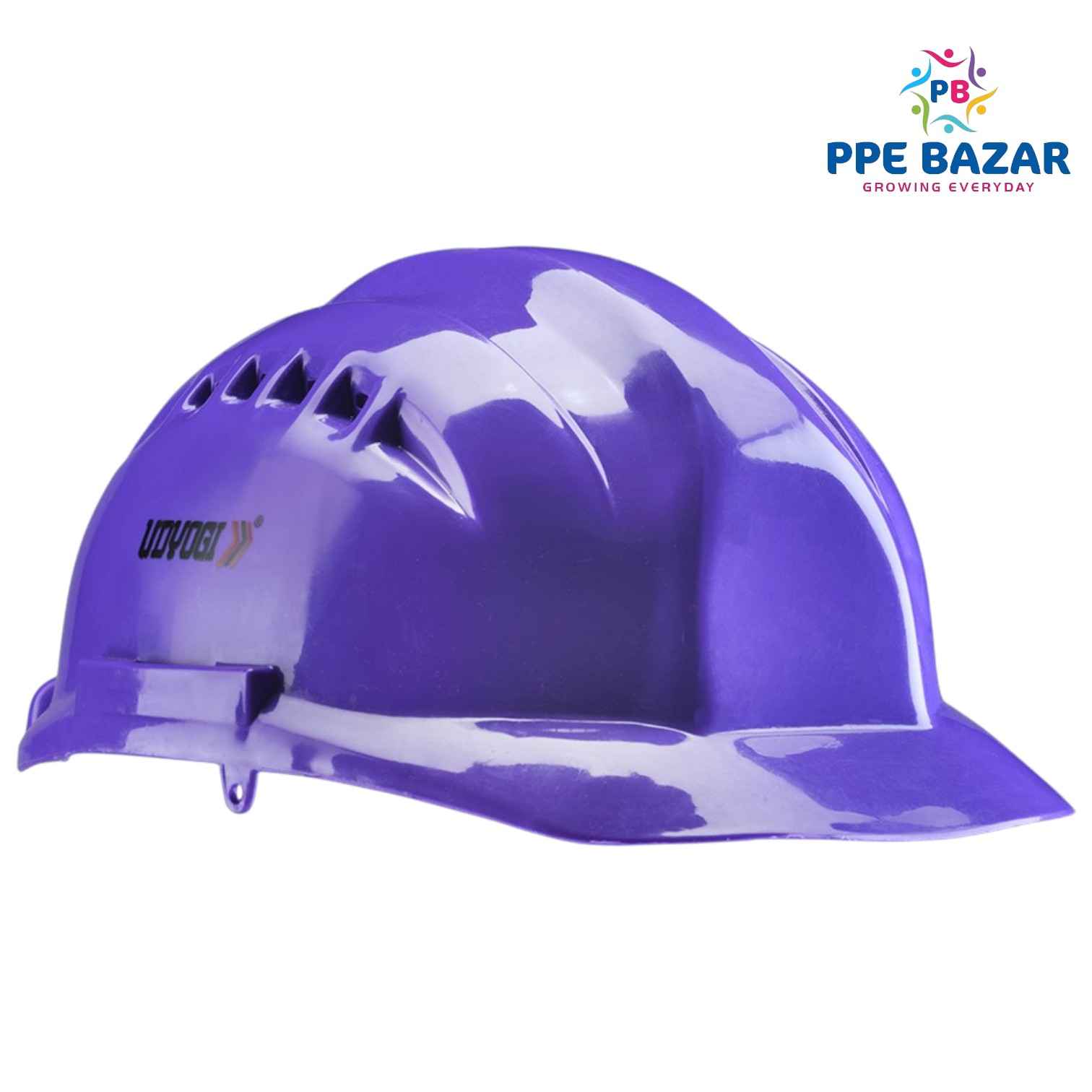

Ultra Vent 7000 Lrx Series
• Shell: HDPE (High Density Polyethylene)
- 3 - ribs on shell top for better shock absorbance
- 4 - point side crown ventilation

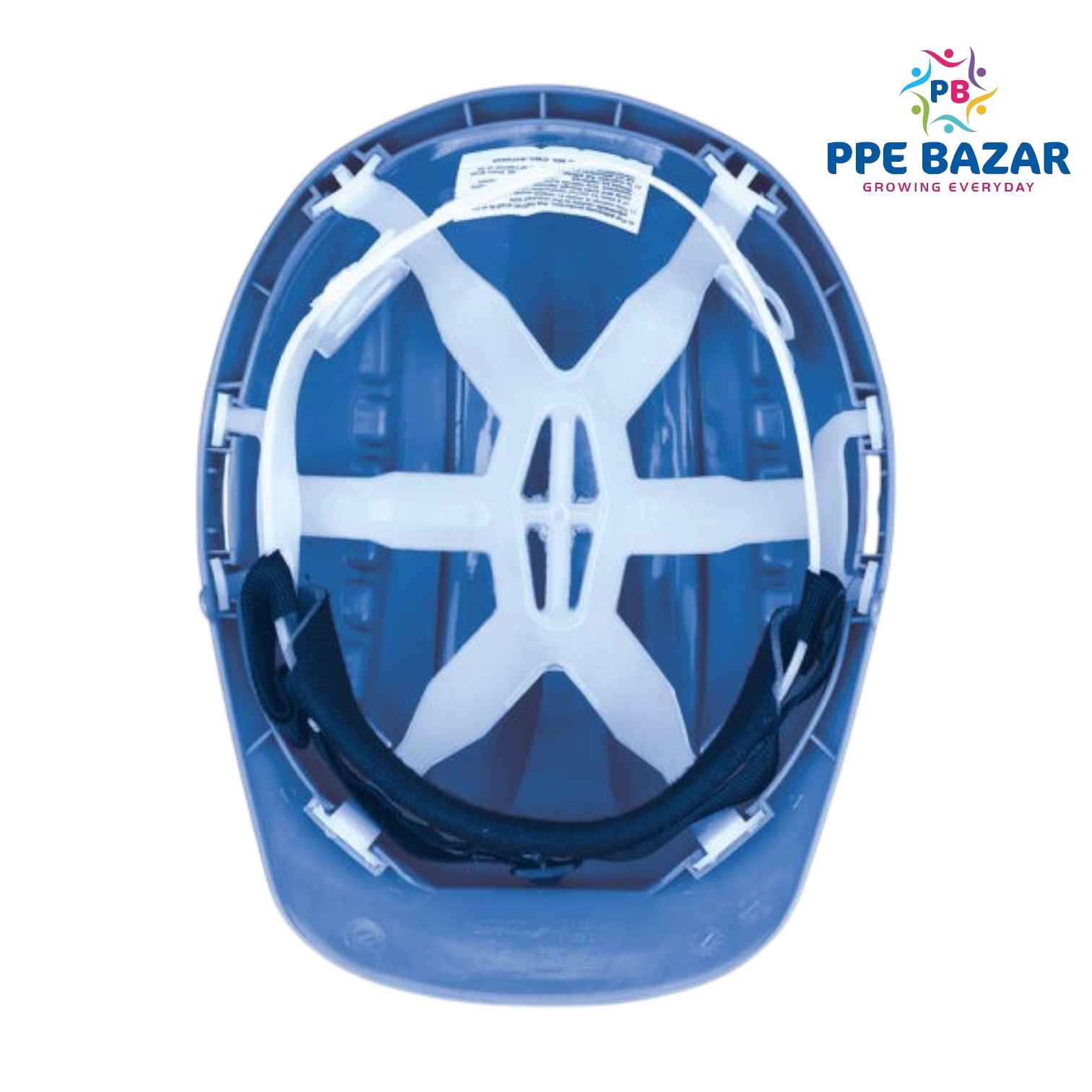

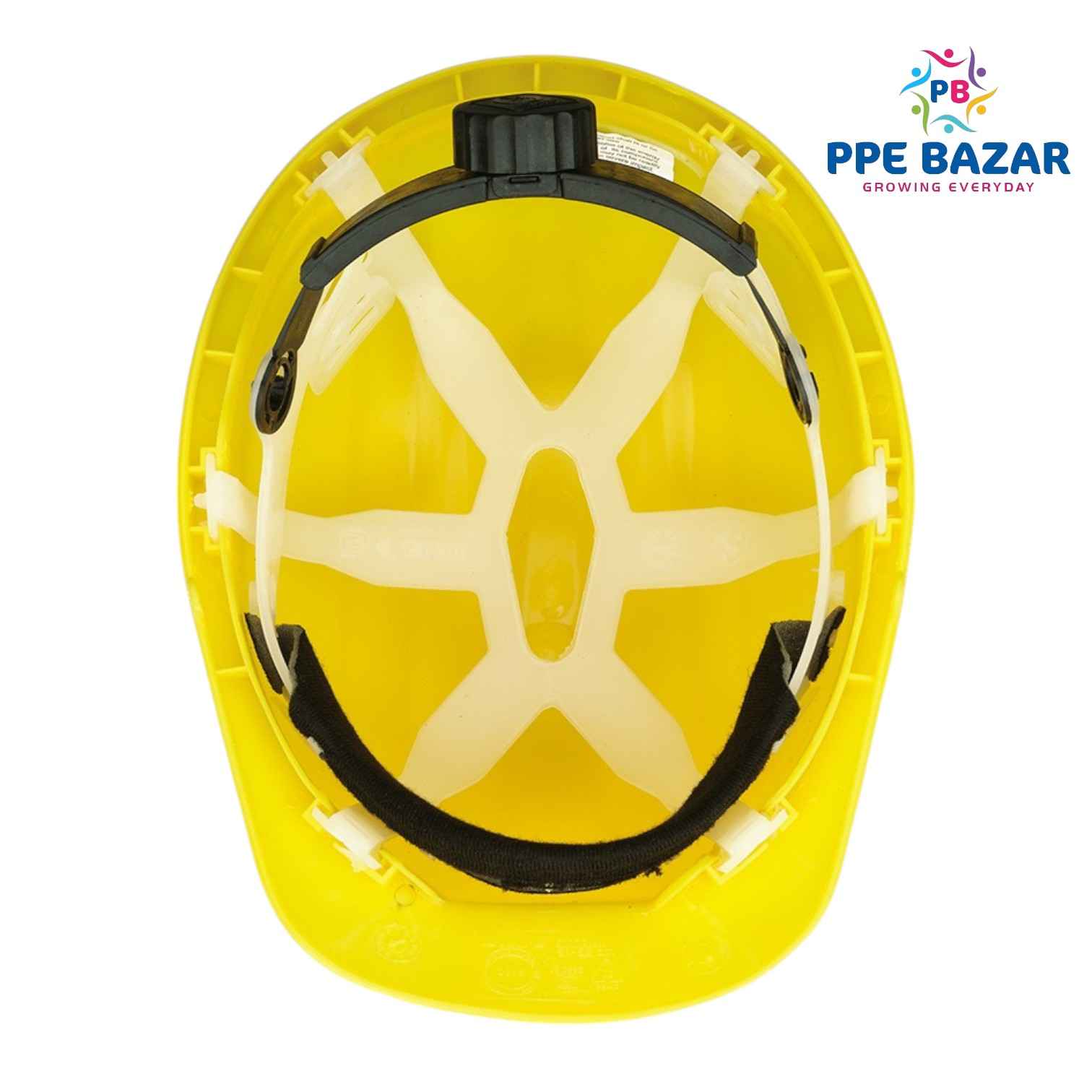

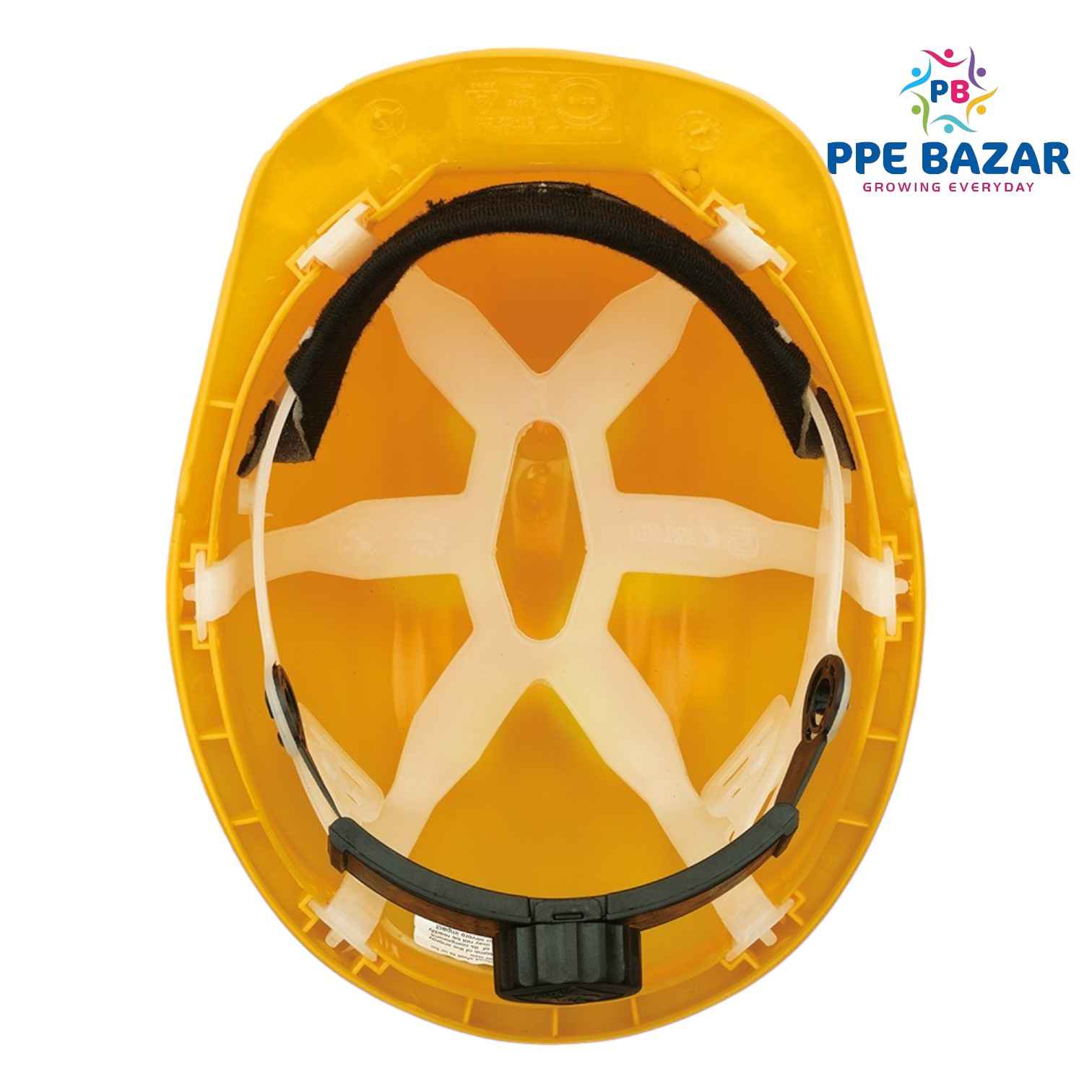

- 8 - point plastic cradle with ratchet fit adjustment
- Universal slots for face shield and ear muff accessories
- Cradle option: Textile or Plastic
- Cradle option: Textile or Plastic
• Udyogi Ultravent, 7000 LRX HDPE (High Density Polyethylene) helmet combines advanced safety and superior comfort, making it ideal for various demanding environments.
• It ensures outstanding impact resistance and durability, while also offering superior heat resistance to safeguard the wearer in high-temperature conditions, designed to meet IS 2925:1984 and EN 397:2012 standard.
Model: ULTRAVENT 7000 LRX Series
• Construction: HDPE (High Density Polyethylene)
• Ventilation: 4-point crown ventilation on both sides
• Variants: Plastic slip fit (7000L); Plastic ratchet fit (7000 LRX)
• Ratchet fit- 398 grams
• Color: White, Yellow, Blue, Red, Green, Orange, Sky Blue, grey,
• Peak size: 22 mm.
• Accessories slot size: 30 mm.
• Internal vertical clearance: Plastic- 32 mm & Textile- 30 mm.
• Wearing height: 93(plastic) & 95(textile)
• Circumference of Headband: 520-600 mm.
• Cradle width: 24.58 mm. (Textile)
• Chin strap width: 19.85 mm
• Packaging: 40 (ratchet fit)
• Standard: IS 2925:1984 & EN 397:2012
Shell proprietary injection-moulded HDPE compound
• 4-point crown ventilation system on both sides provides air circulation & comfort
• 6-point plastic / textile suspension with ratchet fit adjustment
• Adjustable chin strap for customized fit and comfort
• High quality sweat band provides comfort
ost-Effective: The helmet’s HDPE construction is impact resistant, making it suitable for use in different environment.
• Regulatory Compliance: Assists in meeting safety and environmental regulations by providing protection against falling objects
• Safety Improvement: The textile suspension system with a ratchet fit mechanism allows for easy and precise adjustment, ensuring a secure and comfortable fit.
• Recyclable: Prevents hazardous substances from spilling onto the ground or into waterways
• Durability: The robust construction and impact-resistant properties of the HDPE shell ensure long-lasting performance, even in harsh conditions
The HDPE shell provides excellent protection against falling objects which ensures the wearer’s safety in case of an accident.
• HDPE is resistant to various chemicals, adding an extra layer of protection in environments where exposure to hazardous substances is possible.
• The helmet can withstand different weather conditions without degrading, ensuring consistent performance in diverse outdoor environments.
When worn and maintained properly, safety helmets do a great job of protecting your head from a single impact.
• Excessive discoloration of the shell color of the surface may indicate a loss of strength. Such helmets should be discarded.
• All components, shells, harnesses, headbands, and accessories should be visually inspected at least weekly.
- 7000 L (Plastic Slipfit)
- 7000 LRX (Plastic ratchet fit)
- 7001 L (Textile Slipfit)
- 7001 LRX (Textile Ratchet fit)
