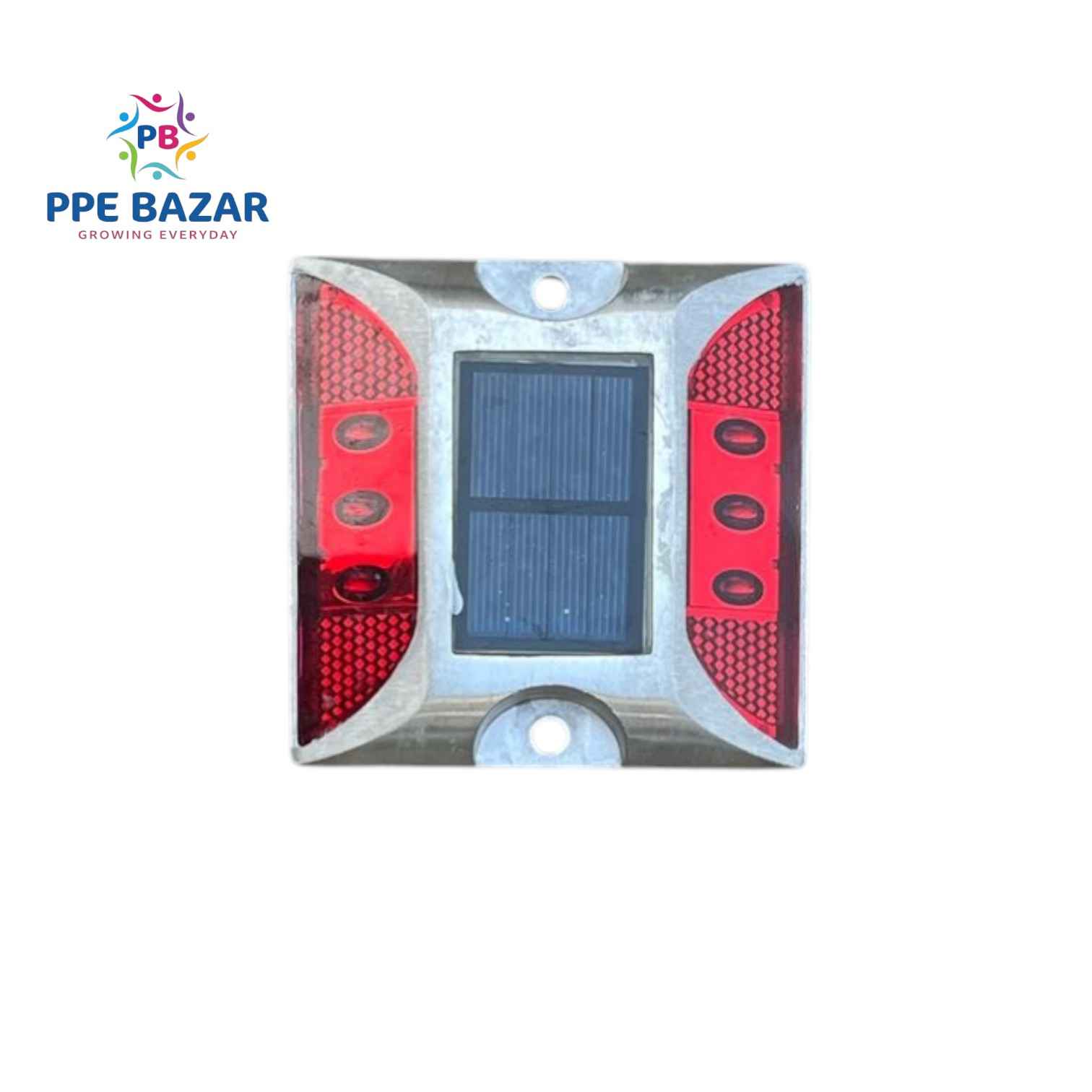

The AXN-SS-W/O-SHANK-RED-I is a premium imported solar-powered road stud engineered for autonomous, self-sustaining road safety illumination. Built with a cast aluminium and polycarbonate (PC) reflector body, it harnesses solar energy during the day and delivers powerful LED visibility through the night — entirely without external power supply. Designed for shankless surface mounting, it is ideal for roads, highways, pedestrian crossings, and airport taxiways requiring reliable, maintenance-minimal lighting markers.
Variant Details
| Model Code |
LED Colour |
Shank Type |
| AXN-SS-W/O-SHANK-RED-I |
Red |
Without Shank (Surface Mount) |
Technical Specifications
| Parameter |
Details |
| Brand / Model |
AXN-SS-W/O-SHANK-RED-I |
| Product Type |
Solar Road Stud |
| Origin |
Imported |
| Body Material |
Cast Aluminium & Plastic PC Reflector |
| Dimensions |
105mm × 105mm × 25mm |
| Solar Panel |
2V / 120mA (Mono Crystalline Silicon) |
| Maintenance Power |
1.2V / 600mAh |
| LED Configuration |
3 LEDs per side (TTL 6 nos total) |
| LED Type |
NOS LED |
| LED Colour |
Red |
| Standby Time |
72 Hours once fully charged |
| Working Temperature |
-20°C to +80°C |
| Visual Range |
500 Metres |
| Weight |
330 Grams |
| Water Resistance |
Waterproof — IP68 |
| Shank Type |
Without Shank (Flat Surface Mount) |
Solar & Power System Details
| Parameter |
Details |
| Solar Panel Type |
Mono Crystalline Silicon |
| Panel Voltage |
2V |
| Panel Current |
120mA |
| Battery Voltage |
1.2V |
| Battery Capacity |
600mAh |
| Charging Source |
Solar (Daylight) |
| Backup Duration |
72 Hours continuous after full charge |
| Operating Mode |
Auto ON at dusk / OFF at dawn |
LED System Details
| Parameter |
Details |
| LEDs Per Side |
3 Nos |
| Total LEDs |
6 Nos (TTL) |
| LED Colour |
Red |
| Visibility Range |
500 Metres |
| Flash Mode |
Active LED flashing for attention |
| Purpose |
Bidirectional / Unidirectional road warning |
Protection & Durability
| Parameter |
Details |
| IP Rating |
IP68 — Fully Waterproof |
| Water Resistance |
Submersion-proof |
| Body Construction |
Cast Aluminium — High crush resistance |
| Temperature Range |
-20°C to +80°C |
| UV Resistance |
PC Reflector is UV stable |
| Load Bearing |
Suitable for heavy vehicular traffic |
Application Areas
| Environment |
Specific Use |
| National & State Highways |
Night-time lane delineation |
| Urban Roads |
Intersection and pedestrian crossing marking |
| Bridges & Flyovers |
Edge and centre line illumination |
| Tunnels |
Entry and exit warning markers |
| Airports |
Taxiway and runway edge marking |
| Toll Plazas |
Lane guidance and separation |
| Parking Areas |
Bay and aisle night marking |
| Coastal & Flood-Prone Roads |
IP68 waterproofing ensures reliability |
Key Features & Benefits
- ✅ Self-Powered Solar System — Zero electricity cost, zero wiring required
- ✅ 72-Hour Standby Backup — Operates through extended cloudy periods
- ✅ IP68 Waterproof — Fully submersion-resistant for all weather conditions
- ✅ Cast Aluminium Body — Withstands heavy vehicle loads without deformation
- ✅ 500 Metre Visibility — Long-range warning for high-speed roads
- ✅ 6 TTL LEDs — Powerful, wide-angle red illumination
- ✅ Mono Crystalline Solar Panel — Highest efficiency solar charging
- ✅ Wide Temperature Range — Reliable from freezing cold to extreme heat
- ✅ No Shank Required — Simple surface adhesive or bolt mounting
- ✅ Imported Quality — Meets international road safety standards
Comparison — Solar Stud vs Standard Road Stud
| Feature |
AXN Solar Road Stud |
Standard Road Stud |
| Power Source |
Solar (Self-Powered) |
None (Passive Reflector) |
| Visibility Range |
500 Metres (Active LED) |
~100–150 Metres (Reflective) |
| Night Visibility |
Active LED Illumination |
Depends on headlights |
| Weather Operation |
IP68 All-Weather |
Basic Weather Resistance |
| Backup Power |
72 Hours |
Not Applicable |
| Body Material |
Cast Aluminium + PC |
Plastic |
| Running Cost |
Zero |
Zero |
| Installation |
Surface Mount |
Shank or Surface |
| Best For |
Highways & High-Speed Roads |
Urban & Low-Speed Roads |
