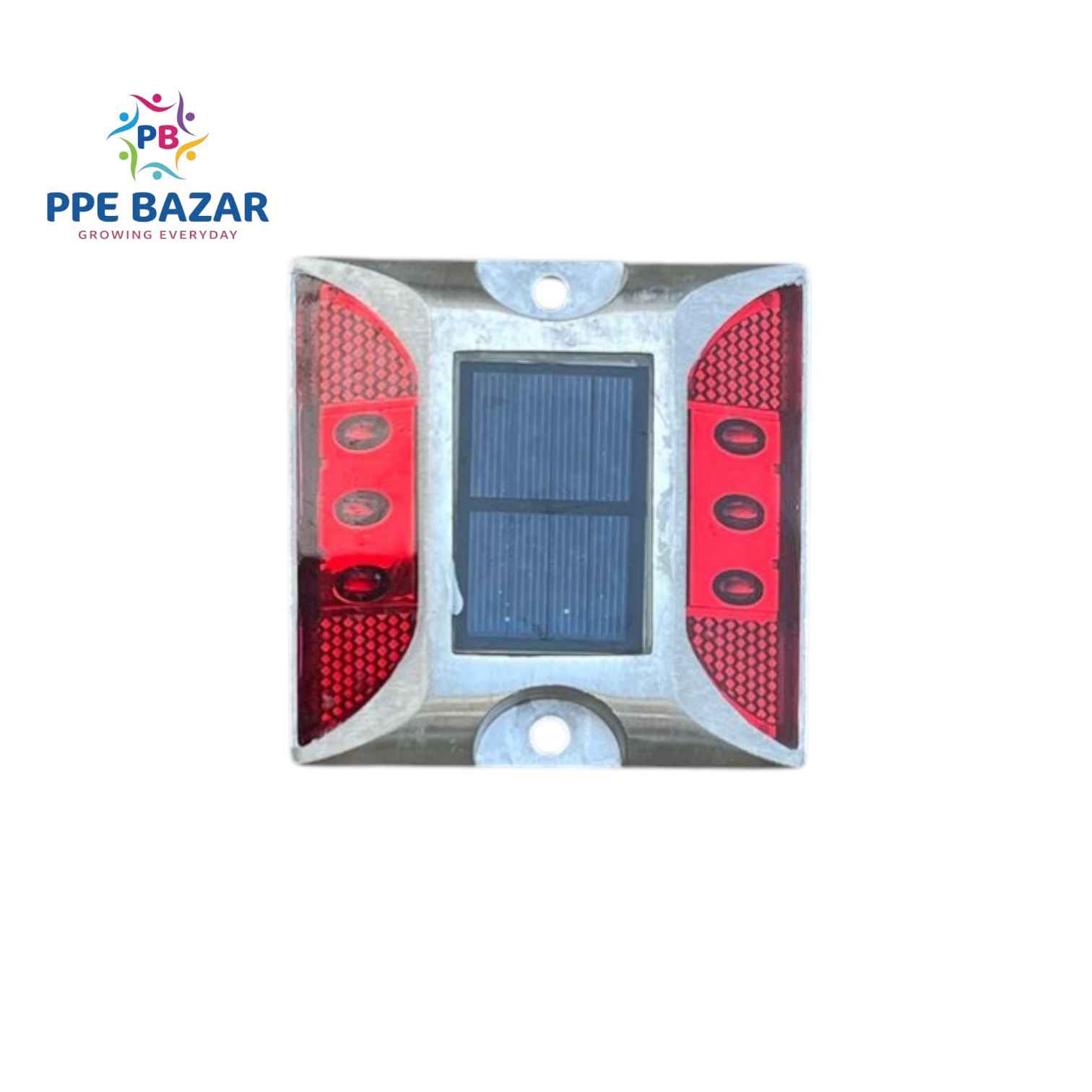

AXN-SS-W/O-SHANK-RED-L Solar Road Stud (Without Shank) — Indian Make
Product Overview
The AXN-SS-W/O-SHANK-RED-L is a domestically manufactured solar-powered road stud built to match international performance standards. Sharing the same core architecture as its imported counterpart, this Indian-made variant offers a flashing LED mode for enhanced dynamic visibility — making it particularly effective for alerting drivers on high-speed corridors, sharp curves, and hazard zones. Constructed with cast aluminium and a polycarbonate (PC) reflector, it delivers robust, self-sustaining illumination with zero external power dependency.
Variant Details
| Model Code |
LED Colour |
Origin |
LED Mode |
| AXN-SS-W/O-SHANK-RED-L |
Red |
Indian (Local) |
Flashing |
Technical Specifications
| Parameter |
Details |
| Brand / Model |
AXN-SS-W/O-SHANK-RED-L |
| Product Type |
Solar Road Stud |
| Origin |
Indian (Local Make) |
| Body Material |
Cast Aluminium & Plastic PC Reflector |
| Dimensions |
105mm × 105mm × 25mm |
| Solar Panel |
2V / 120mA (Mono Crystalline Silicon) |
| Maintenance Power |
1.2V / 600mAh |
| LED Mode |
Flashing |
| LED Configuration |
3 LEDs per side (TTL 6 Nos) |
| LED Colour |
Red |
| Standby Time |
72 Hours once fully charged |
| Working Temperature |
-20°C to +80°C |
| Visual Range |
500 Metres |
| Weight |
330 Grams |
| Water Resistance |
Waterproof — IP68 |
| Shank Type |
Without Shank (Flat Surface Mount) |
Solar & Power System Details
| Parameter |
Details |
| Solar Panel Type |
Mono Crystalline Silicon |
| Panel Voltage |
2V |
| Panel Current |
120mA |
| Battery Voltage |
1.2V |
| Battery Capacity |
600mAh |
| Charging Source |
Solar Daylight |
| Backup Duration |
72 Hours after full charge |
| Operating Mode |
Auto ON at dusk / OFF at dawn |
LED System Details
| Parameter |
Details |
| LEDs Per Side |
3 Nos |
| Total LEDs |
6 Nos (TTL) |
| LED Colour |
Red |
| Flash Mode |
Active Flashing — dynamic pulsing light |
| Visibility Range |
500 Metres |
| Attention Effect |
Flashing pattern draws stronger driver attention vs steady light |
Protection & Durability
| Parameter |
Details |
| IP Rating |
IP68 — Fully Waterproof |
| Body Construction |
Cast Aluminium — High crush & impact resistance |
| Temperature Range |
-20°C to +80°C |
| UV Resistance |
PC Reflector UV stable — no yellowing |
| Load Bearing |
Rated for heavy vehicular traffic |
| Surface Finish |
Corrosion and abrasion resistant |
Application Areas
| Environment |
Specific Use |
| National & State Highways |
Night-time lane and edge delineation |
| Sharp Curves & Bends |
Flashing warning for approaching drivers |
| School & Hospital Zones |
Flashing alert for speed-sensitive areas |
| Bridges & Flyovers |
Edge illumination and drop-off warning |
| Intersections |
Hazard and priority road marking |
| Flood-Prone Roads |
IP68 ensures operation even under water |
| Toll Plazas |
Lane channelisation and guidance |
| Tunnels |
Entry/exit zone warning markers |
Key Features & Benefits
- ✅ Flashing LED Mode — Dynamic light pulse grabs driver attention more effectively than steady glow
- ✅ Indian Make — Locally manufactured, supports domestic industry, easier serviceability
- ✅ Self-Powered Solar — No wiring, no electricity costs, fully autonomous
- ✅ 72-Hour Backup — Reliable through extended overcast or rainy periods
- ✅ IP68 Waterproof — Fully submersion-proof for monsoon and flood conditions
- ✅ Cast Aluminium Body — Withstands heavy vehicle roll-over loads
- ✅ 500 Metre Visibility — Long-range warning for fast-moving traffic
- ✅ Mono Crystalline Panel — Maximum solar energy conversion efficiency
- ✅ Surface Mount Ready — No shank drilling required for installation
- ✅ Wide Temperature Tolerance — Performs reliably across all Indian climatic zones
