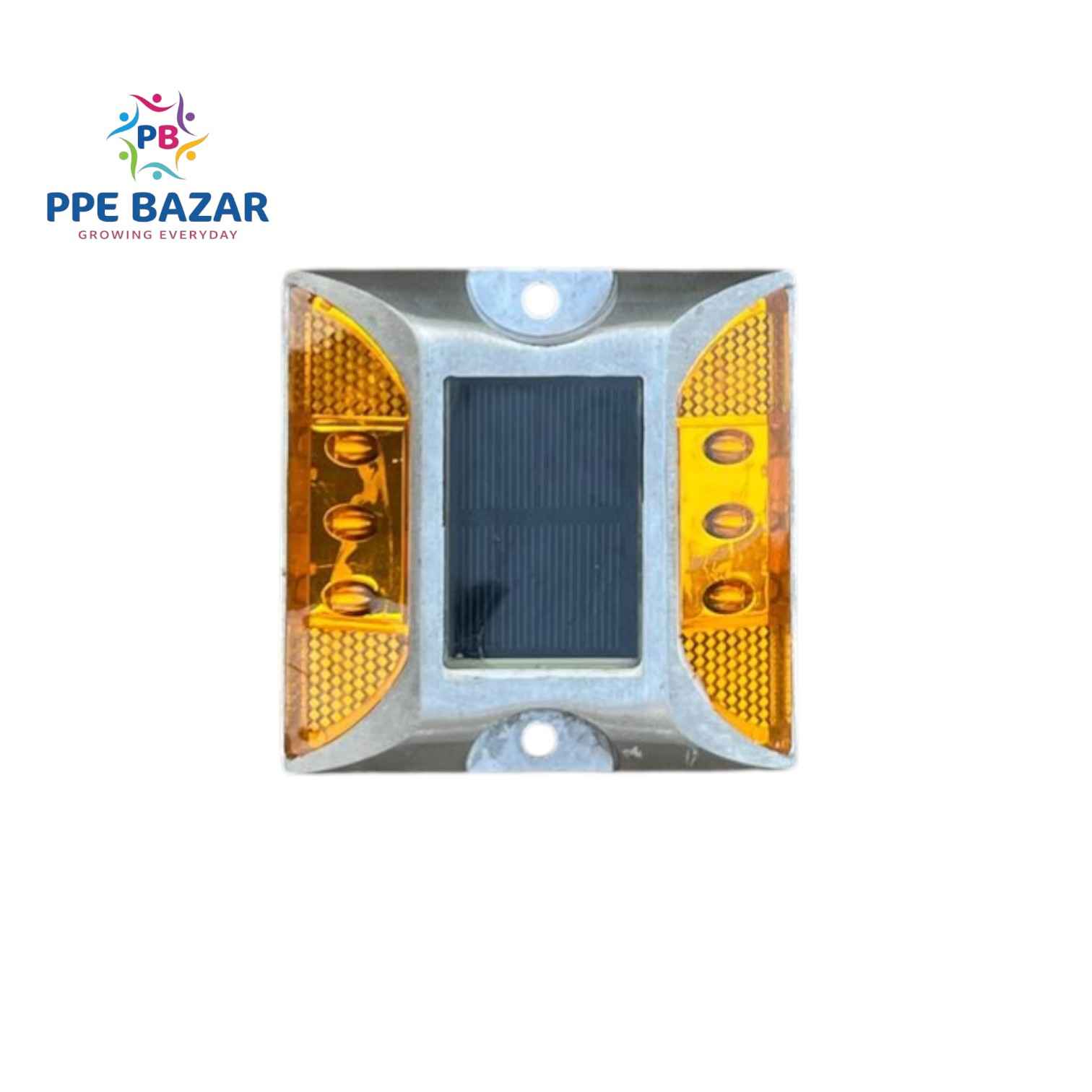

The AXN-SS-W/O-SHANK-YELLOW-I is a premium imported solar-powered road stud featuring yellow flashing LEDs — the internationally recognised colour for general road guidance, lane delineation, and cautionary marking. Built with a cast aluminium body and polycarbonate (PC) reflector, this shankless surface-mount stud delivers powerful autonomous illumination across a 500-metre visual range. Its flashing mode and yellow light output make it especially effective for centre-line marking, pedestrian crossings, and general highway lane guidance where amber/yellow visibility standards apply.
Variant Details
| Model Code |
LED Colour |
Origin |
LED Mode |
| AXN-SS-W/O-SHANK-YELLOW-I |
Yellow |
Imported |
Flashing |
Technical Specifications
| Parameter |
Details |
| Brand / Model |
AXN-SS-W/O-SHANK-YELLOW-I |
| Product Type |
Solar Road Stud |
| Origin |
Imported |
| Body Material |
Cast Aluminium & Plastic PC Reflector |
| Dimensions |
105mm × 105mm × 25mm |
| Solar Panel |
2V / 120mA (Mono Crystalline Silicon) |
| Maintenance Power |
1.2V / 600mAh |
| LED Mode |
Flashing |
| LED Configuration |
3 LEDs per side (TTL 6 Nos) |
| LED Colour |
Yellow |
| Standby Time |
72 Hours once fully charged |
| Working Temperature |
-20°C to +80°C |
| Visual Range |
500 Metres |
| Weight |
330 Grams |
| Water Resistance |
Waterproof — IP68 |
| Shank Type |
Without Shank (Flat Surface Mount) |
Solar & Power System Details
| Parameter |
Details |
| Solar Panel Type |
Mono Crystalline Silicon |
| Panel Voltage |
2V |
| Panel Current |
120mA |
| Battery Voltage |
1.2V |
| Battery Capacity |
600mAh |
| Charging Source |
Solar Daylight |
| Backup Duration |
72 Hours after full charge |
| Operating Mode |
Auto ON at dusk / OFF at dawn |
LED System Details
| Parameter |
Details |
| LEDs Per Side |
3 Nos |
| Total LEDs |
6 Nos (TTL) |
| LED Colour |
Yellow / Amber |
| Flash Mode |
Active Flashing — dynamic pulsing |
| Visibility Range |
500 Metres |
| Colour Significance |
Universal caution, guidance & lane marking |
Yellow LED — Colour Significance in Road Safety
| Context |
Meaning |
| International Standard |
Yellow = General road guidance and caution |
| Centre Line Marking |
Separates opposing traffic lanes |
| Lane Delineation |
Guides vehicles within lanes at night |
| Hazard Warning |
Alerts drivers to upcoming road changes |
| Pedestrian Zones |
Marks crossing points for safety |
| School Zones |
High-visibility cautionary marking |
Protection & Durability
| Parameter |
Details |
| IP Rating |
IP68 — Fully Waterproof & Submersion-Proof |
| Body Construction |
Cast Aluminium — crush and impact resistant |
| Temperature Range |
-20°C to +80°C |
| UV Resistance |
PC Reflector UV stable — no yellowing or hazing |
| Load Bearing |
Rated for heavy vehicular traffic |
| Surface Finish |
Corrosion and abrasion resistant |
Application Areas
| Environment |
Specific Use |
| National & State Highways |
Centre-line and lane delineation |
| Urban Roads |
Lane guidance and intersection marking |
| Pedestrian Crossings |
High-visibility crossing point marking |
| School & Hospital Zones |
Cautionary flashing yellow alert |
| Bridges & Flyovers |
Lane separation and edge marking |
| Sharp Curves & Bends |
Advance warning for directional changes |
| Fog-Prone Areas |
Yellow cuts through fog more effectively |
| Toll Plazas |
Lane channelisation and flow guidance |
| Airport Taxiways |
Taxiway centre and guidance marking |
Key Features & Benefits
- ✅ Yellow Flashing LEDs — Universally recognised caution and guidance colour
- ✅ Imported Quality — Meets international road safety and photometric standards
- ✅ Flashing Mode — Dynamic pulse pattern maximises driver attention
- ✅ Self-Powered Solar — Fully autonomous, zero wiring or electricity costs
- ✅ 72-Hour Backup — Continuous operation through cloudy and rainy periods
- ✅ IP68 Waterproof — Monsoon, flood, and submersion proof
- ✅ Cast Aluminium Body — Withstands heavy vehicle roll-over loads
- ✅ 500 Metre Visibility — Long-range warning suitable for high-speed roads
- ✅ Mono Crystalline Panel — Highest efficiency solar energy harvesting
- ✅ No Shank Required — Quick surface adhesive or bolt-down installation
