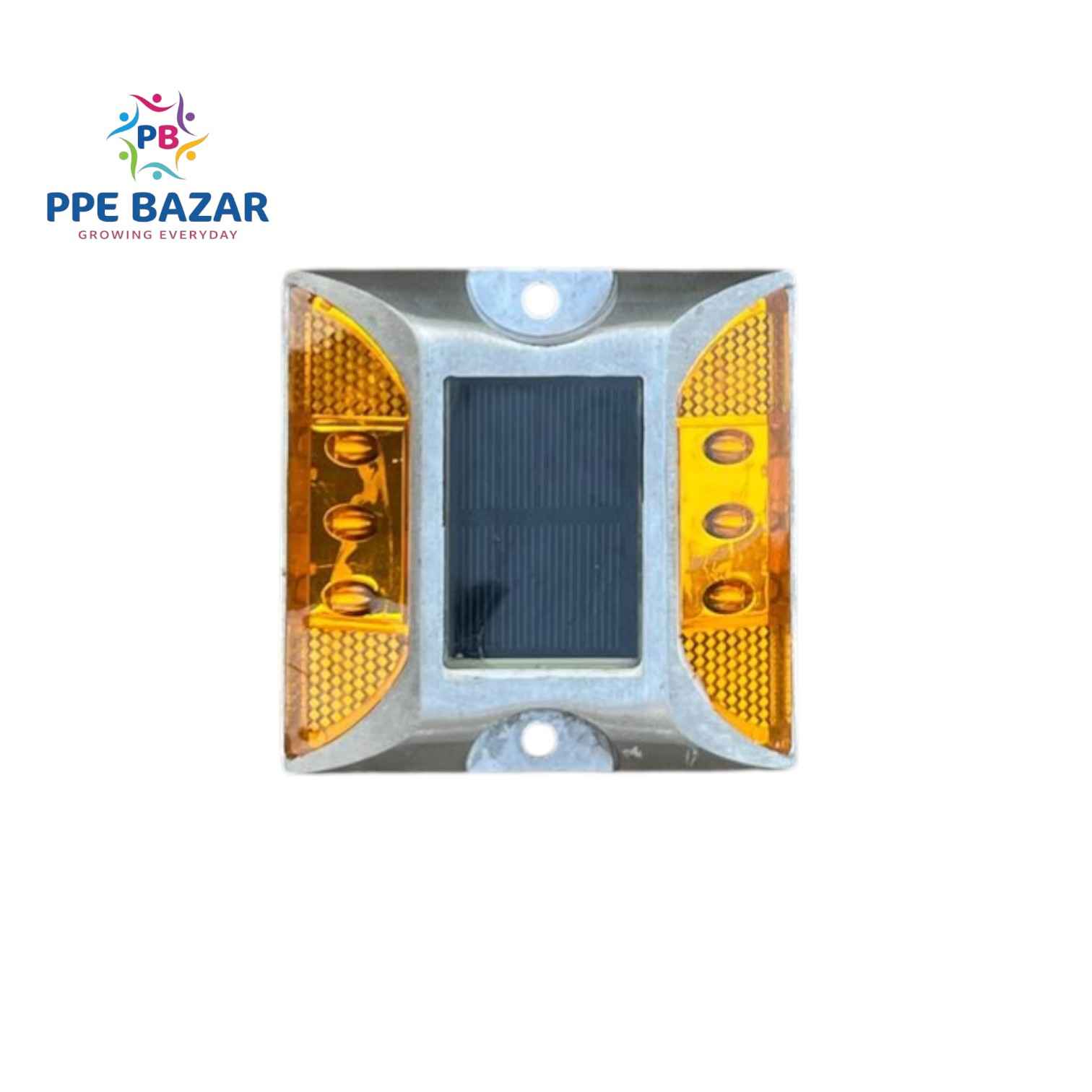

The AXN-SS-W/O-SHANK-YELLOW-L is a domestically manufactured solar-powered road stud combining the universal visibility of yellow flashing LEDs with the reliability of cast aluminium construction and IP68 waterproofing. As the Indian-made counterpart to the imported yellow variant, this stud delivers identical core performance specifications while offering the advantages of local manufacturing — easier procurement, faster serviceability, and support for the Make in India initiative. Its flashing yellow mode makes it the ideal choice for centre-line marking, cautionary zones, and general lane guidance across all Indian road and climatic conditions.
Variant Details
| Model Code |
LED Colour |
Origin |
LED Mode |
| AXN-SS-W/O-SHANK-YELLOW-L |
Yellow |
Indian (Local Make) |
Flashing |
Technical Specifications
| Parameter |
Details |
| Brand / Model |
AXN-SS-W/O-SHANK-YELLOW-L |
| Product Type |
Solar Road Stud |
| Origin |
Indian (Local Make) |
| Body Material |
Cast Aluminium & Plastic PC Reflector |
| Dimensions |
105mm × 105mm × 25mm |
| Solar Panel |
2V / 120mA (Mono Crystalline Silicon) |
| Maintenance Power |
1.2V / 600mAh |
| LED Mode |
Flashing |
| LED Configuration |
3 LEDs per side (TTL 6 Nos) |
| LED Colour |
Yellow |
| Standby Time |
72 Hours once fully charged |
| Working Temperature |
-20°C to +80°C |
| Visual Range |
500 Metres |
| Weight |
330 Grams |
| Water Resistance |
Waterproof — IP68 |
| Shank Type |
Without Shank (Flat Surface Mount) |
Solar & Power System Details
| Parameter |
Details |
| Solar Panel Type |
Mono Crystalline Silicon |
| Panel Voltage |
2V |
| Panel Current |
120mA |
| Battery Voltage |
1.2V |
| Battery Capacity |
600mAh |
| Charging Source |
Solar Daylight |
| Backup Duration |
72 Hours after full charge |
| Operating Mode |
Auto ON at dusk / OFF at dawn |
LED System Details
| Parameter |
Details |
| LEDs Per Side |
3 Nos |
| Total LEDs |
6 Nos (TTL) |
| LED Colour |
Yellow / Amber |
| Flash Mode |
Active Flashing — dynamic pulsing light |
| Visibility Range |
500 Metres |
| Fog Penetration |
Yellow wavelength cuts through fog and rain effectively |
Protection & Durability
| Parameter |
Details |
| IP Rating |
IP68 — Fully Waterproof & Submersion-Proof |
| Body Construction |
Cast Aluminium — high crush & impact resistance |
| Temperature Range |
-20°C to +80°C |
| UV Resistance |
PC Reflector UV stable — no degradation |
| Load Bearing |
Rated for heavy vehicular traffic |
| Monsoon Suitability |
IP68 rated — performs fully submerged |
Application Areas
| Environment |
Specific Use |
| National & State Highways |
Centre-line and lane boundary marking |
| Urban & City Roads |
Night-time lane guidance |
| Fog-Prone Highways |
Yellow penetrates fog for extended visibility |
| Monsoon Roads |
IP68 ensures all-weather reliability |
| School & Hospital Zones |
Cautionary flashing amber alert |
| Pedestrian Crossings |
High-contrast crossing point marking |
| Sharp Curves & Bends |
Advance directional warning |
| Bridges & Flyovers |
Lane separation and edge delineation |
| Toll Plazas |
Lane flow guidance and channelisation |
Key Features & Benefits
- ✅ Indian Manufactured — Make in India, easier local procurement & after-sales support
- ✅ Yellow Flashing LEDs — Universal caution colour with superior fog penetration
- ✅ Flashing Mode — Attention-grabbing dynamic pulse for maximum driver alertness
- ✅ Self-Powered Solar — Zero electricity cost, fully autonomous operation
- ✅ 72-Hour Backup — Reliable through extended monsoon cloud cover
- ✅ IP68 Waterproof — Fully submersion-proof for Indian monsoon conditions
- ✅ Cast Aluminium Body — Heavy vehicle load-bearing without deformation
- ✅ 500 Metre Visibility — Long-range warning for high-speed traffic
- ✅ Mono Crystalline Panel — Best-in-class solar energy conversion
- ✅ No Shank Required — Simple surface adhesive or bolt-down installation
