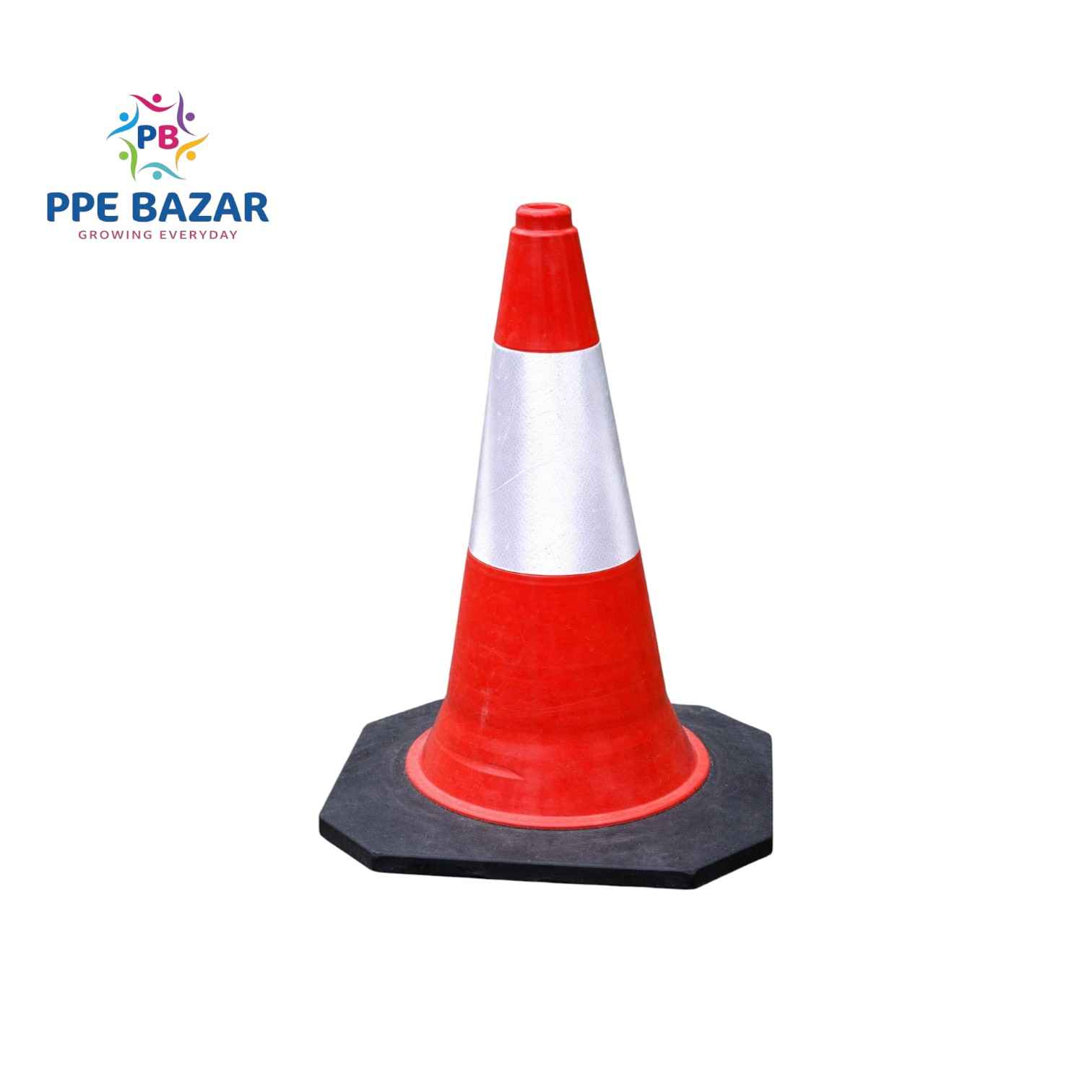

The AXN-RBTC-1000 Rubber Base Traffic Cone is a heavy-duty traffic safety cone designed for highway safety, construction zones, industrial areas, and traffic management applications. With a height of 1000 mm, this cone provides excellent visibility from long distances, making it ideal for high-speed roads and large work zones.

The cone is manufactured using durable flexible PVC/plastic material combined with a heavy rubber base, ensuring maximum stability even in windy conditions or high-traffic areas.

It features 12-inch reflective tape made from semi-virgin reflective material, which significantly improves visibility during nighttime and low-light conditions by reflecting vehicle headlights.

The large 520 × 520 mm rubber base and 5 kg weight provide strong ground grip and prevent the cone from tipping or sliding. A black “O” ring is included to secure the reflective sleeve or improve the structural hold of the cone components.

This cone is widely used in highways, road construction projects, airports, parking management, industrial plants, and emergency traffic diversion areas.

TECHNICAL SPECIFICATION

1. General Details

• Product Name: Rubber Base Traffic Cone

• Model No.: AXN-RBTC-1000

• Series: RBTC 1000

• Type: Heavy Duty Traffic Control Cone

• Application: Road safety, traffic diversion, construction zones

2. Dimensions

• Height: 1000 mm

• Base Size: 520 × 520 mm

• Base Type: Heavy square rubber base for maximum stability

3. Material

• Cone Body Material: Flexible PVC / Plastic

• Base Material: Heavy-duty molded rubber

• Material Features:

  • Flexible and impact resistant

  • Weather resistant

  • UV resistant

  • Long service life for outdoor use

4. Reflective Tape

• Tape Width: 12 inch

• Material: Semi-virgin reflective tape

• Purpose: Enhanced night visibility and safety

• Position: Around upper section of cone

5. Weight

• Total Weight: Approx. 5 kg

6. Additional Component

• Black O-Ring: Required for securing reflective sleeve/tape and improving assembly stability.

KEY FEATURES

• Extra height (1000 mm) for high visibility

• Heavy rubber base for maximum stability

• 12-inch reflective tape for night safety

• Durable flexible cone body

• Weather and UV resistant materials

• Suitable for high-speed road safety applications

APPLICATION AREAS

• Highways and expressways

• Road construction and maintenance

• Industrial safety zones

• Airports and toll plazas

• Parking and traffic management

• Emergency road diversion systems
