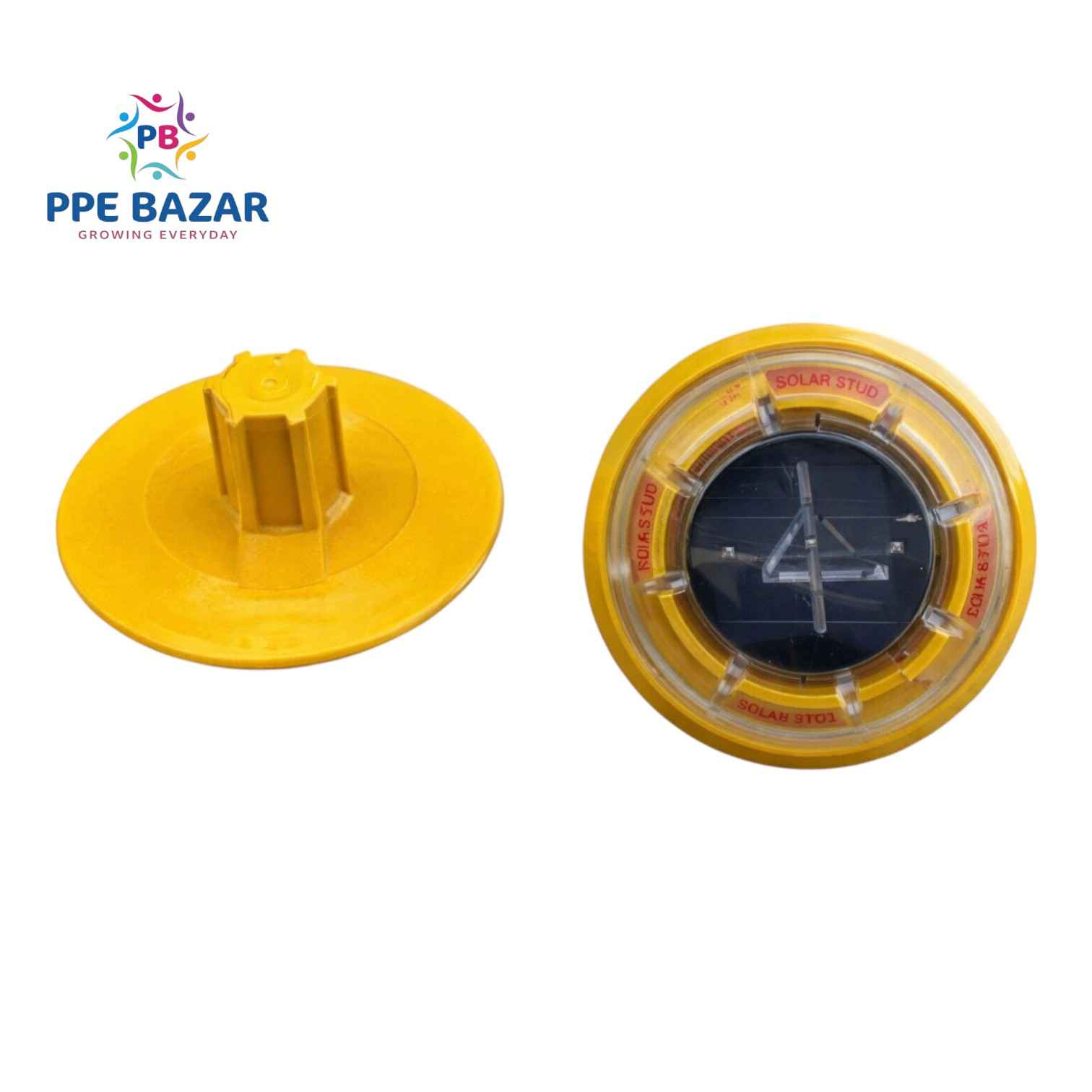

The Polycarbonate Solar Road Stud with Single Shank is a premium 360-degree illuminating solar pavement marker purpose-built for road edge and median installation. Unlike directional studs, this unit radiates light in a full circular pattern, ensuring visibility from every angle simultaneously. Featuring 8 Super Luminosity LEDs, a 3M reflective tape reflector system, and a robust 1800mAh NiMH battery, it delivers 6 months warranty-backed, maintenance-free performance. Designed exclusively for edge and median deployment, it creates a continuous, fully visible road boundary perimeter visible from all directions.
Variant Details
| Type |
Illumination |
Mount |
Warranty |
| Solar Stud with Single Shank |
360° All-Round |
Single Shank Embedded |
6 Months |
Technical Specifications
| Parameter |
Details |
| Product Type |
Polycarbonate Solar Road Stud |
| Body Material |
Polycarbonate |
| Shape |
Circular / Round |
| Diameter |
135mm |
| Thickness |
25mm |
| Solar Panel |
3.25V / 130mA |
| Battery Type |
NiMH (Nickel Metal Hydride) |
| Battery Voltage |
1.2V |
| Battery Capacity |
1800mAh |
| LED Type |
Super Luminosity LED |
| Total LEDs |
8 Nos |
| Illumination Pattern |
360° (All-Round) |
| Visibility Range |
100 Metres |
| Flashing Rate |
60–100 times/minute (adjustable) |
| Reflector |
3M Reflective Tape (8 Nos) |
| Mount Type |
Single Shank (Embedded) |
| Warranty |
6 Months |
| Installation Location |
Road Edges & Medians Only |
Solar & Power System Details
| Parameter |
Details |
| Solar Panel Voltage |
3.25V |
| Solar Panel Current |
130mA |
| Battery Chemistry |
NiMH (Nickel Metal Hydride) |
| Battery Voltage |
1.2V |
| Battery Capacity |
1800mAh |
| Charging Source |
Solar Daylight |
| Operating Mode |
Auto ON at dusk / OFF at dawn |
| NiMH Advantage |
High capacity, long cycle life, no memory effect |
LED & Optical System Details
| Parameter |
Details |
| LED Type |
Super Luminosity LED |
| Total LEDs |
8 Nos |
| Illumination Pattern |
360° Full Circle |
| Visibility Range |
100 Metres |
| Flashing Rate |
60–100 flashes/minute |
| Flash Adjustability |
Configurable as required |
| Advantage |
Visible from all directions simultaneously |
3M Reflective Tape — Reflector Details
| Feature |
Details |
| Brand |
3M |
| Quantity |
8 Nos (placed around full circumference) |
| Type |
Reflective Tape |
| Coverage |
360° passive reflectivity |
| Function |
Retro-reflects headlights from all directions |
| Passive Role |
Visible even without LED power |
| Brand Advantage |
3M tape meets international retroreflectivity standards |
360° Illumination — Why It Matters
| Feature |
360° Stud |
Directional Stud |
| Visibility Angle |
Full 360° circle |
2-way directional only |
| Visible From |
All directions simultaneously |
Front & rear only |
| Best Placement |
Edges & medians |
Lane centre lines |
| Traffic Coverage |
Multi-directional intersections |
Single-direction lanes |
| Median Use |
✅ Ideal |
❌ Limited |
| Edge Marking |
✅ Fully effective |
✅ Partially effective |
Installation Guidelines
| Parameter |
Details |
| Mount Type |
Single Shank — core drilled into road |
| Recommended Locations |
Road edges and medians ONLY |
| Surface Type |
Asphalt or concrete |
| Installation Method |
Core drill hole → insert shank → secure with epoxy |
| Spacing Recommendation |
As per IRC/road authority guidelines |
| Caution |
Not designed for centre-lane high-traffic embedding |
Protection & Durability
| Parameter |
Details |
| Body Material |
Polycarbonate — virtually unbreakable |
| Impact Resistance |
Very high — withstands edge vehicle loads |
| UV Stability |
Polycarbonate UV resistant — no yellowing |
| Weather Resistance |
Fully weatherproof — rain, heat, cold |
| Reflector Durability |
3M tape — long-lasting retroreflectivity |
| Warranty |
6 Months manufacturer warranty |
Application Areas
| Environment |
Specific Use |
| Road Edges |
Continuous boundary illumination |
| Central Medians |
Bidirectional median delineation |
| Highway Shoulders |
Edge drop-off warning |
| Roundabouts |
All-round perimeter marking |
| Bridges & Flyovers |
Edge and parapet line marking |
| Dividers |
Raised median visibility |
| Expressway Edges |
High-speed boundary delineation |
| Fog-Prone Areas |
360° visibility in all-direction fog |
Key Features & Benefits
- ✅ 360° Illumination — Visible from every direction, perfect for edges and medians
- ✅ 8 Super Luminosity LEDs — More LEDs than standard 6-LED studs for brighter all-round output
- ✅ 3M Reflective Tape (8 Nos) — Premium brand passive reflectivity around full circumference
- ✅ 1800mAh NiMH Battery — High-capacity, long-life power storage
- ✅ 3.25V / 130mA Solar Panel — High-efficiency rapid solar charging
- ✅ 100 Metre Visibility — Clear long-range detection
- ✅ Adjustable Flash Rate — 60–100/min configurable for zone requirements
- ✅ Polycarbonate Body — Durable, UV stable, impact resistant
- ✅ 6 Months Warranty — Manufacturer-backed reliability assurance
- ✅ Single Shank Mount — Secure, permanent road embedding
