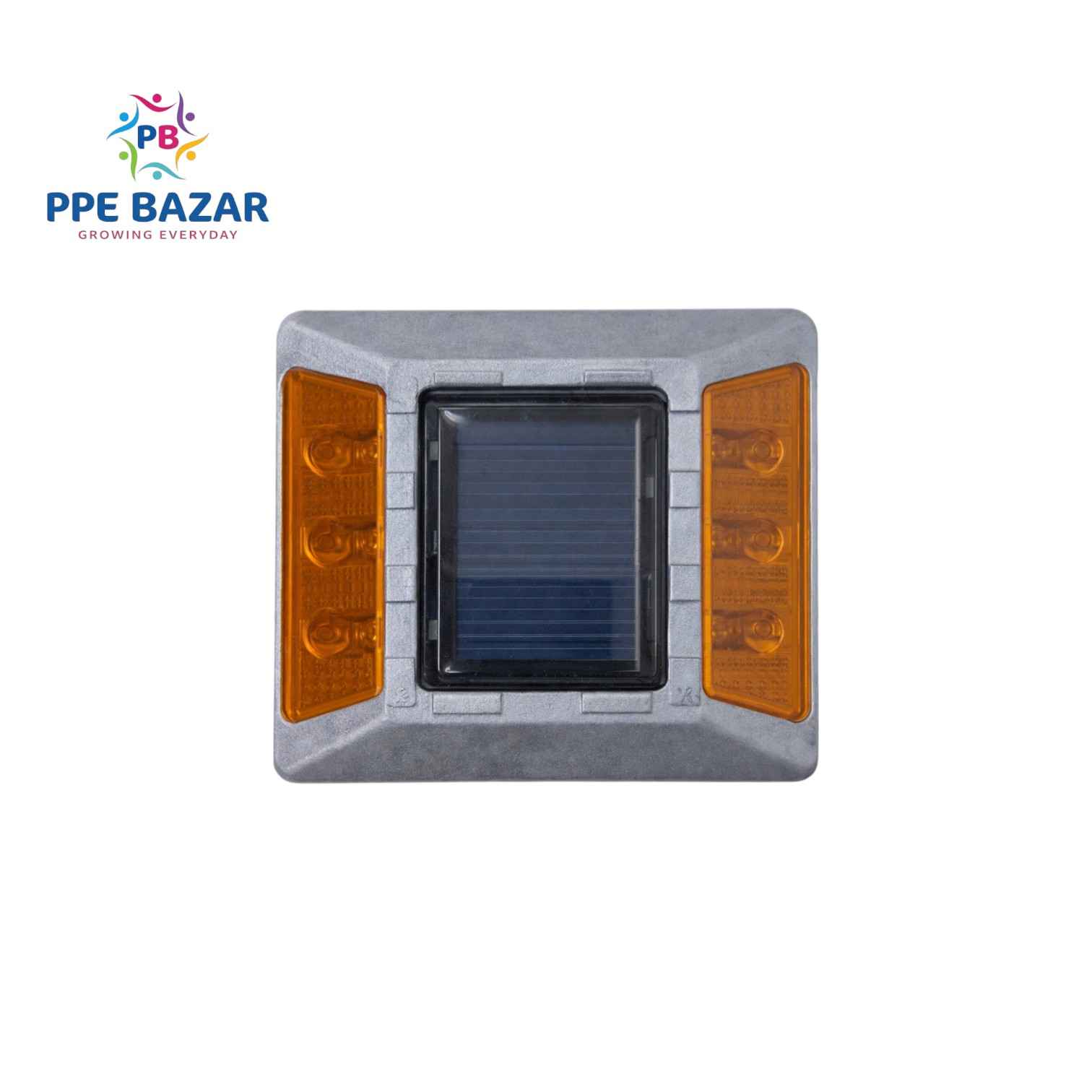

The Solar Road Stud with Shank — Yellow is a permanent, shank-embedded solar pavement marker delivering yellow Super Luminosity LED illumination combined with a prismatic 2-way reflective system. Built from polycarbonate and aluminium, powered by a robust 1800mAh NiMH battery and a 3.25V solar panel, this stud is engineered for long-term, maintenance-free operation on highways, expressways, and critical road infrastructure. The yellow LED colour makes it the definitive choice for centre-line marking, lane guidance, and cautionary delineation on permanently surfaced roads.
Variant Details
| Type |
LED Colour |
Reflector |
Mount |
| Solar Road Stud With Shank |
Yellow |
Prismatic 2-Way Reflective |
Shank (Embedded) |
Technical Specifications
| Parameter |
Details |
| Product Type |
Solar Road Stud with Shank |
| Body Material |
Polycarbonate & Aluminium |
| Dimensions |
128mm × 134mm × 23mm |
| Solar Panel |
3.25V / 130mA |
| Battery Type |
NiMH (Nickel Metal Hydride) |
| Battery Voltage |
1.2V |
| Battery Capacity |
1800mAh |
| LED Type |
Super Luminosity LED |
| LED Colour |
Yellow |
| Total LEDs |
6 Nos |
| Visibility Range |
40 Metres |
| Flashing Rate |
60–100 times/minute (adjustable) |
| Reflector Type |
Prismatic — 2 Way Reflective |
| Mount Type |
With Shank (Permanently Embedded) |
Solar & Power System Details
| Parameter |
Details |
| Solar Panel Voltage |
3.25V |
| Solar Panel Current |
130mA |
| Battery Chemistry |
NiMH (Nickel Metal Hydride) |
| Battery Voltage |
1.2V |
| Battery Capacity |
1800mAh |
| Charging Source |
Solar Daylight |
| Operating Mode |
Auto ON at dusk / OFF at dawn |
| NiMH Advantage |
High capacity, long cycle life, eco-friendly, no memory effect |
LED & Optical System Details
| Parameter |
Details |
| LED Type |
Super Luminosity LED |
| Total LEDs |
6 Nos |
| LED Colour |
Yellow / Amber |
| Visibility Range |
40 Metres |
| Flashing Rate |
60–100 flashes per minute |
| Flash Adjustability |
Configurable as required |
| Fog Penetration |
Yellow wavelength superior in fog, rain & dust |
| Reflector |
Prismatic 2-Way — passive visibility backup |
Prismatic 2-Way Reflector — Details
| Feature |
Details |
| Type |
Prismatic Reflector |
| Direction |
2-Way (Bidirectional) |
| Function |
Reflects headlights from both traffic directions |
| Passive Role |
Visible even without LED power via retro-reflection |
| Active + Passive |
Dual visibility system for maximum safety |
| Standard |
Meets retroreflectivity road safety requirements |
Yellow LED — Road Safety Significance
| Context |
Application |
| Centre Line Marking |
Separates opposing lanes of traffic |
| Lane Delineation |
Guides vehicles within their lanes at night |
| Cautionary Zones |
Universal amber — alerts to road changes ahead |
| Fog & Rain |
Yellow wavelength penetrates low-visibility conditions |
| School Zones |
High-contrast cautionary marking |
| Pedestrian Crossings |
Visible crossing point delineation |
| Expressways |
High-speed lane guidance and edge marking |
Shank Mount — Details & Advantages
| Feature |
Details |
| Mount Type |
Shank (Core drilled into road surface) |
| Stability |
Cannot be displaced by traffic or weather |
| Permanence |
Long-term fixed infrastructure installation |
| Installation |
Core drilled hole in asphalt or concrete |
| Suitable For |
Expressways, NHs, permanent road surfaces |
| vs Flat Mount |
Far superior anchorage under high-speed heavy traffic |
Protection & Durability
| Parameter |
Details |
| Body Material |
Polycarbonate + Aluminium |
| Impact Resistance |
Very high — polycarbonate virtually unbreakable |
| Corrosion Resistance |
Aluminium — fully rust and corrosion proof |
| Load Bearing |
Withstands heavy trucks and repeated vehicle loads |
| Weather Resistance |
Fully weatherproof — monsoon, heat, cold |
| UV Stability |
Polycarbonate UV resistant — no degradation |
Application Areas
| Environment |
Specific Use |
| National Highways & Expressways |
Permanent centre-line and lane marking |
| State Highways |
Bidirectional lane delineation |
| Fog-Prone Corridors |
Yellow penetrates fog for extended driver warning |
| Monsoon Roads |
All-weather waterproof performance |
| Bridges & Flyovers |
Lane separation and edge guidance |
| Sharp Curves & Bends |
Advance directional warning |
| Tunnels |
Lane guidance inside low-light tunnels |
| Toll Plazas |
Lane channelisation and flow management |
| Airport Taxiways |
Taxiway centreline and guidance marking |
Key Features & Benefits
- ✅ Yellow Super Luminosity LEDs — Brightest possible yellow output for lane guidance
- ✅ Shank Mount — Permanent, immovable road embedding for critical infrastructure
- ✅ 1800mAh NiMH Battery — Industry-leading capacity for extended backup
- ✅ Prismatic 2-Way Reflector — Active LED + passive reflective dual safety system
- ✅ 3.25V / 130mA Solar Panel — High-efficiency rapid charging
- ✅ 60–100 Flash/Min — Adjustable flashing for zone-specific requirements
- ✅ Polycarbonate + Aluminium Body — Maximum impact and corrosion resistance
- ✅ Auto Dusk-to-Dawn — Fully autonomous, zero manual intervention
- ✅ Fog & Rain Superiority — Yellow wavelength ideal for Indian monsoon conditions
- ✅ Long Service Life — NiMH ensures hundreds of reliable charge-discharge cycles
