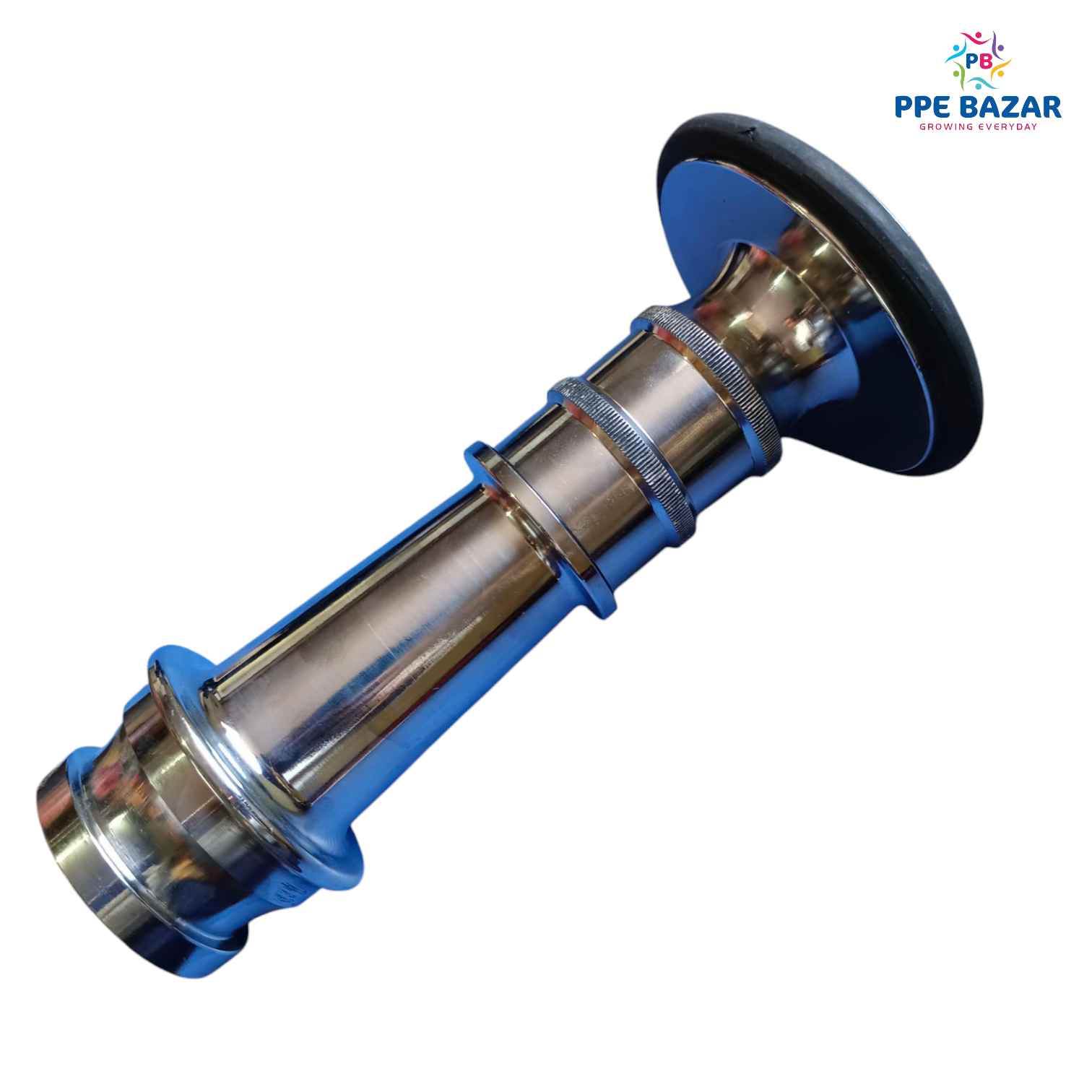

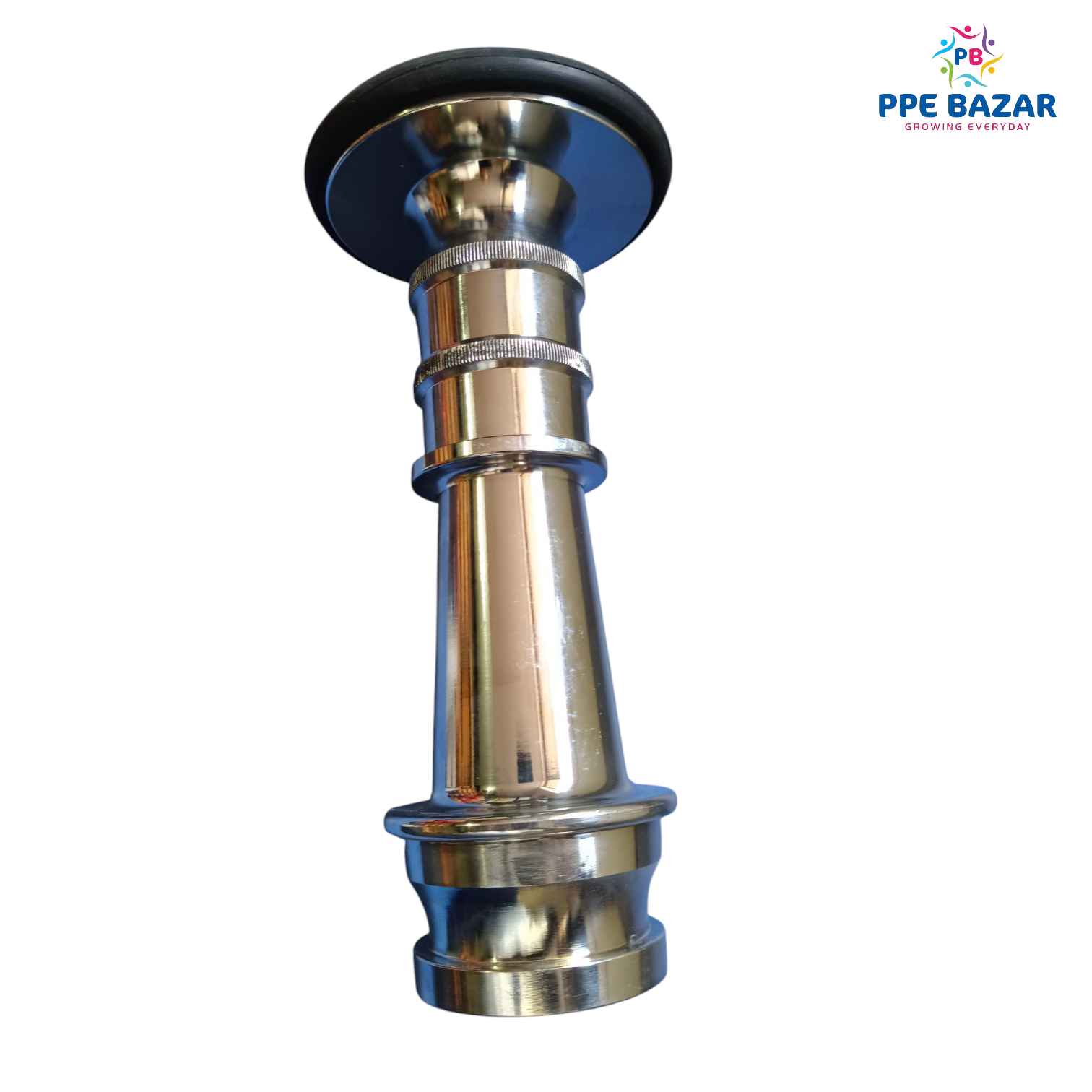

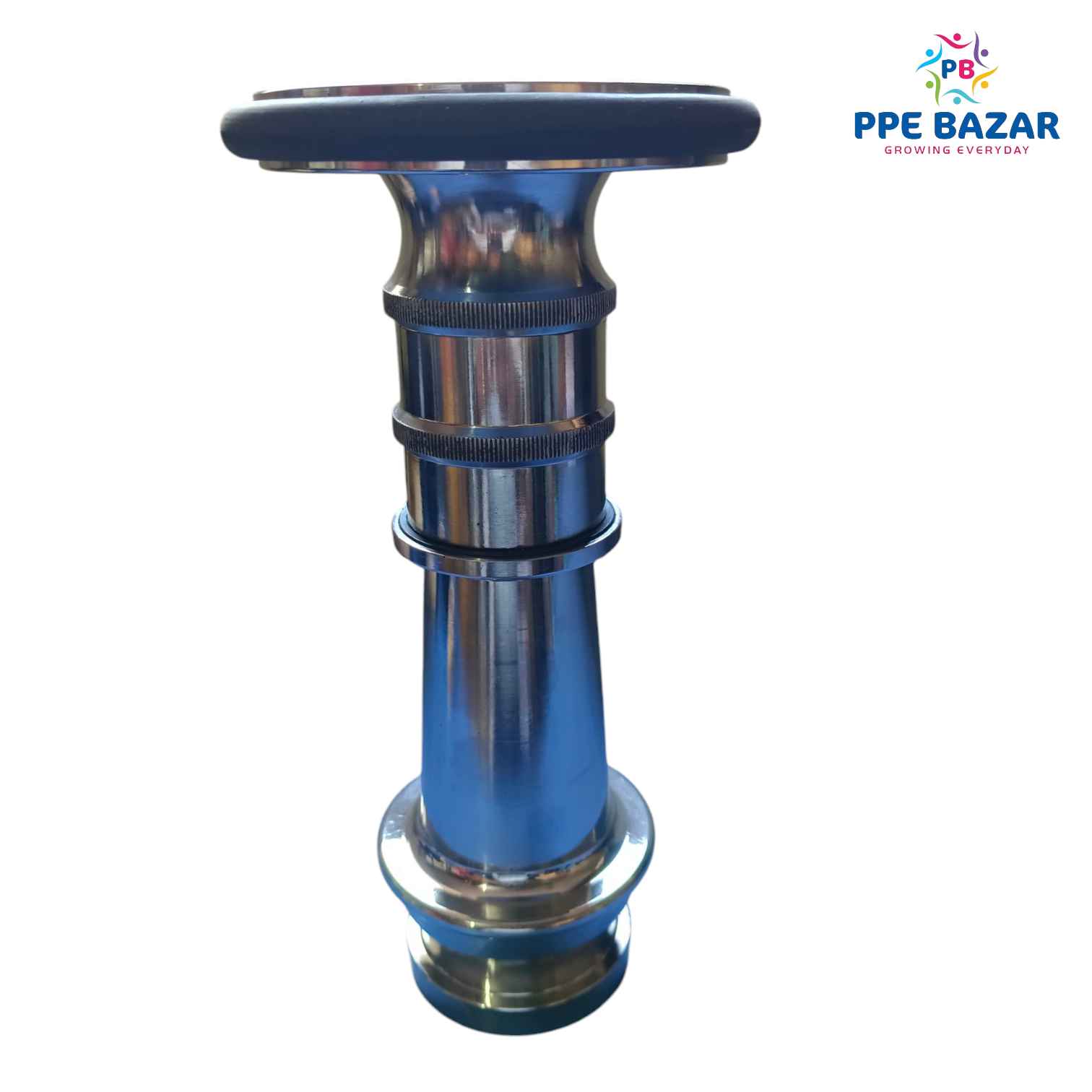

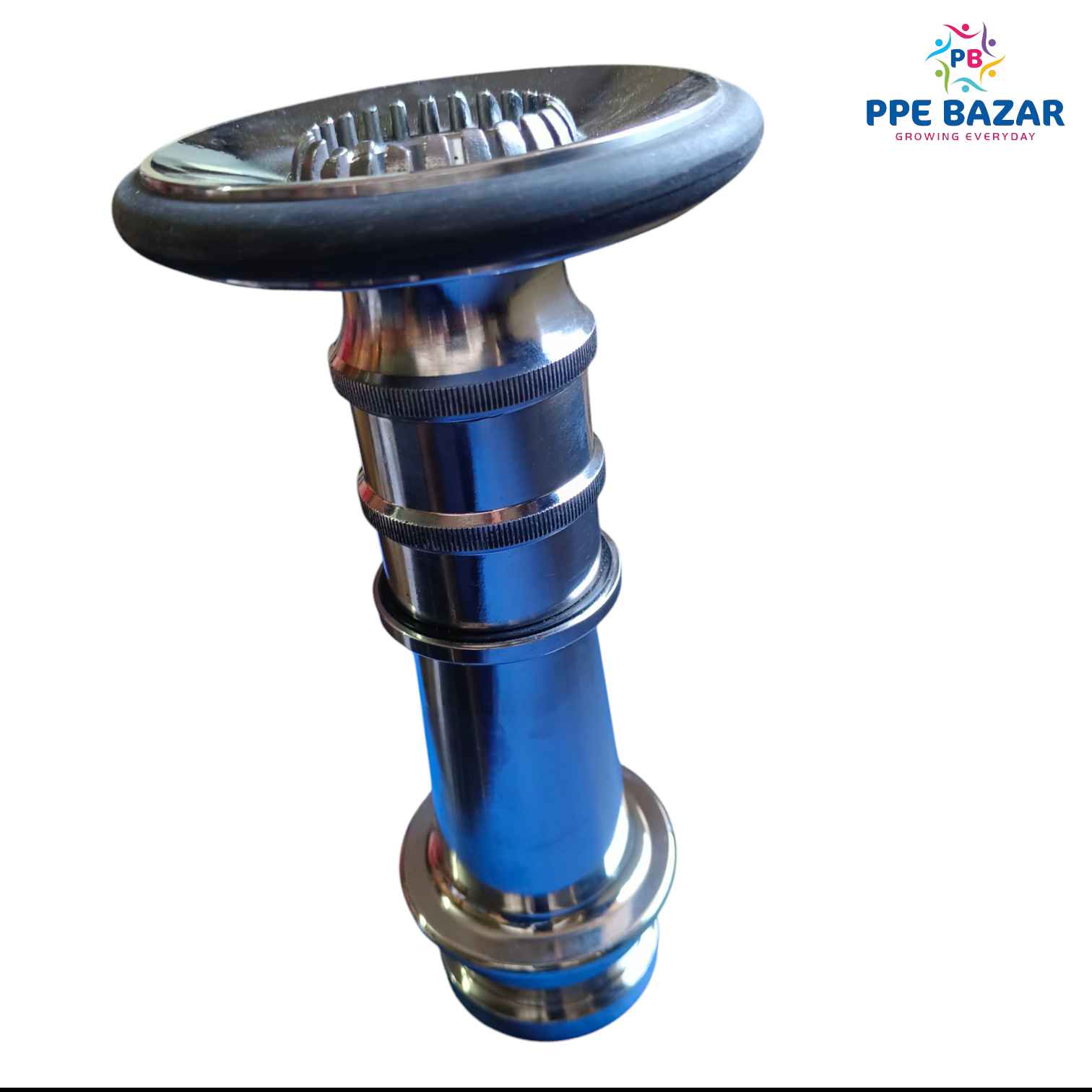

The Triple Purpose Nozzle is designed for use in firefighting applications, offering three operational modes:

• Hollow Jet: Focused high-pressure jet for maximum reach and impact.
• Spray (Fog) Mode: Wide-angle mist for heat absorption and protection.
• Shut-off Mode: Stops water flow when not in use.

Made from Stainless Steel (SS304), it ensures high durability, corrosion resistance, and reliability in harsh environments.

2. Technical Specifications:

• Standard Compliance: IS:2871
• Material: Stainless Steel SS304
• Inlet Connection: 63 mm Male Instantaneous (or as per requirement)
• Operating Modes:
  • Hollow Jet
  • Spray/Fog
  • Shut-off
• Flow Rate: Typically 350 to 450 LPM at 7 kg/cm² (varies as per model)
• Working Pressure: Up to 10 kg/cm²
• Nozzle Orifice: Designed for optimized flow performance
• Control Mechanism: Rotary or lever-type control for easy operation
• Weight: Approx. 2.5 - 3 kg (varies as per model)
• Finish: Polished stainless steel

3. Features:

✅ Multi-Functionality: Offers jet, spray, and shut-off functions in a single unit.
✅ Corrosion Resistant: SS304 construction ensures long life in harsh environments.
✅ Ergonomic Design: Easy handling and operation with a sturdy grip.
✅ High Performance: Delivers strong water projection with minimal pressure loss.
✅ Standard Compliance: Meets IS:2871 for reliable firefighting use.

4. Applications:

✔️ Fire Brigades & Emergency Services
✔️ Industrial Fire Protection
✔️ Marine & Offshore Fire Safety
✔️ Oil & Gas Refineries
✔️ Municipal Fire Departments
