Product Description:

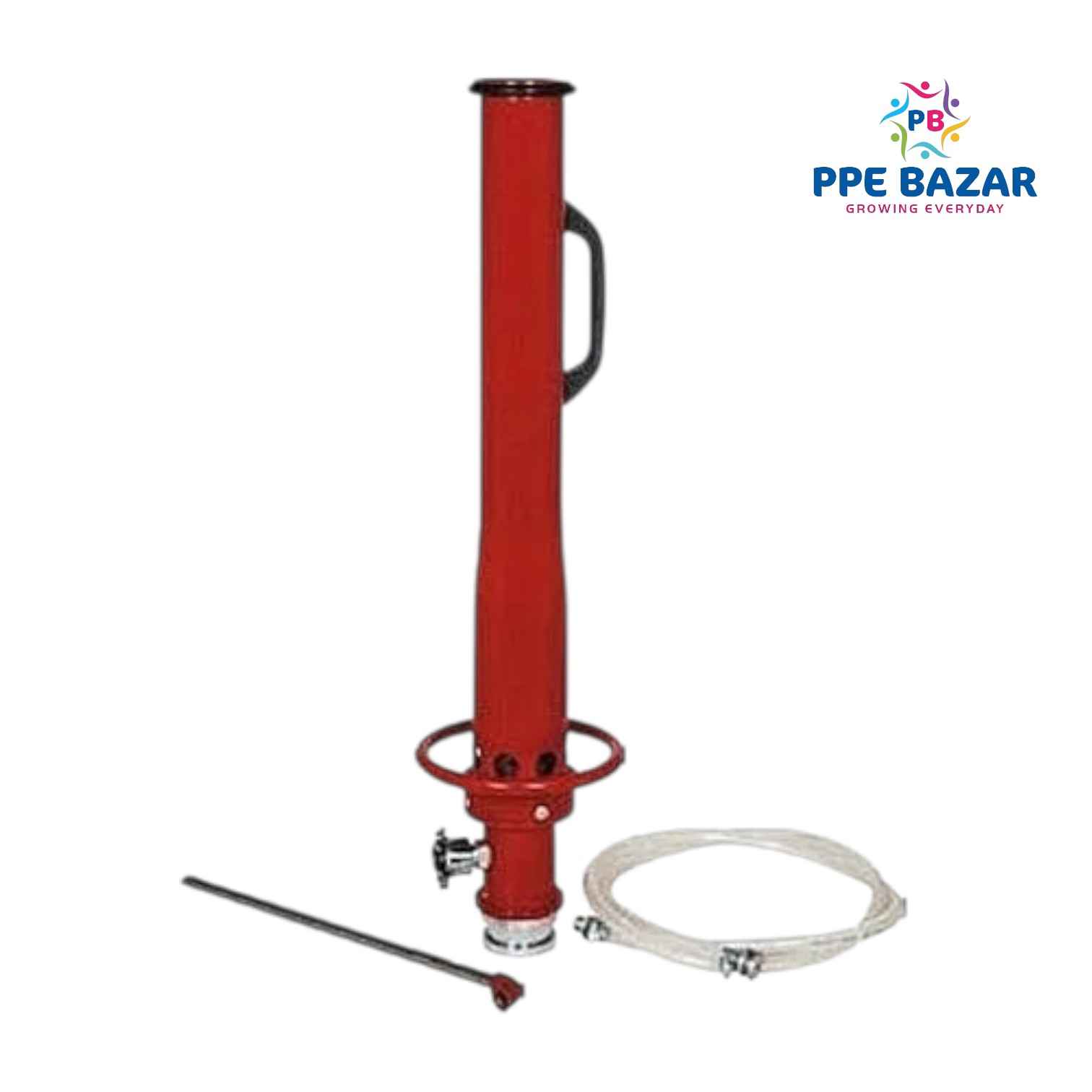

The FB-10X Foam Branch Pipe is a high-performance firefighting nozzle designed to produce and project mechanical foam for fire suppression applications. Manufactured by AAAG, this model is constructed using high-grade Aluminium Alloy, ensuring durability, corrosion resistance, and lightweight handling.
Ideal for use in industrial and municipal firefighting operations, the FB-10X is compatible with foam concentrate pick-up through an attached PVC pick-up tube, drawing foam solution directly for effective mixing and discharge.
Specifications:
| Parameter |
Details |
| Model |
FB-10X |
| Make |
AAAG |
| Material |
Aluminium Alloy (Heat-treated, corrosion-resistant) |
| Conformance Standard |
IS: 2097 – Specification for Foam Branch Pipes |
| Inlet Connection |
63 mm Female Instantaneous (as per IS: 903 standard) |
| Flow Capacity |
450 LPM (Litres per Minute) |
| Operating Pressure |
7 Kg/cm² (approx. 100 psi) |
| Foam Pick-up Arrangement |
Integrated with PVC pick-up tube (flexible, chemical-resistant) |
| Foam Type Compatibility |
Suitable for AFFF and protein-based foam concentrates |
| Finish |
Natural aluminium finish or epoxy powder-coated (optional) |
| Expansion Ratio |
Typically 6:1 to 8:1 (depending on foam type and operating conditions) |
| Weight |
Approx. 3.0 – 4.0 kg (with pick-up tube) |
| Application |
Class B fires – flammable liquids (e.g., oil, petrol, solvents) |
| Usage |
Used in fixed or portable foam firefighting setups |
| Accessories Included |
PVC pick-up tube with strainer |
Key Features:
- Durable aluminium alloy body for long life.
- Efficient foam expansion for wide coverage.
- Lightweight and easy to handle during operations.
- Standard 63 mm instantaneous inlet for quick connection.
- Compatible with standard foam inductors and systems.
- Designed for optimal performance as per IS: 2097.
