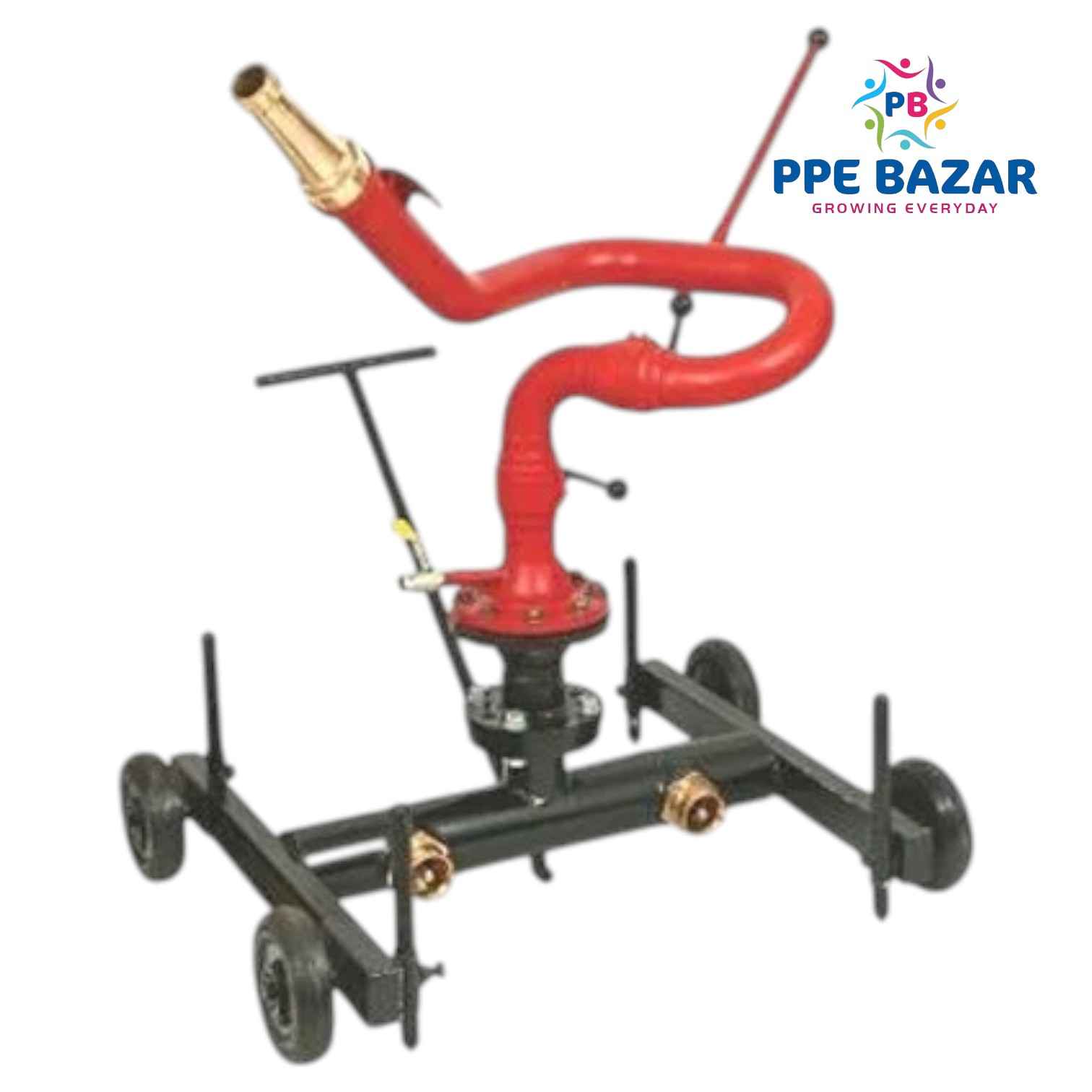

The AAAG Make Trolley-Mounted Water Monitor is a high-capacity, mobile firefighting solution, designed for industrial applications such as oil refineries, chemical plants, storage depots, and power plants. It is constructed from heavy-duty carbon steel, ensuring durability and long-term usage. The monitor features a 75mm barrel, a 100mm NB flanged inlet, and a flow discharge capacity of 1800–2500 LPM at 7 kg/cm², fully compliant with IS: 8442 Type ‘I’ standards and ISI marked.
The system is mounted on a sturdy, fabricated MS trolley with two 63mm Gunmetal (GM) Male Instantaneous Inlets and a lever-operated GM 38mm bore dia nozzle for efficient fire suppression. The trolley-mounted design allows for easy maneuverability, making it an ideal choice for rapid response in large industrial zones.
Specifications:
1. Trolley-Mounted Water Monitor
| Parameter |
Details |
| Make |
AAAG |
| Product Type |
Trolley-Mounted Water Monitor |
| Standard Compliance |
IS: 8442 Type ‘I’ – ISI Marked |
| Material of Construction |
Carbon Steel – Heavy-Duty, Corrosion Resistant |
| Nominal Barrel Size |
75 mm |
| Inlet Connection |
100 mm NB Flanged Inlet (PN16/ANSI/DIN standard) |
| Flow Discharge Capacity |
1800 – 2500 LPM at 7 kg/cm² pressure |
| Monitor Swivel Movement |
360° Horizontal Rotation & -45° to +75° Vertical Adjustment |
| Nozzle Type |
Lever-Operated Gunmetal (GM) Nozzle |
| Nozzle Bore Diameter |
38 mm |
| Inlets for Water Supply |
2 Nos. Gunmetal 63mm Male Instantaneous Inlets |
| Operating Mechanism |
Manual Operation with Lever Control |
2. Trolley Features
| Parameter |
Details |
| Material of Construction |
Mild Steel (MS) – Heavy-Duty Fabricated Trolley |
| Wheel Type |
Durable, High-Strength Rubber Wheels |
| Towing Facility |
Yes, for easy movement & quick deployment |
| Handling |
Manual push/pull with handles for maneuverability |
Key Features:
✅ Portable & Mobile Fire Protection: Trolley-mounted design enables easy movement for quick fire response.
✅ High Flow & Extended Reach: Delivers 1800-2500 LPM at 7 kg/cm², ensuring efficient firefighting.
✅ Heavy-Duty Carbon Steel Monitor: Provides long-lasting durability and corrosion resistance.
✅ Gunmetal Nozzle with Lever Operation: Ensures smooth and precise water jet control.
✅ Dual Water Inlets: Two 63mm Male Instantaneous Inlets allow efficient water supply.
✅ 360° Rotation & Adjustable Elevation: Ensures wider area coverage and flexible targeting.
✅ ISI Marked & Compliant with IS: 8442 Type ‘I’ for safety and quality assurance.
Applications:
✔ Oil & Gas Refineries
✔ Petrochemical & Chemical Plants
✔ Storage Depots & Tank Farms
✔ Airports & Marine Terminals
✔ Industrial Fire Safety Zones
