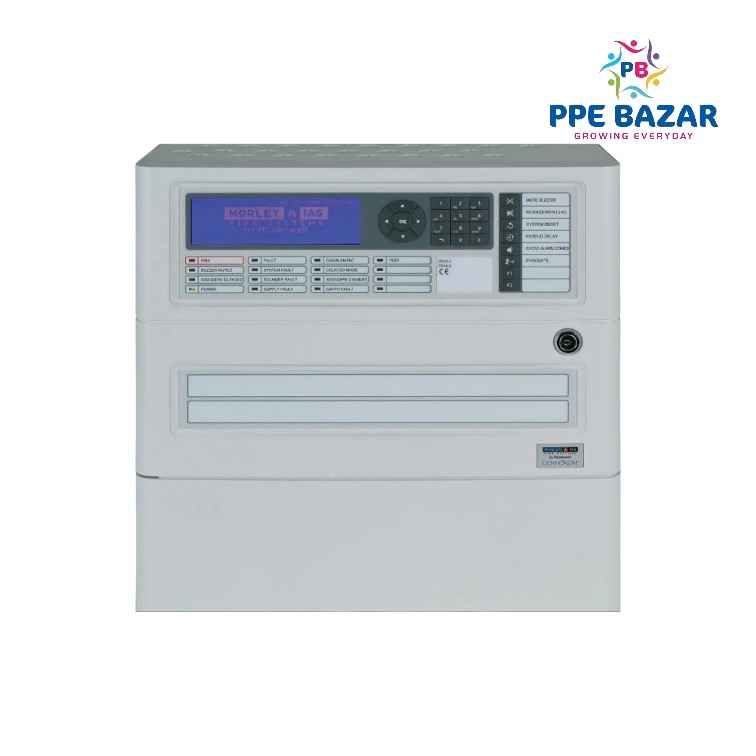

The Morley-IAS DXc1 (part number 714/001/115) is a single-loop, addressable fire alarm control panel designed for small to medium-sized applications. Key specifications and features include:

• Loop Capacity: Supports one loop with a capacity of up to 99 detectors and 99 modules, accommodating a total of 198 devices.
• Protocols Supported: Compatible with multiple protocols, including Apollo, Hochiki, and Morley-IAS, allowing flexibility in device selection.
• Display and Interface: Equipped with a large, clear LCD display for easy system status monitoring and user-friendly navigation.
• Sounder Circuits: Includes two monitored sounder circuits, each capable of delivering up to 1A, ensuring effective alarm signaling.
• Power Supply: Features a 2A power supply unit, providing reliable power to the system and connected devices.
• Relays and Outputs:
  • One general alarm relay and one fault relay for interfacing with external systems.
  • One programmable relay for customized control functions.
  • Fixed auxiliary output and a resettable 24V DC 250mA output for powering ancillary equipment.
• Inputs: Two programmable inputs for integrating external devices or initiating specific system actions.
• Networking: Capable of networking with up to 16 panels, supporting true peer-to-peer communication and fault tolerance for enhanced system reliability.
• Compliance: Meets international standards, including EN54-2 and EN54-4, ensuring adherence to fire safety regulations.
• Dimensions: Measures 260mm in height, 390mm in width, and 147mm in depth, facilitating convenient installation in various environments.

The DXc1 panel's modular design and comprehensive feature set make it a versatile solution for diverse fire detection and alarm system requirements.
