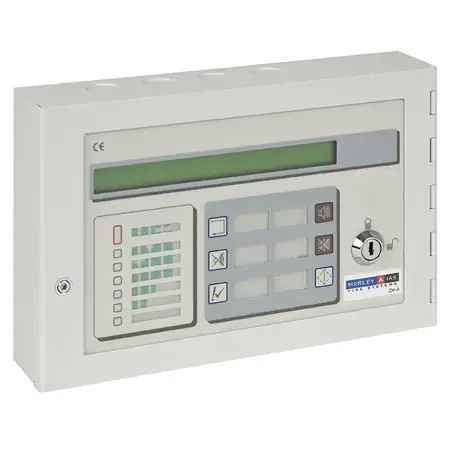

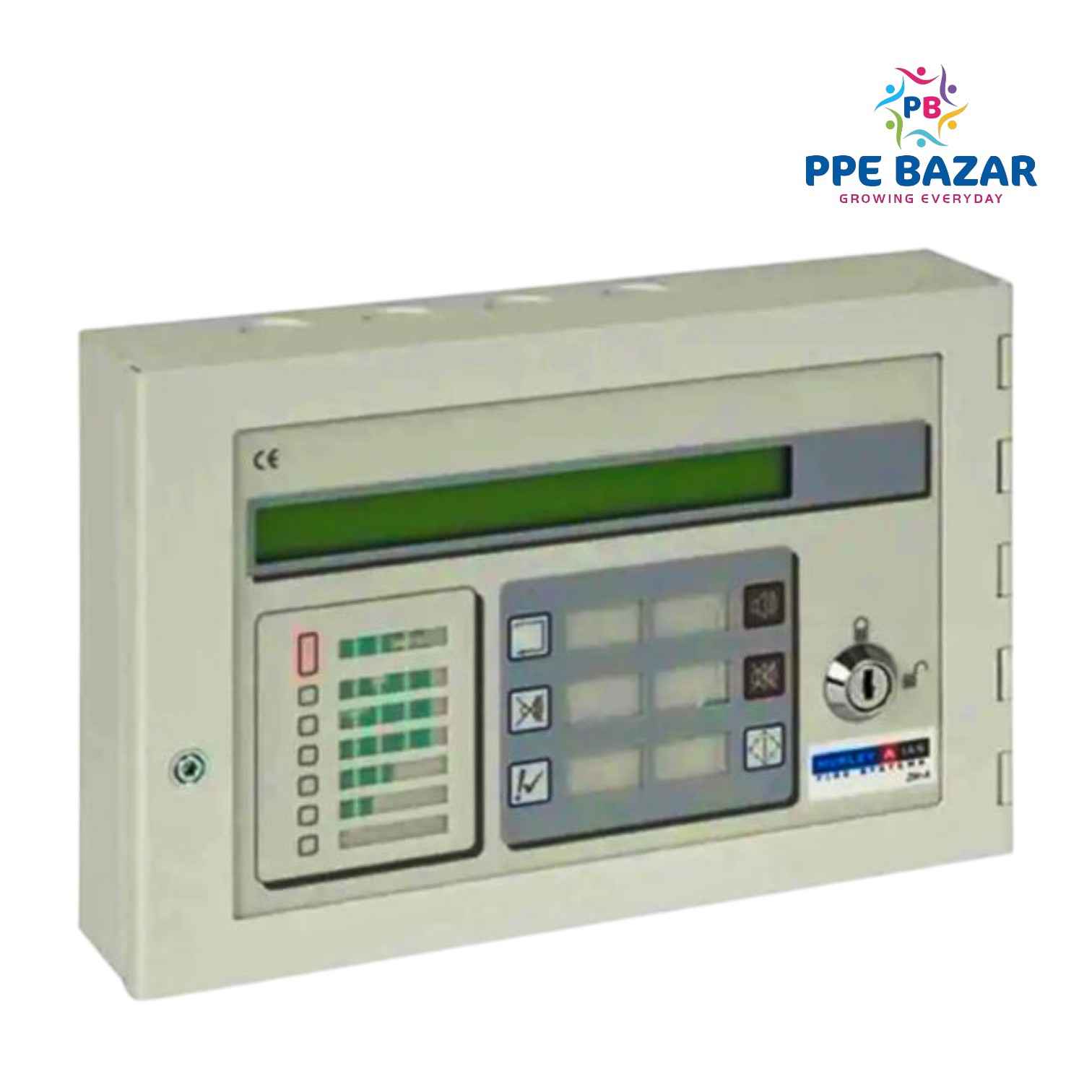

The Morley-IAS ZXr-A Active Repeater Panel (model 709-601-001) is a compact remote control unit designed to extend the functionality of Morley-IAS intelligent multi-protocol fire alarm control panels. It provides both control capabilities and status indications, allowing for enhanced monitoring and management of fire alarm systems.

Key Features:

• Compatibility: Works seamlessly with all Morley-IAS intelligent multi-protocol fire alarm control panels.
• Connectivity: Connects via the RS485 peripheral bus.
• Display: Features an 80-character backlit adjustable alphanumeric LCD display for clear status information.
• Status Indicators: Equipped with seven general status LEDs to indicate system conditions.
• Control Functions: Includes controls for system reset, accept, mute, silence alarms, and self-test, all activated by a key-operated "Access Enable" switch.
• Self-Test Sequence: Incorporates an integral self-test sequence to verify the functionality of control buttons, key-switch, and display indicators.
• Power Supply: Requires an external 24V DC power supply, which can be sourced from the control panel's auxiliary supply or another suitable DC power source.

Specifications:

• Operating Voltage: 18–32 V DC
• Current Consumption: Quiescent current of 90 mA
• Operating Temperature: -4°C to 45°C
• Humidity: 10–93% non-condensing
• Dimensions: 165 mm (H) x 254 mm (W) x 50 mm (D)
• Weight: 1.7 kg

The ZXr-A Active Repeater Panel enhances the flexibility and functionality of fire alarm systems by providing remote control and status indication capabilities, making it suitable for strategic locations within an installation.
