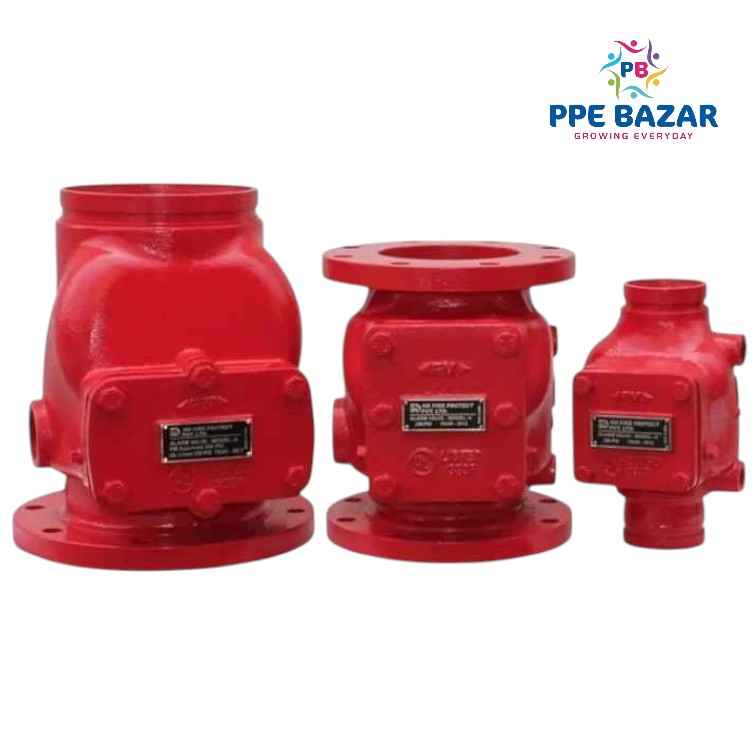

The Sprinkler Alarm Valve is a crucial component in fire protection systems, specifically designed to control water flow to fire sprinklers and activate alarms during fire emergencies. Made from robust materials and finished in fire red (RAL 3001), this valve ensures dependable performance in demanding conditions. It comes with both flanged and grooved connection options, and is ISI certified, UL listed, and FM approved, ensuring compliance with international fire safety standards. Suitable for both mechanical and electrical activation, this valve is widely used in residential, commercial, and industrial fire sprinkler systems.

Key Features:

• Valve Type: H Type

• Usage/Application: Fire Safety

• Connection Type: Flange (ANSI B16.42 #150)

• Finish: Red RAL 3001 (Smooth Finishing)

• Power Source: Electrical and Mechanical

• Pressure Rating:

  • Working Pressure: 17 bar

  • Testing Pressure: 17.1 bar

  • Factory Hydrostatic Test: 35 bar (500 psi)

  • Burst Pressure: 20 bar

• Voltage: 24V

• ISI Certified: Yes

• Portable: Yes

• Country of Origin: Made in India

Available Sizes and Dimensions:

Note: For 6" (150NB) size, standard supply is 168.3mm OD pipe groove. For 165.1mm groove, specify during order.

Trim & Fittings:

• Galvanized fittings

• Brass valves

• Matching flange drilling to ANSI B16.5 #150

Compliance & Standards:

• UL Listed

• FM Approved

• ISI Certified

• Conforms to NFPA 13 and NFPA 25 fire protection system standards
