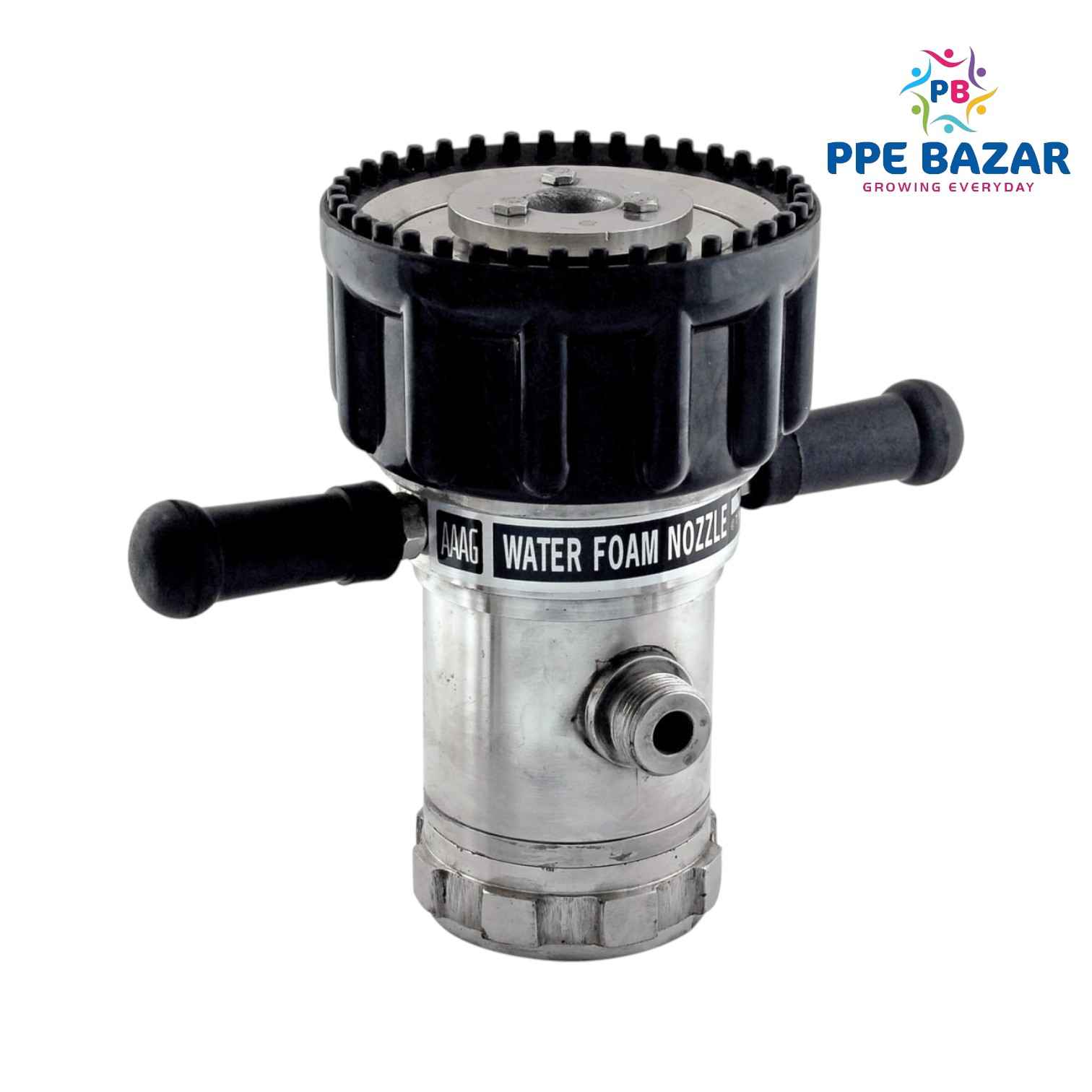

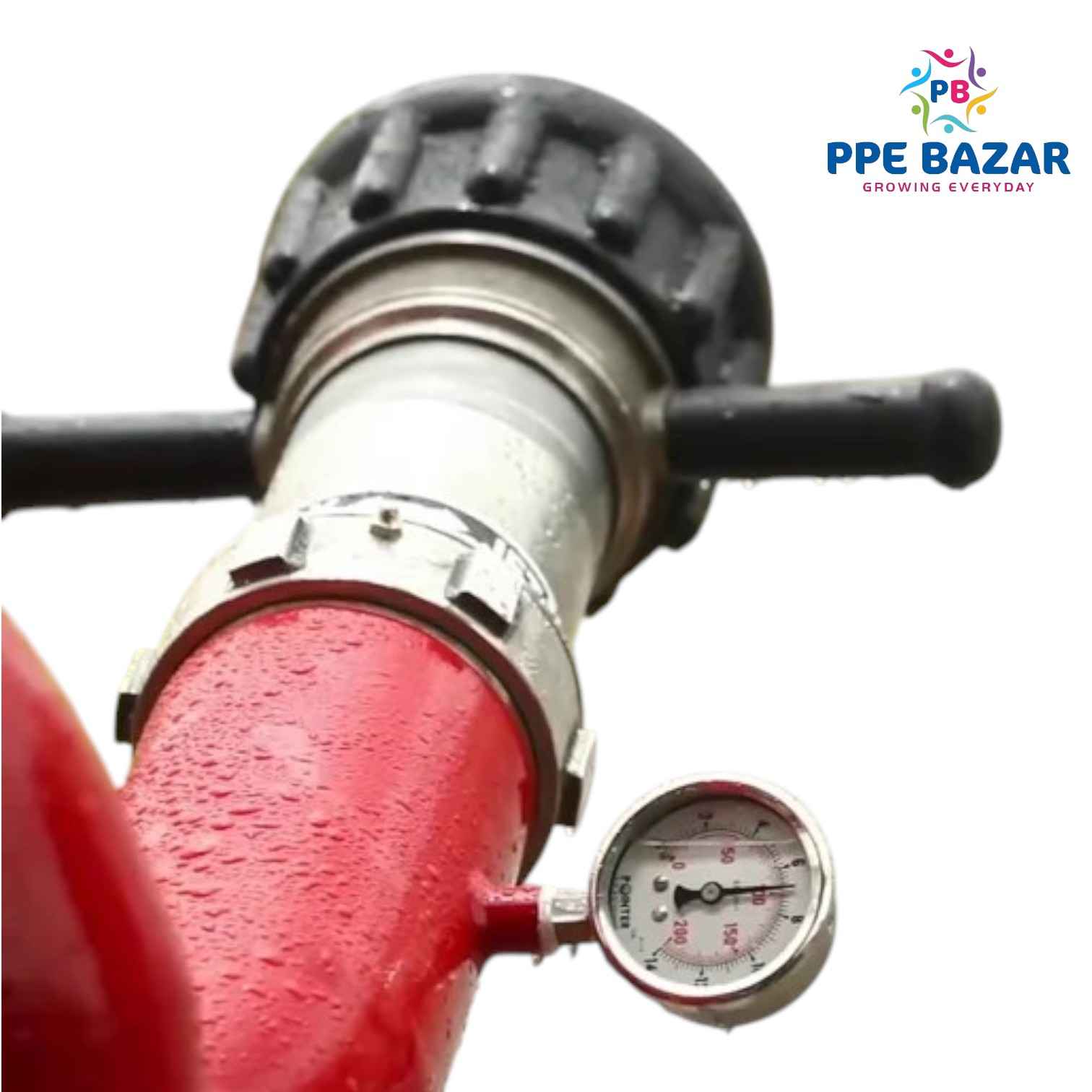

The Aqua Foam Nozzle is a high-performance firefighting nozzle designed for aspirating foam concentrate and mixing it with water to combat Class A (solid combustibles) and Class B (flammable liquids) fires. It features an adjustable foam/water spray pattern, allowing firefighters to switch between jet, fog, and foam application modes. Ideal for industrial facilities, airports, and petrochemical sites.
Technical Specifications
1. General Specifications
| Parameter |
Specification |
| Material |
Anodized Aluminum (Body) / Stainless Steel (Internal Parts) |
| Connection Type |
1.5" / 2" NH, BSP, or Storz (Selectable) |
| Flow Rate (Water) |
95–380 GPM (360–1,440 LPM) |
| Foam Proportioning |
0.1%–6% (Adjustable for AFFF, AR-AFFF, FFFP) |
| Operating Pressure |
50–100 PSI (3.5–7 bar) |
| Max Reach (Jet Mode) |
40–60m (130–200 ft) |
| Weight |
2.2 kg (4.9 lbs) |
2. Foam Performance
✔ Aspiration Efficiency – Optimal air entrainment for high-expansion foam
✔ Adjustable Foam Ratio – Compatible with AFFF, AR-AFFF, FFFP concentrates
✔ Expansion Ratio | 8:1 (Low-Expansion) to 20:1 (High-Expansion)
3. Spray Patterns
- Jet Mode – Long-range fire attack
- Fog Mode – Wide-angle cooling/protection
- Foam Mode – Aspirated foam blanket (Class B suppression)
4. Standards & Certifications
- NFPA 1964 (Fire Hose Nozzles)
- UL/FM Approved (Foam Nozzle Standards)
- EN 1568 (Foam Equipment Compliance)
Applications
✔ Oil Refineries & Chemical Plants (Class B Fires)
✔ Airport Crash Rescue (AFFF for fuel fires)
✔ Warehouse Firefighting (Class A + Foam Combination)
✔ Marine Fire Protection (Shipboard/pier fires)
Why Choose the Aqua Foam Nozzle?
✅ Multi-Pattern Control – Switch between jet/fog/foam instantly
✅ Corrosion-Resistant – Anodized aluminum + stainless steel
✅ Lightweight & Ergonomic – Easy handling during emergencies
