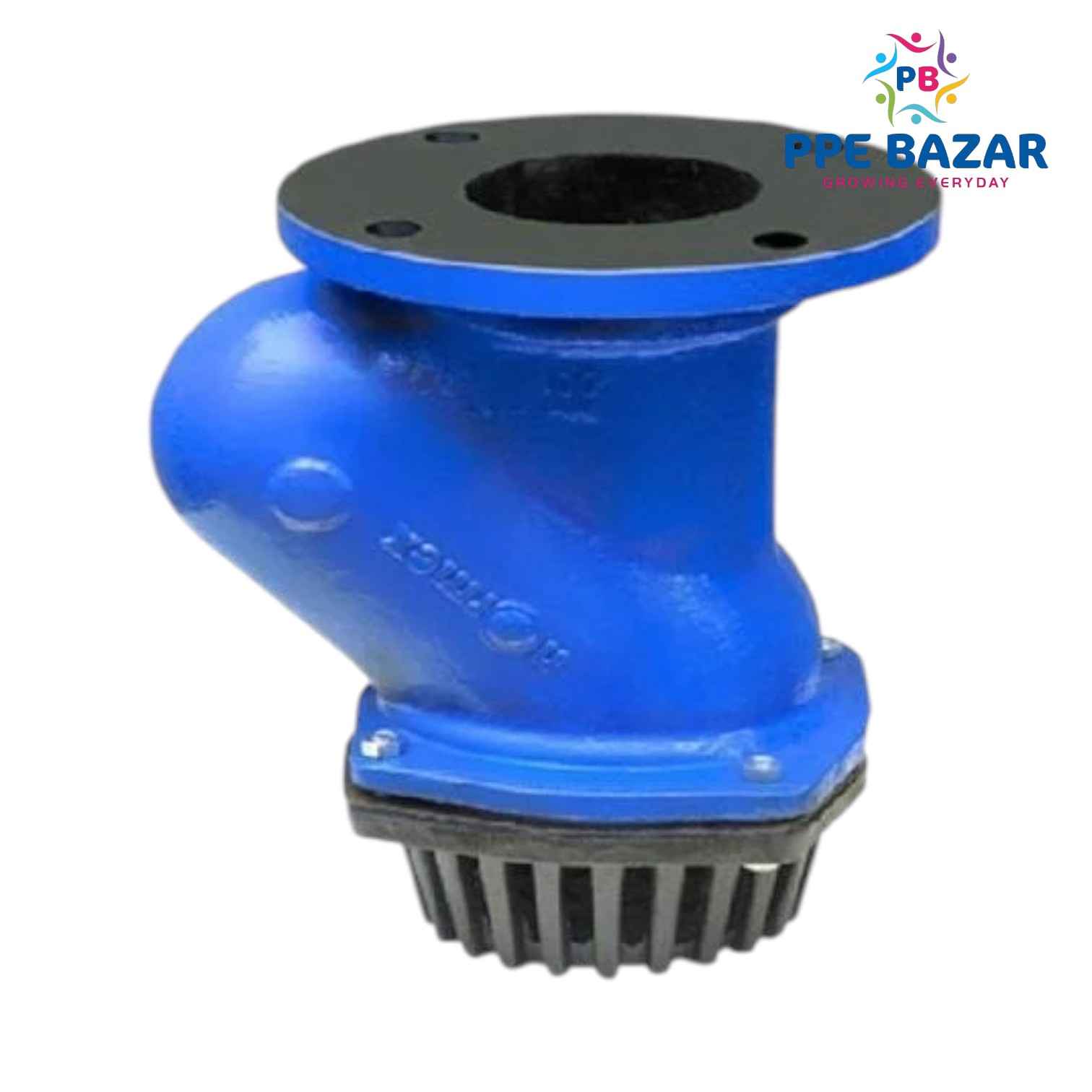

CI Ball Foot Valve Flange End Size : 3" , Body/Strainer : Cast Iron, Fasteners : Carbon Steel, Ball : Nitrile Reinforced, Sealimg Ring : Nitrile, Fasteners : Carbon Steel, Paint : Enamel Paint, End Connection : Threaded
0
0 Reviews0 Orders 0 Wish listed
₹4,621.45 + GST
MRP ₹5,437.0015 % Off
The 3” Cast Iron Ball Foot Valve is a non-return suction-side valve designed to maintain pump priming by preventing reverse flow. It features a robust cast iron body and strainer, a nitrile-reinforced ball, and a nitrile sealing ring, making it suitable for use in water and light chemical applications. The valve is secured with carbon steel fasteners and is protected with enamel paint for enhanced corrosion resistance. Though the valve body is flanged for pipeline mounting, the end connection is threaded, making it versatile for various piping arrangements.
Technical Specifications:
Component
Specification
Valve Type
Ball Foot Valve (Non-return type)
Size
3 inch (80 mm NB)
Body Material
Cast Iron (CI)
Strainer Material
Cast Iron – Integral to valve body
Ball Material
Nitrile Rubber Reinforced
Sealing Ring
Nitrile Rubber (NBR)
Fasteners
Carbon Steel
Paint/Finish
Enamel Paint (for corrosion resistance)
End Connection
Threaded (Screwed type)
Flanged Mounting
Provided for pipeline attachment
Working Pressure
Up to 10 bar (150 psi)
Temperature Range
-10°C to +80°C (depending on medium compatibility)
Installation Position
Vertical (Submerged at suction point)
Flow Direction
Uni-directional (upward through strainer and valve outlet)
Key Features:
✅ Flanged Body + Threaded End Connection – Flexible for varied pipe installations ✅ Durable CI Construction – Suitable for industrial/agricultural pumping systems ✅ Nitrile-Reinforced Ball & Seal – Resistant to fuels, light chemicals, and water ✅ Enamel Coated Finish – Long-term protection from rust and environmental wear ✅ Heavy-Duty Carbon Steel Fasteners – Ensure secure, leak-proof operation ✅ Low Pressure Drop Design – Allows efficient suction flow for pumps
Typical Applications:
✔ Water Treatment Plants ✔ Industrial and Municipal Pumping Stations ✔ Agricultural Irrigation Pumps ✔ Fire Pump Suctions ✔ Chemical Process Pumps (where NBR is compatible)
