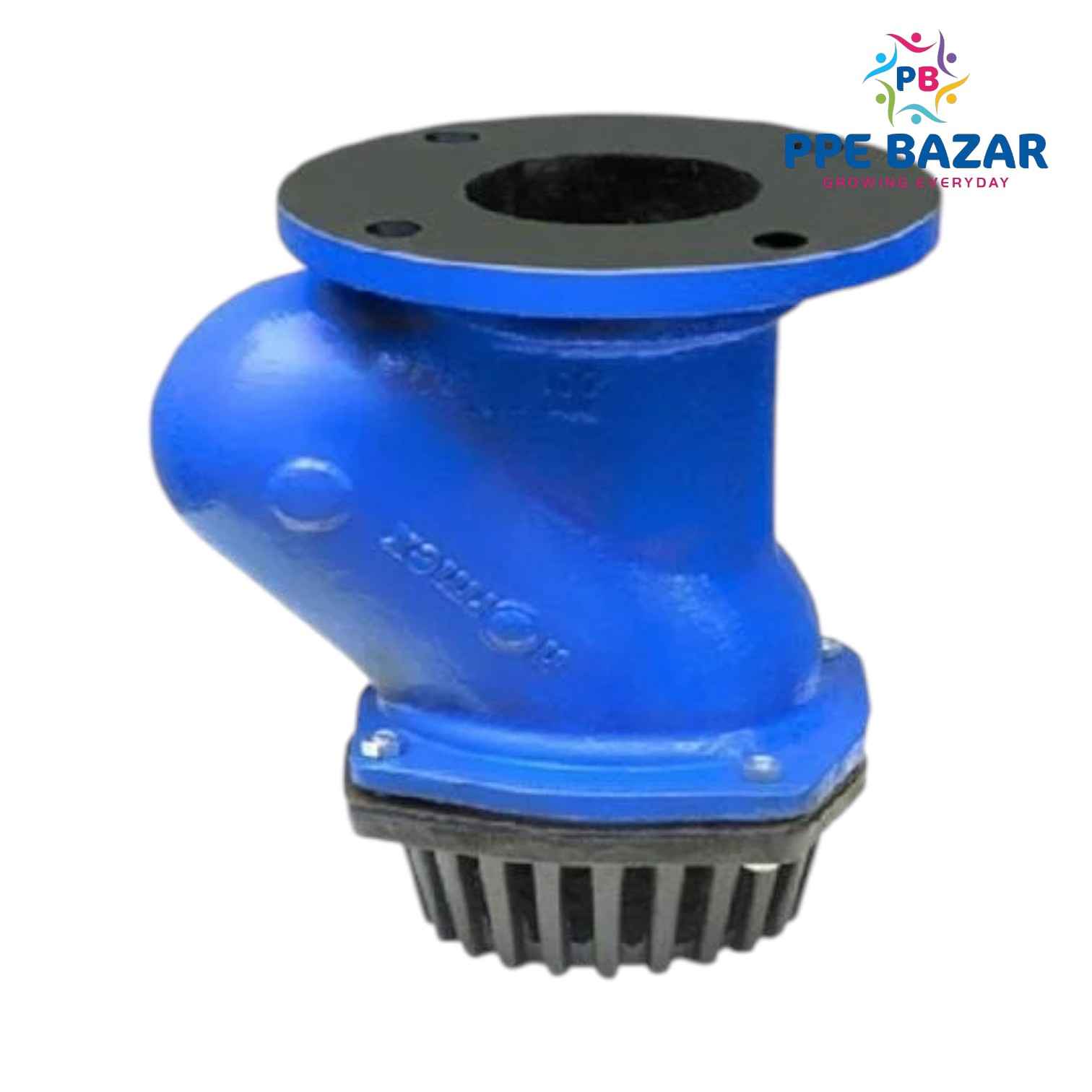

CI Ball Foot Valve Flange End Size : 4" , Body/Strainer : Cast Iron, Fasteners : Carbon Steel, Ball : Nitrile Reinforced, Sealimg Ring : Nitrile, Fasteners : Carbon Steel, Paint : Enamel Paint, End Connection : Threaded
0
0 Reviews0 Orders 0 Wish listed
₹6,018.30 + GST
MRP ₹6,687.0010 % Off
The 4” CI Ball Foot Valve is a non-return suction valve designed to be mounted at the pump inlet to prevent backflow and maintain priming. It is constructed from heavy-duty Cast Iron (CI) with an integrated strainer, ensuring debris does not enter the pump system. The internal nitrile-reinforced ball and sealing ring provide leak-proof sealing under suction conditions. Carbon steel fasteners ensure durability and mechanical strength. The body is protected with enamel paint to resist corrosion in harsh environments. Though the body features flanged mounting, the valve has a threaded end connection for flexible installations.
Technical Specifications:
Component
Specification
Valve Type
Ball Foot Valve (Non-return type)
Size
4 inch (100 mm NB)
Body Material
Cast Iron (CI)
Strainer Material
Cast Iron – Integral with body
Ball Material
Nitrile Rubber (Reinforced)
Sealing Ring
Nitrile Rubber (NBR)
Fasteners
Carbon Steel
Paint/Finish
Enamel Paint – Anti-corrosive coating
End Connection
Threaded (Screwed type)
Mounting
Flanged for stable suction pipeline mounting
Working Pressure
Up to 10 bar (150 psi)
Temperature Range
-10°C to +80°C (subject to fluid compatibility with NBR)
Flow Direction
One-way (from inlet to pump side)
Installation Orientation
Vertical (submerged in suction tank/reservoir)
Key Features:
✅ Strong Cast Iron Construction – Durable and rugged for industrial applications ✅ Reinforced Nitrile Ball & Seal – Ensures reliable backflow prevention ✅ Flanged Body + Threaded Outlet – Supports versatile connection configurations ✅ Corrosion-Resistant Finish – Enamel coating for extended service life ✅ Heavy-Duty Fasteners – Carbon steel components for secure assembly ✅ Efficient Flow Design – Minimizes suction losses and prevents debris entry
Applications:
✔ Industrial Pumping Systems ✔ Water Supply Installations ✔ Irrigation and Agricultural Pumps ✔ Firefighting Pump Suctions ✔ Chemical and Utility Services (NBR-compatible fluids)
