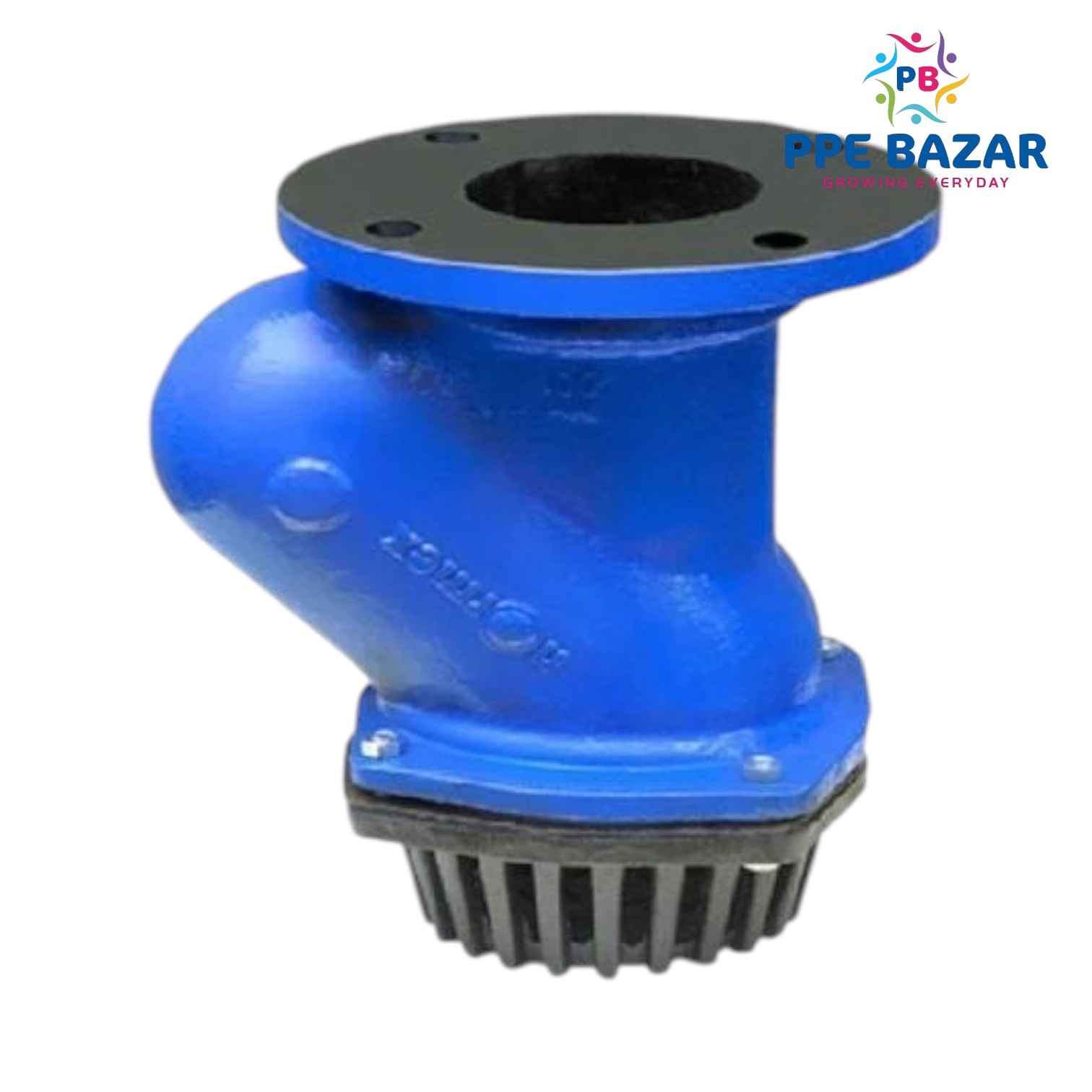

CI Ball Foot Valve Flange End Size : 6" , Body/Strainer : Cast Iron, Fasteners : Carbon Steel, Ball : Nitrile Reinforced, Sealimg Ring : Nitrile, Fasteners : Carbon Steel, Paint : Enamel Paint, End Connection : Threaded
0
0 Reviews0 Orders 0 Wish listed
₹17,257.50 + GST
MRP ₹19,175.0010 % Off
The 6” CI Ball Foot Valve is a non-return valve installed at the suction side of pumps to prevent reverse flow and maintain the pump's prime. It features a rugged cast iron body with an integral strainer, providing durability and protection from debris. The internal components include a nitrile-reinforced ball and a nitrile sealing ring, offering reliable sealing and chemical resistance. The valve is assembled using carbon steel fasteners and protected with enamel paint for enhanced corrosion resistance. While the valve body has flanged mounting, the outlet connection is threaded, making it compatible with various piping systems.
Technical Specifications:
Component
Specification
Valve Type
Ball Foot Valve (Non-return type)
Size
6 inch (150 mm NB)
Body Material
Cast Iron (CI)
Strainer Material
Cast Iron – Integral with the body
Ball Material
Nitrile Rubber (Reinforced)
Sealing Ring
Nitrile Rubber (NBR)
Fasteners
Carbon Steel
Paint/Finish
Enamel Paint – Corrosion-resistant coating
End Connection
Threaded (Screwed type)
Mounting
Flanged for suction line stability
Working Pressure
Up to 10 bar (150 psi)
Temperature Range
-10°C to +80°C (fluid compatibility dependent)
Installation Position
Vertical (submerged in water tank or reservoir)
Flow Direction
Uni-directional (inlet to pump)
Key Features:
✅ Heavy-Duty Cast Iron Body – Built for tough industrial and utility conditions ✅ Nitrile Ball and Seal – Offers excellent resistance to wear and compatible with various liquids ✅ Flanged Base with Threaded Outlet – Versatile installation for secure suction connections ✅ Integrated Strainer – Prevents solid debris from entering the pump ✅ Anti-Corrosion Enamel Finish – Long service life in wet and outdoor environments ✅ Reliable Non-Return Action – Keeps the pump primed and prevents reverse flow
Applications:
✔ Municipal Water Systems ✔ Industrial and Process Pump Installations ✔ Irrigation & Agricultural Suction Lines ✔ Firefighting Water Sources ✔ Utility Pumping Systems (NBR-compatible fluids)
