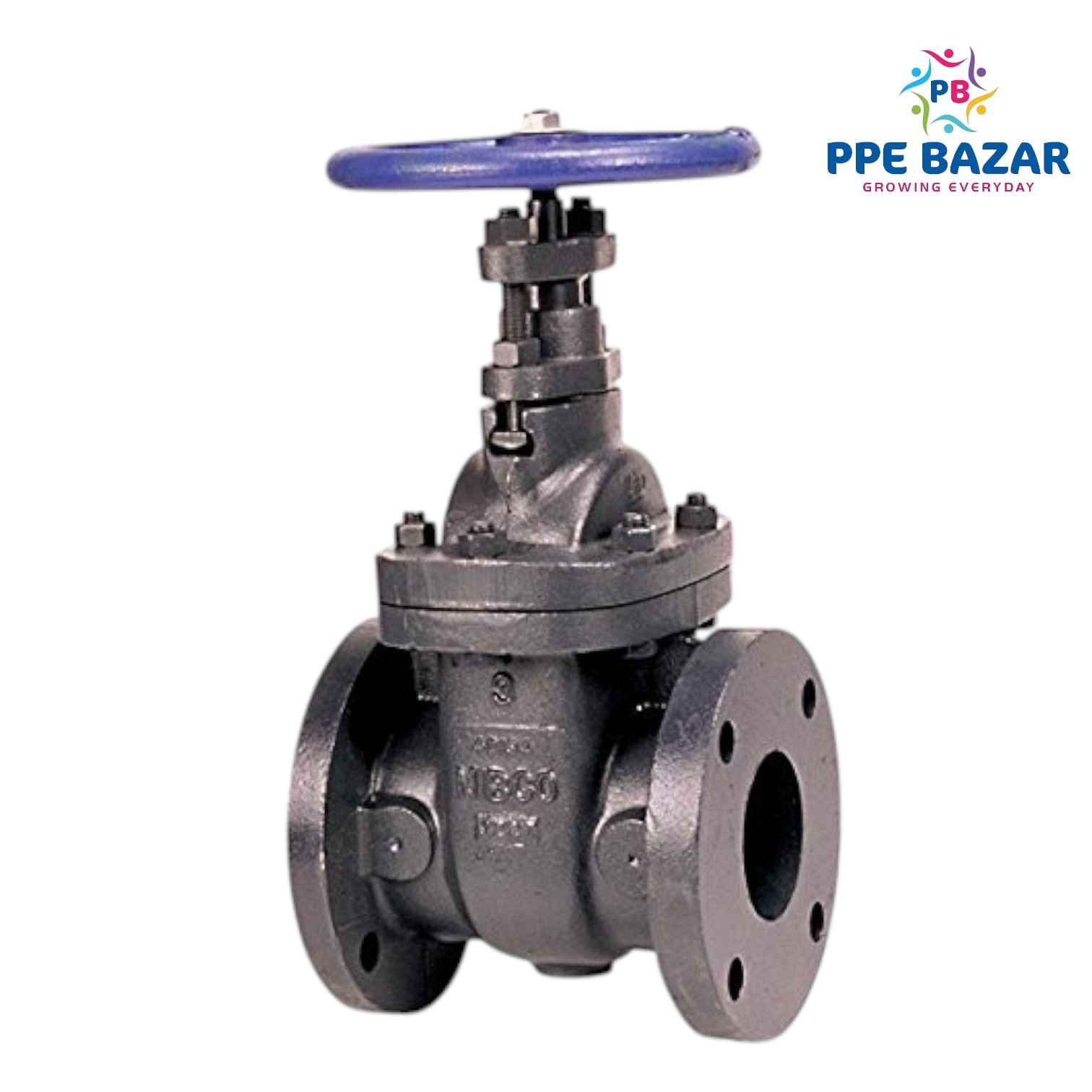

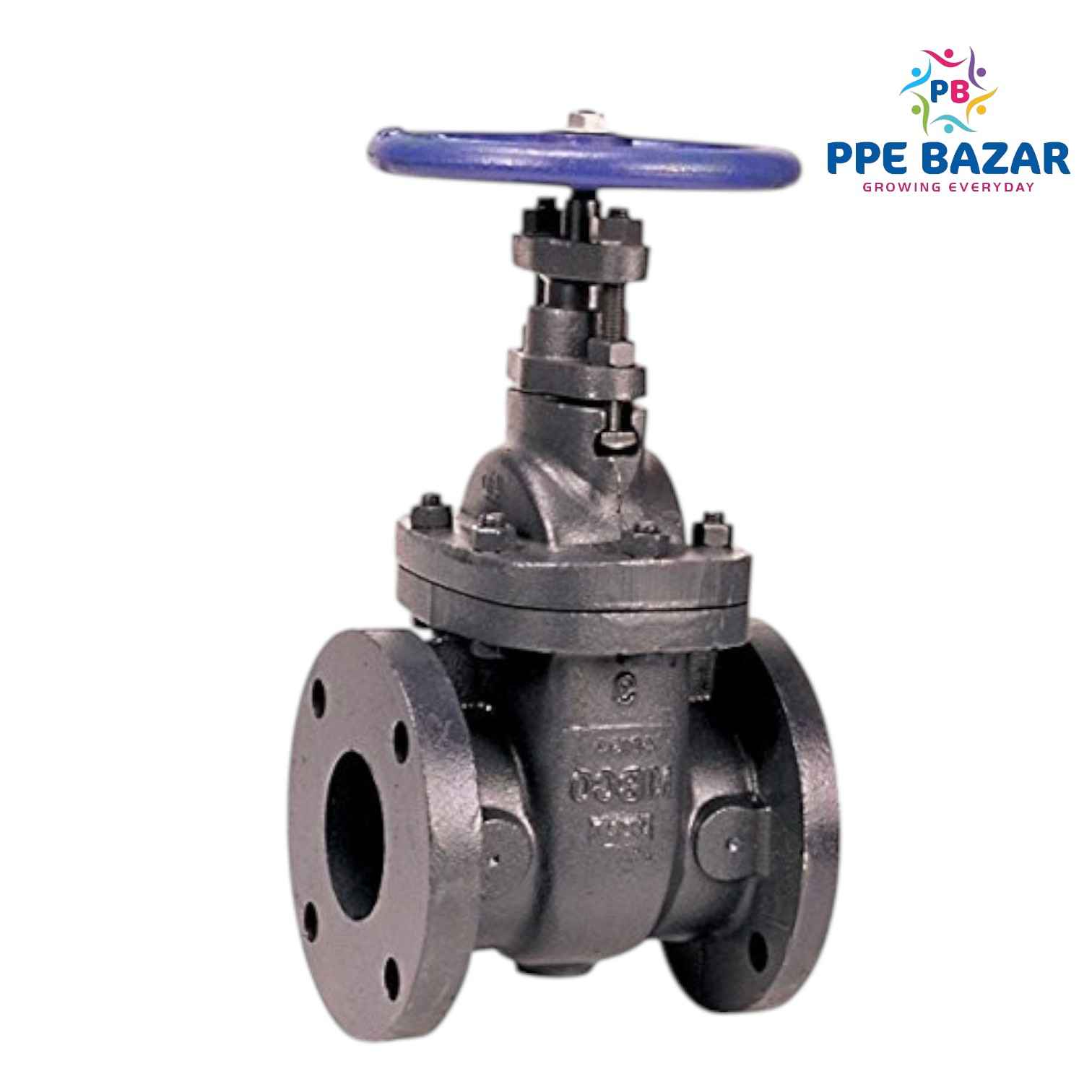

The Cast Iron Gate Valve (Sluice Valve) is a heavy-duty, manually operated valve designed to isolate flow in pipelines. Manufactured as per IS 14846 and ISI certified, features a Non-Rising Spindle (NRS) design, making it ideal for installations where vertical clearance is limited. With a PN16 pressure rating, the valve is suitable for waterworks, fire protection, sewage, and industrial pipelines.
Technical Specifications:
| Feature |
Details |
| Valve Type |
Gate Valve / Sluice Valve |
| Size |
3” (80mm) |
| Design Standard |
IS 14846:2000 |
| ISI Mark |
Yes – ISI Certified (ISI Marked as per IS 14846) |
| Body Material |
Cast Iron (CI) – IS 210 Gr. FG 200 |
| Wedge / Gate |
Cast Iron / Ductile Iron with Nitrile / EPDM Rubber Coating |
| Spindle Type |
Non-Rising Spindle (NRS) |
| Spindle Material |
Stainless Steel / Bronze / Carbon Steel (as per spec) |
| End Connection |
Flanged Ends – Drilled as per IS 1538 / PN16 |
| Pressure Rating |
PN16 (16 bar) |
| Test Pressure |
Body: 24 bar, Seat: 17.6 bar |
| Coating |
Internal & External Fusion Bonded Epoxy / Black Bitumen Paint |
| Operation |
Manual Handwheel Operated |
| Temperature Range |
0°C to 80°C (Water applications) |
| Face-to-Face Dimension |
As per IS 14846 / Manufacturer Standard |
| Application Media |
Potable Water, Raw Water, Sewage, Fire Fighting Systems |
| Installation Position |
Horizontal / Vertical |
| Weight |
Approx. 25 – 35 kg (may vary slightly by make) |
| Feature |
Details |
| Valve Type |
Gate Valve / Sluice Valve |
| Size |
4” (100mm) |
| Standard |
IS 14846:2000 |
| ISI Mark |
Yes (ISI Certified as per IS 14846) |
| Body Material |
Cast Iron (CI) – IS 210 Gr. FG 200 |
| Wedge / Gate |
Ductile Iron / CI with Resilient Rubber Coating (Nitrile/EPDM) |
| Spindle Type |
Non-Rising Spindle (NRS) |
| Spindle Material |
Stainless Steel / Bronze / Carbon Steel (as per spec) |
| End Connection |
Flanged Ends – Drilled as per IS 1538 / PN16 |
| Pressure Rating |
PN16 (16 Bar) |
| Hydrostatic Test Pressure |
Body: 24 Bar, Seat: 17.6 Bar |
| Coating |
Fusion Bonded Epoxy / Red Oxide / Bitumen (internal & external) |
| Operation |
Manual Handwheel Operated |
| Face-to-Face Dimension |
As per IS 14846 / Manufacturer’s Standard |
| Media |
Potable Water, Raw Water, Sewage, Non-Corrosive Fluids |
| Mounting Position |
Horizontal / Vertical |
| Temperature Range |
0°C to 80°C (Water Services) |
| Weight |
Approx. 35 – 50 kg (may vary by manufacturer) |
Key Features:
- ISI Marked as per IS 14846 – trusted quality assurance
- Non-Rising Spindle (NRS) ideal for space-constrained installations
- Resilient seated wedge ensures tight shut-off and low torque operation
- Corrosion-resistant coating internally and externally for longer life
- Flanged ends compatible with standard pipeline connections
- Designed for waterworks, irrigation, and fire protection systems
