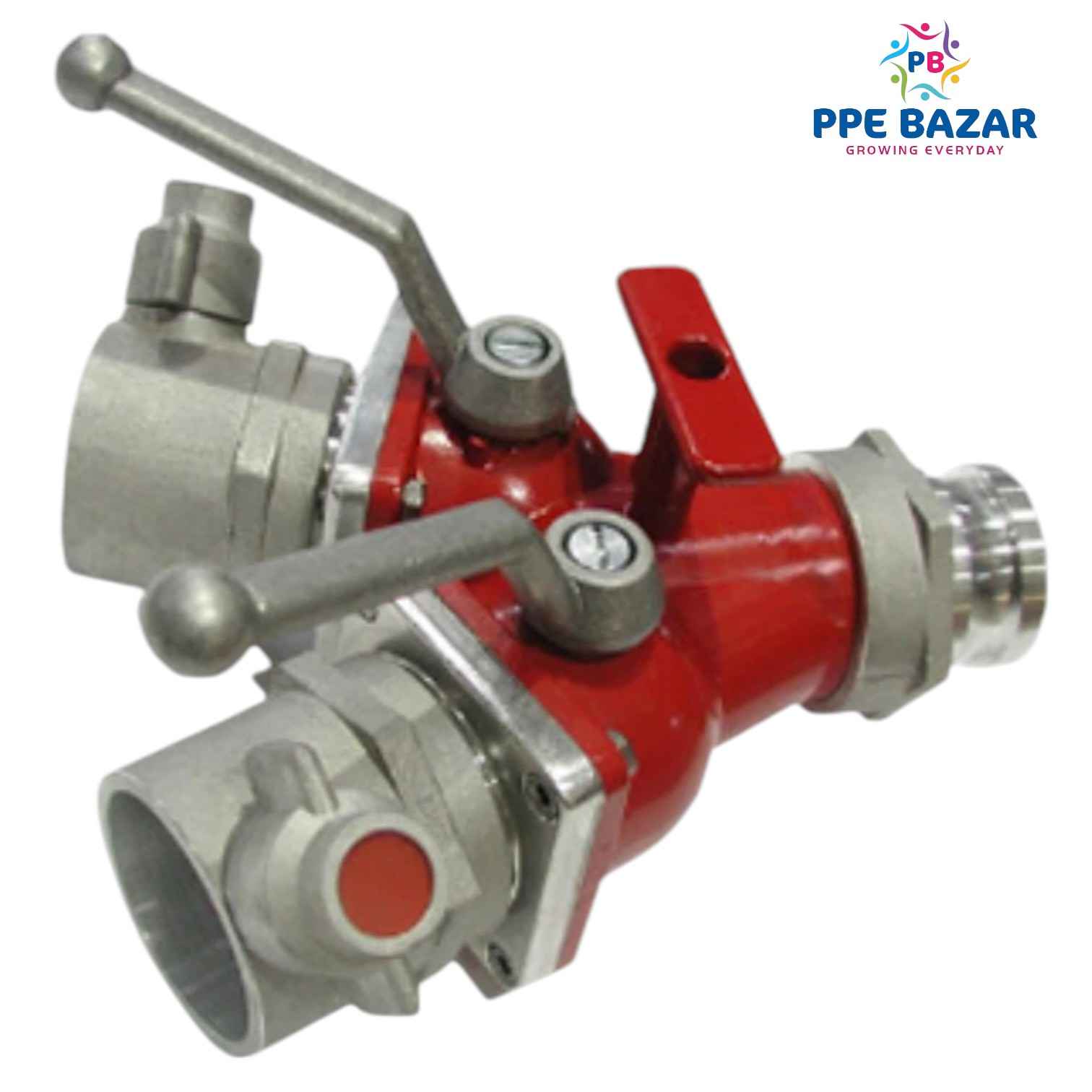

Controlled Dividing Breech (2 Way), Conventional design, made of Stainless Steel (SS304) having 2 Nos. 63 mm size Female Instantaneous Outlets, & 1 No. 63 mm size Male Instantaneous inlet, suitable for use with 63 mm Fire fighting Hose couplings. Ball Val
0
0 Reviews0 Orders 0 Wish listed
₹14,028.75 + GST
MRP ₹16,125.0013 % Off
Product Description:
The Controlled Dividing Breech (2-Way) is a rugged and efficient fire-fighting accessory designed to divide a single water supply line into two separate outlets. Constructed from high-quality Stainless Steel SS304, this conventional design breech fitting features two 63 mm Female Instantaneous Outlets and one 63 mm Male Instantaneous Inlet, all conforming to IS:903 standards.
Each outlet is individually controlled using robust Ball Valves, allowing the operator to:
Supply water to a single line,
Supply both lines simultaneously, or
Shut off flow completely.
It is an essential component in firefighting operations where flexible water distribution is needed on the ground.
Specifications:
Parameter
Details
Product Name
Controlled Dividing Breech – 2 Way (Conventional Type)
Body Material
Stainless Steel SS304
Inlet Connection
1 × 63 mm Male Instantaneous (IS: 903)
Outlet Connections
2 × 63 mm Female Instantaneous (IS: 903)
Control Mechanism
Individual SS Ball Valves on each outlet
Design Type
Conventional Body, Handheld or Ground-Mountable
Operating Pressure
Up to 12 kg/cm²
Flow Capacity
Designed to handle up to 1800 LPM total (900 LPM per outlet approx.)
Finish
Natural Stainless Steel (SS304), Polished
Weight
Approx. 6 – 8 kg (depending on wall thickness and valve configuration)
Handle Material
Stainless Steel/Aluminum with heat-resistant covering
Sealing
Heavy-duty rubber washers for leak-proof sealing
Applications
- Firefighting water distribution - Temporary hydrant extensions - Multi-hose operations
Key Features:
Durable Construction: Built from corrosion-resistant SS304 for long service life in harsh environments.
Flexible Operation: Ball valves enable independent control of outlets.
Standard Compatibility: Suitable for use with 63 mm fire hoses and couplings as per IS standards.
Leak-Proof Design: Secure connections and valve controls ensure minimal water loss.
Ease of Use: Simple and quick hose connection and flow regulation in emergency situations.
