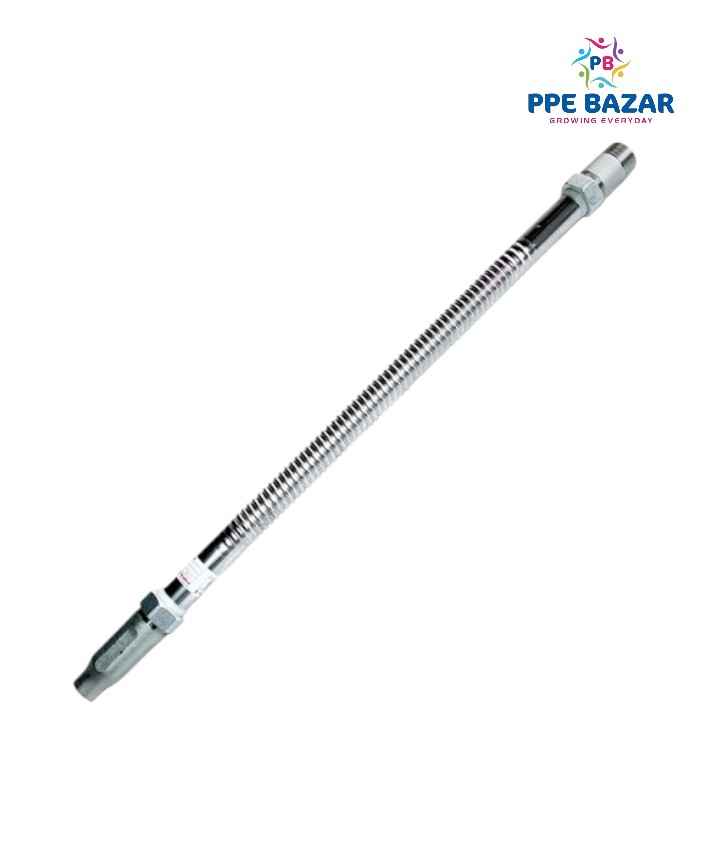

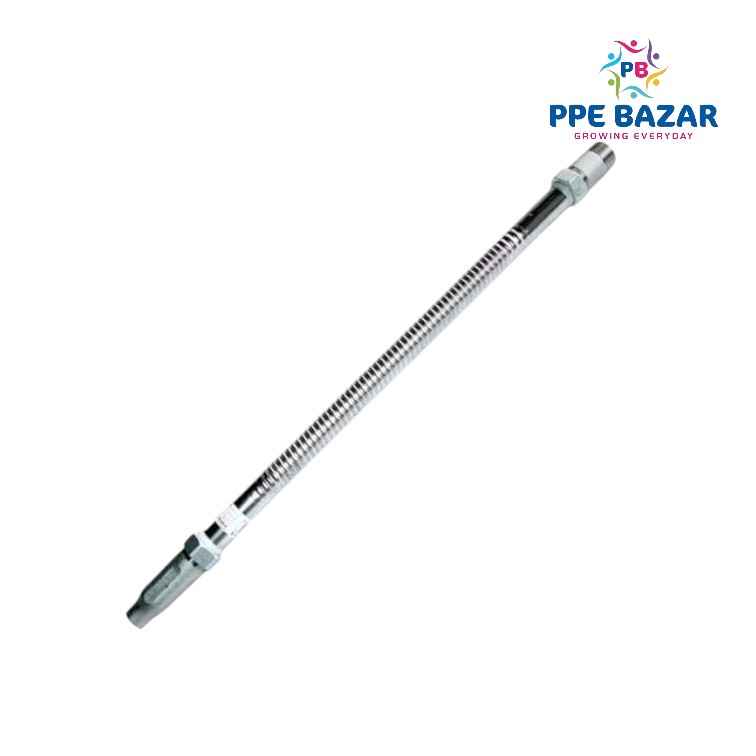

Corrugated Unbraided SS Flexible Sprinkler Drop; 1200mm with 1" Inlet Nipple BSPT, ½" Outlet Reducer BSPT

0 Reviews 0 Orders 0 Wish listed

₹1,003.50 + GST

MRP ₹1,115.00 10 % Off

The HD-UB-1200 is a UL Listed corrugated unbraided stainless steel flexible sprinkler drop designed for fast and easy installation of fire sprinklers in suspended ceilings or tight spaces. It provides flexibility for positioning the sprinkler head without requiring rigid pipe cutting or threading, reducing installation time and labor.

This model includes a 1200mm long SS flexible hose, a 1" BSPT inlet nipple, a ½" BSPT reducer outlet, and a 700mm square support bar with mounting bracket for secure and adjustable ceiling installation. Rated for up to 200 psi, it is suitable for a wide range of fire suppression applications.

📐 Specifications:

Parameter	Details
Model	HD-UB-1200
Type	Flexible Sprinkler Drop (Unbraided)
Hose Material	Corrugated Stainless Steel (SS)
Length of Hose	1200 mm
Inlet Connection	1" BSPT Male Nipple
Outlet Connection	½" BSPT Female with Reducer
Support Bar	700 mm Square Bar with Mounting Bracket
Maximum Rated Pressure	200 psi (13.8 bar)
Temperature Rating	Compatible with standard sprinkler temperature ratings (e.g., 68°C, 74°C)
Certification	UL Listed
Application	Fire sprinkler systems in commercial and industrial ceiling grid installations
Installation	Suitable for T-bar ceiling grid systems or light ceiling tiles
Finish	Natural Stainless Steel (unbraided)

📐 Specifications:

Parameter	Details
Model	HD-UB-1200
Type	Flexible Sprinkler Drop (Unbraided)
Hose Material	Corrugated Stainless Steel (SS)
Length of Hose	1200 mm
Inlet Connection	1" BSPT Male Nipple
Outlet Connection	½" BSPT Female with Reducer
Support Bar	700 mm Square Bar with Mounting Bracket
Maximum Rated Pressure	200 psi (13.8 bar)
Temperature Rating	Compatible with standard sprinkler temperature ratings (e.g., 68°C, 74°C)
Certification	UL Listed
Application	Fire sprinkler systems in commercial and industrial ceiling grid installations
Installation	Suitable for T-bar ceiling grid systems or light ceiling tiles
Finish	Natural Stainless Steel (unbraided)
