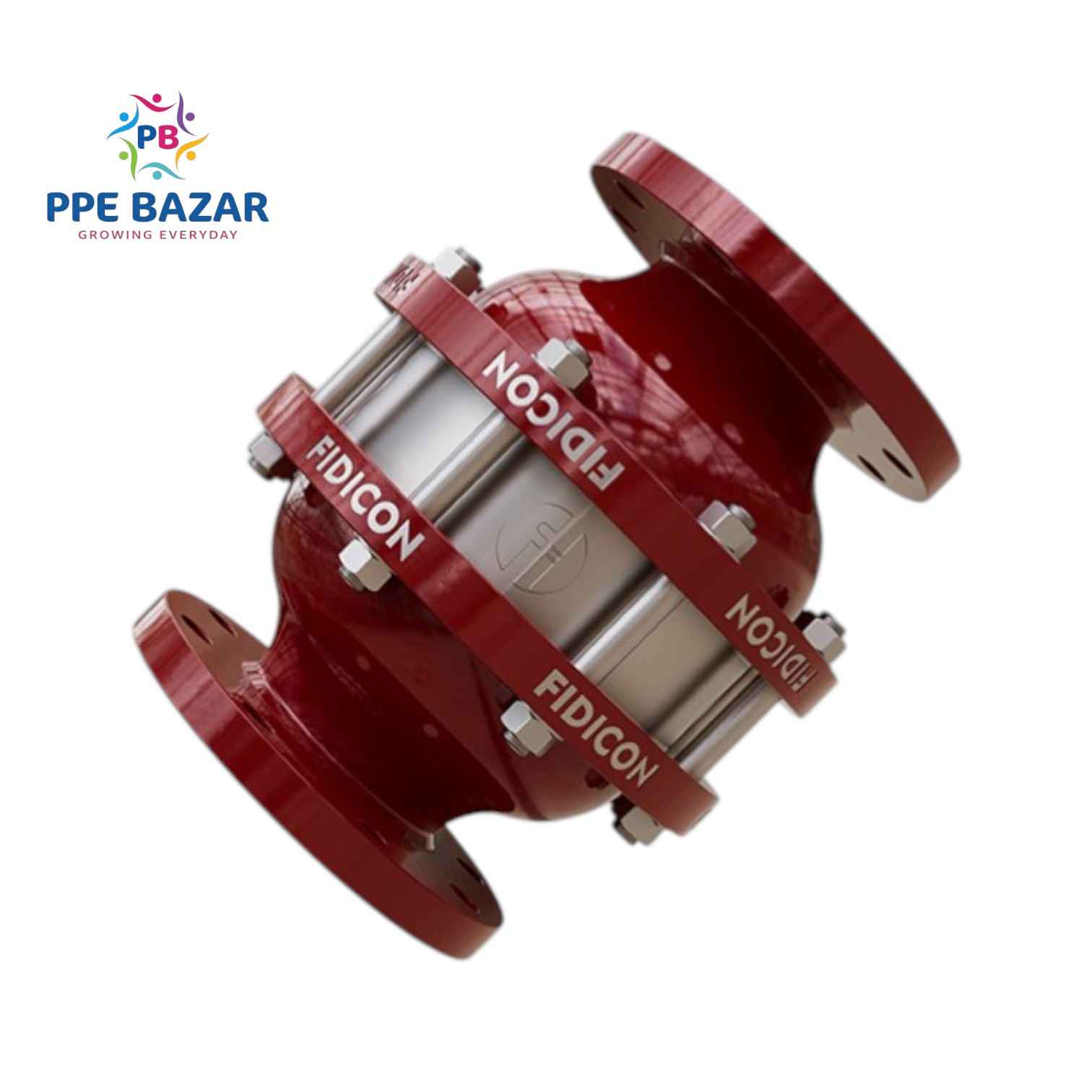

The FDI-FA-707 In-Line Flame Arrester is a precision-engineered safety device designed to prevent flame propagation in pipelines carrying flammable gases or vapors. Installed directly within the pipeline, it effectively arrests deflagration by dissipating heat through a specialized flame arresting element.
Constructed from SS304 stainless steel for both body and wetted parts, the unit ensures high corrosion resistance, mechanical strength, and long operational life. It is suitable for a wide range of industrial applications including chemical processing, solvent handling, and petrochemical systems, where explosion protection is critical.
Key Features
In-Line Flame Arresting Design – Prevents flame transmission within pipelines.
Robust SS304 Construction – Ensures durability and corrosion resistance.
ANSI Standard Flanged Connection – Easy integration with existing piping systems.
Reliable Safety Performance – Designed for handling flammable gases and vapors.
Compact and Efficient Design – Minimal pressure drop with effective operation.
Low Maintenance Requirement – Long service intervals with consistent performance.
Technical Specifications
Parameter
Specification
Model No.
FDI-FA-707
Product Type
In-Line Flame Arrester
Tag No.
N.A.
Size
1” ANSI B16.5 150 RF
Body Material (M.O.C.)
SS304
Wetted Parts M.O.C.
SS304
Material
Body: Stainless Steel SS304
Wetted Parts: Stainless Steel SS304
Flame Arresting Element: SS304 (multi-layer element – standard design)
Dimensions
Nominal Size: 1 inch
Flange Standard: ANSI B16.5 Class 150 RF
Capacity / Performance
Designed for safe handling of flammable gases and vapors.
Provides effective deflagration arresting within pipeline systems.
Applications
Chemical and petrochemical plants ⚗️
Solvent storage and transfer systems
Oil & gas processing facilities
Pharmaceutical and specialty chemical industries
Paint, coating, and fuel handling systems
Industrial pipeline safety systems
Safety Compliance
Designed as per industry standards for flame arresters and explosion protection systems.
Suitable for installation in hazardous areas handling flammable media.
Supports compliance with process safety and fire protection requirements.
