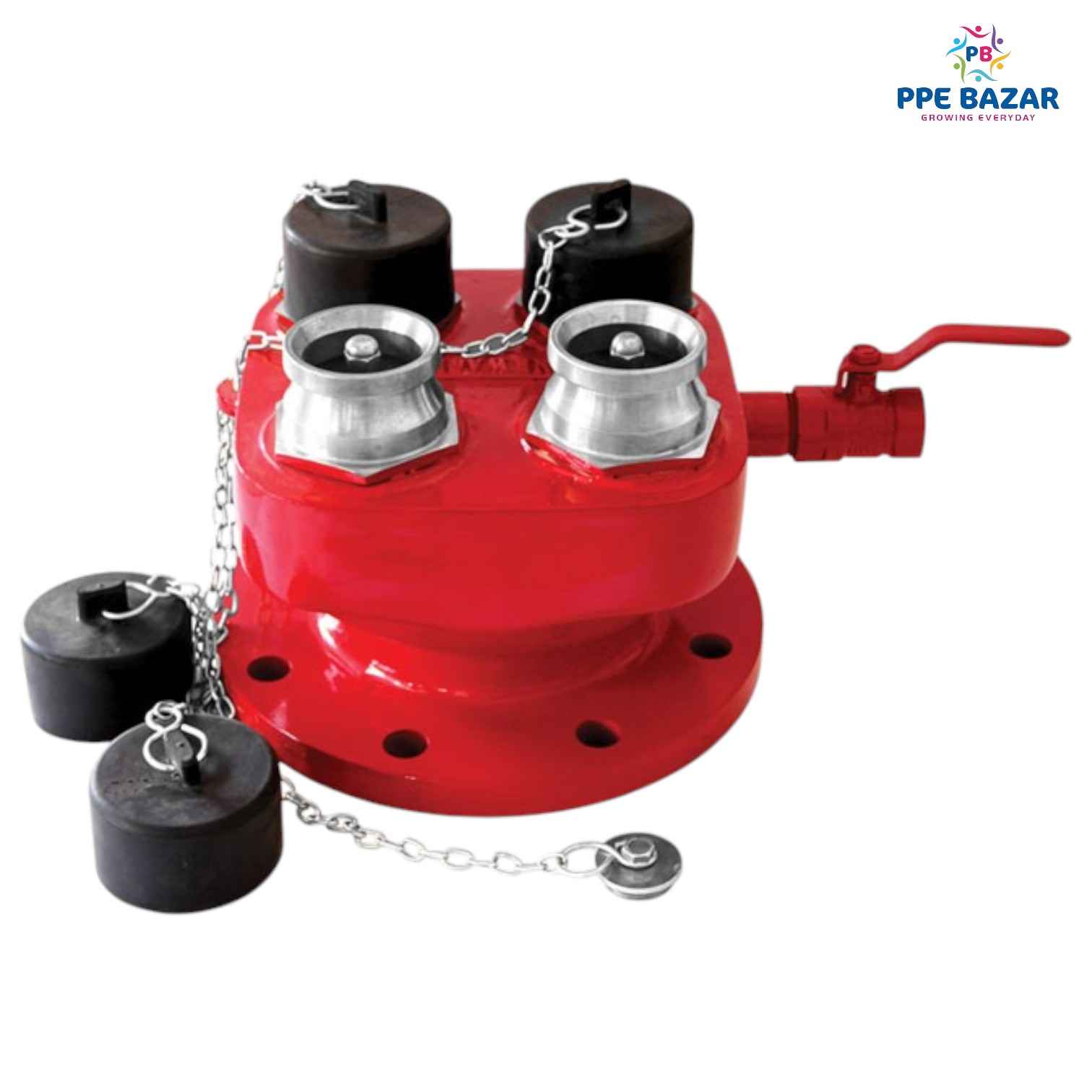

Fire Brigade Inlet Breaching Four Way With 4 Nos. Of Non Return Valve (N.R.V) Inlet And Flanged Out Of 150 NB Complete With Rubber Plastics Caps For N.R.V. Without Release Valve MOC : C.I. Body With Gun Metal N.R.V.

0 Reviews 0 Orders 0 Wish listed

₹6,895.20 + GST

MRP ₹8,112.00 15 % Off

The Four Way Fire Brigade Inlet Breaching is a vital component used in fire protection systems, designed to provide fire services with an external point to inject water into the internal fire hydrant...

The Four Way Fire Brigade Inlet Breaching is a vital component used in fire protection systems, designed to provide fire services with an external point to inject water into the internal fire hydrant system of a building.

This breaching inlet is equipped with 4 Nos. 63 mm Male Instantaneous Inlet Connections, each provided with a Non-Return Valve (N.R.V.) made from Gun Metal to prevent backflow. The body of the unit is made of high-grade Cast Iron (C.I.) for strength and durability.

A 150 NB flanged outlet allows connection to the internal riser pipeline. Each inlet is supplied with rubber/plastic dust caps for protection against debris and dust. This model is without a release valve.

✅ Technical Specifications:

Parameter	Specification
Type	Fire Brigade Inlet Breaching – Four Way
Inlet Connections	4 Nos. 63 mm Male Instantaneous Inlets
NRV Material	Gun Metal
Body Material	Cast Iron (C.I.)
Outlet Connection	150 NB Flanged
Caps	Rubber/Plastic Dust Caps With Chains
Release Valve	Not Provided
Working Pressure	Up to 10 kg/cm²
Hydrostatic Test	16 kg/cm²
Painting/Finish	Red Epoxy/Enamel Finish

🔧 Key Features:

Four Inlet Points for high-volume water feed
Gun Metal NRVs ensure durable, corrosion-resistant operation
C.I. Body provides long-lasting structural strength
Suitable for commercial, residential, and industrial buildings
Supplied with protective rubber/plastic caps
Fully compliant with standard fire brigade requirements
