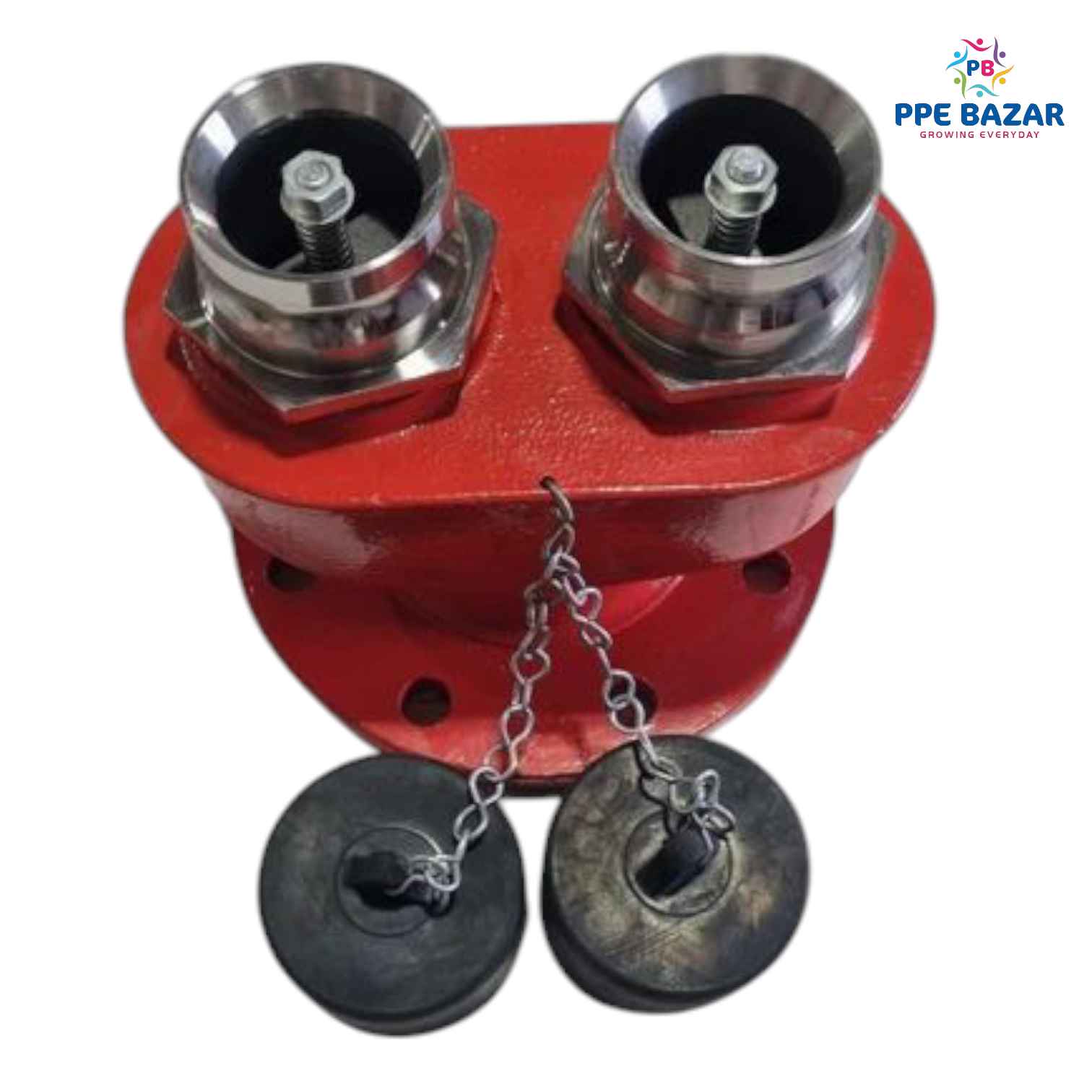

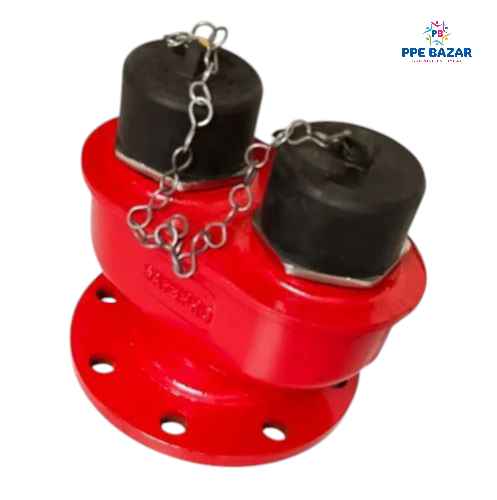

The Fire Brigade Inlet Breaching is a two-way inlet valve assembly designed to allow fire services to supply water into the fire protection system of a building. It is equipped with two non-return valves (NRVs) to prevent backflow, ensuring operational efficiency and safety. The unit is robustly constructed to withstand high pressures and external environmental conditions.
2. Specifications:
- Type: Two-Way Fire Brigade Inlet Breaching
- Material: Gunmetal / Stainless Steel / Cast Iron (as per requirement)
- Inlet Connection: 2 x 63 mm Female Instantaneous Couplings with NRV
- Outlet Connection: 100 NB (Nominal Bore) Flanged Outlet
- Flange Standard: IS 1538 / ANSI B16.5 / BS 4504 (as required)
- Non-Return Valve: 2 Nos. to prevent backflow
- Operating Pressure: Suitable for 12-15 bar working pressure
- Finish: Red Epoxy / Powder Coated / Natural Finish
- Accessories: Complete with Plastic Caps for Dust Protection
- Compliance: IS 904 / BS 5041 Part 3 or Equivalent Standards
3. Features:
- Durable and corrosion-resistant construction
- Designed to allow seamless water supply from fire tenders
- Equipped with non-return valves for backflow prevention
- Flanged outlet for easy connection to fire protection systems
- Comes with plastic caps to prevent dust and debris accumulation
- Suitable for high-pressure firefighting applications
4. Applications:
- Firefighting systems in commercial and industrial buildings
- High-rise buildings and residential complexes
- Airports, warehouses, and public infrastructure
- Hospitals, shopping malls, and metro stations
5. Installation & Maintenance:
- Install at an accessible location for fire brigade connection
- Regularly inspect and test for proper functionality
- Ensure plastic caps remain in place to prevent contamination
- Perform periodic maintenance as per NFPA / IS / BS standards
6. Packaging & Delivery:
- Securely packed in wooden crates or corrugated boxes
- Delivery within standard lead times as per client requirements
- Provided with installation and maintenance manual
7. Certification & Compliance:
- Tested as per relevant fire safety norms
- Manufactured in compliance with national and international standards
- Quality assurance and inspection reports available upon request
