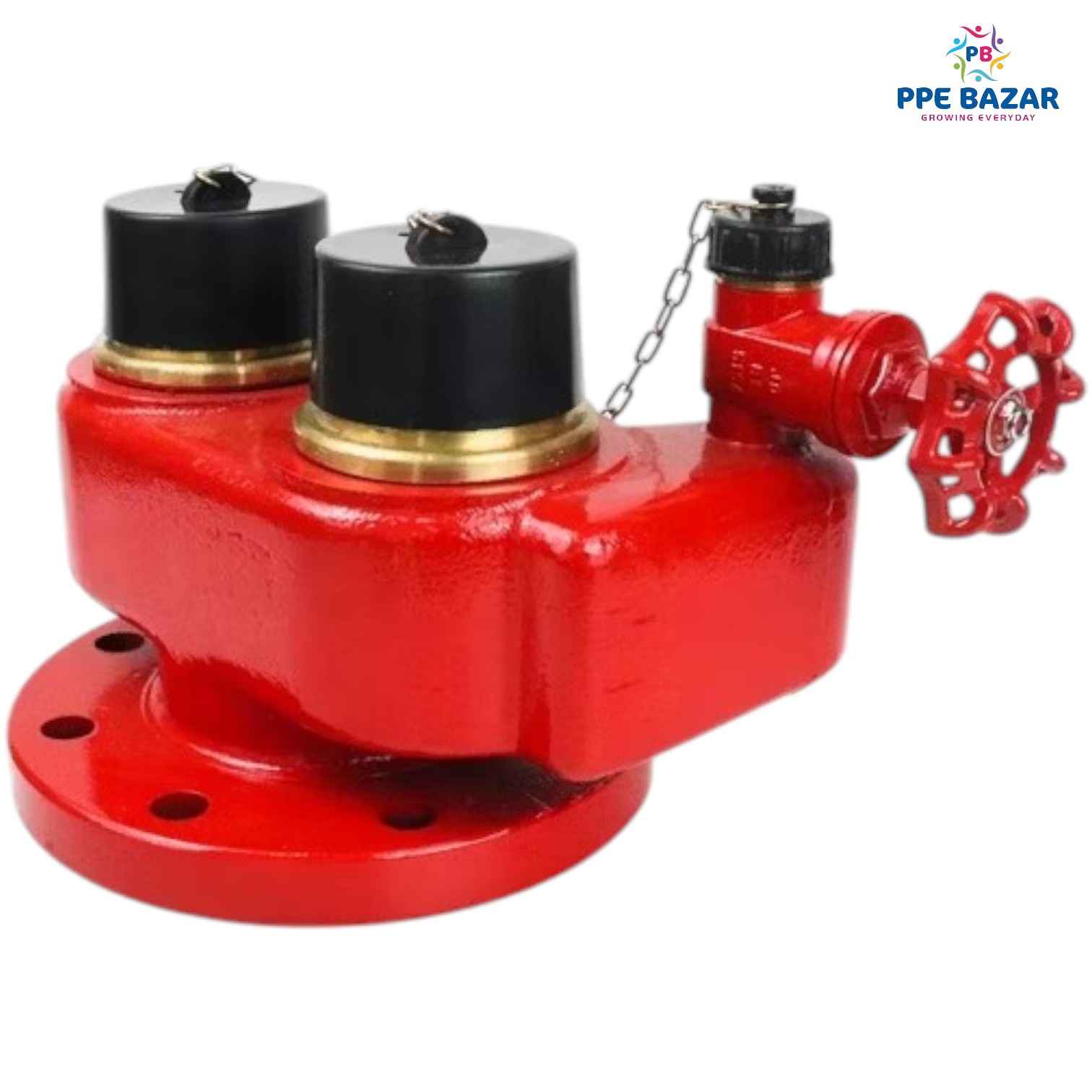

Fire Brigade Inlet Breaching Two Way With 2 Nos. Of Non Return Valve (N.R.V) Inlet And Flanged Out Of 100 NB Complete With Plastics Caps For N.R.V. Without Release Valve MOC : C.I. Body With Gun Metal N.R.V.
0
0 Reviews0 Orders 0 Wish listed
₹3,452.70 + GST
MRP ₹4,062.0015 % Off
The Two-Way Fire Brigade Inlet Breaching is a critical firefighting system component designed to allow the fire brigade to charge the internal fire hydrant or riser system from an external source. This breaching inlet has two male instantaneous type inlets, each fitted with a Gun Metal Non-Return Valve (NRV) to prevent backflow. The outlets are combined and provided with a 100 NB flanged connection to connect to the hydrant riser or piping system.
This unit is supplied without a pressure release valve and includes plastic caps with chains to protect the inlets from dust and debris when not in use. The body is made of durable Cast Iron, and the NRVs are constructed from Gun Metal, ensuring corrosion resistance and long service life in demanding environments.
Technical Specifications:
Parameter
Specification
Type
Two-Way Fire Brigade Inlet Breaching
Body Material
Cast Iron (CI)
NRV Material
Gun Metal
No. of Inlets
2 Nos. Male Instantaneous (63 mm) with Gun Metal NRVs
Outlet Connection
Flanged – 100 NB (Drilled to ANSI B16.5 / IS Standard)
NRV Caps
Plastic caps with retaining chains
Release Valve
Not Provided
Working Pressure
Up to 10 kg/cm²
Testing Pressure
16 kg/cm² (Hydrostatic)
Finish
Red Epoxy Painted or as per customer specification
Key Features:
✅ Two Inlet Ports – For simultaneous fire brigade hose connection ✅ NRV Protection – Prevents water backflow, enhancing safety ✅ Flanged Outlet – Easy and secure connection to hydrant risers ✅ CI & GM Construction – Durable, corrosion-resistant materials ✅ Plastic Caps – Prevent ingress of foreign particles into inlets ✅ Maintenance-Friendly – Simple design with minimal moving parts
Applications:
✔ Fire Hydrant Systems (Internal & External) ✔ High-Rise Buildings & Commercial Complexes ✔ Industrial Plants & Warehouses ✔ Fire Brigade Connection Points
Product Details
The Two-Way Fire Brigade Inlet Breaching is a critical firefighting system component designed to allow the fire brigade to charge the internal fire hydrant or riser system from an external source. This breaching inlet has two male instantaneous type inlets, each fitted with a Gun Metal Non-Return Valve (NRV) to prevent backflow. The outlets are combined and provided with a 100 NB flanged connection to connect to the hydrant riser or piping system.
This unit is supplied without a pressure release valve and includes plastic caps with chains to protect the inlets from dust and debris when not in use. The body is made of durable Cast Iron, and the NRVs are constructed from Gun Metal, ensuring corrosion resistance and long service life in demanding environments.
Technical Specifications:
Parameter
Specification
Type
Two-Way Fire Brigade Inlet Breaching
Body Material
Cast Iron (CI)
NRV Material
Gun Metal
No. of Inlets
2 Nos. Male Instantaneous (63 mm) with Gun Metal NRVs
Outlet Connection
Flanged – 100 NB (Drilled to ANSI B16.5 / IS Standard)
NRV Caps
Plastic caps with retaining chains
Release Valve
Not Provided
Working Pressure
Up to 10 kg/cm²
Testing Pressure
16 kg/cm² (Hydrostatic)
Finish
Red Epoxy Painted or as per customer specification
Key Features:
✅ Two Inlet Ports – For simultaneous fire brigade hose connection ✅ NRV Protection – Prevents water backflow, enhancing safety ✅ Flanged Outlet – Easy and secure connection to hydrant risers ✅ CI & GM Construction – Durable, corrosion-resistant materials ✅ Plastic Caps – Prevent ingress of foreign particles into inlets ✅ Maintenance-Friendly – Simple design with minimal moving parts
Applications:
✔ Fire Hydrant Systems (Internal & External) ✔ High-Rise Buildings & Commercial Complexes ✔ Industrial Plants & Warehouses ✔ Fire Brigade Connection Points
