1. General Description:

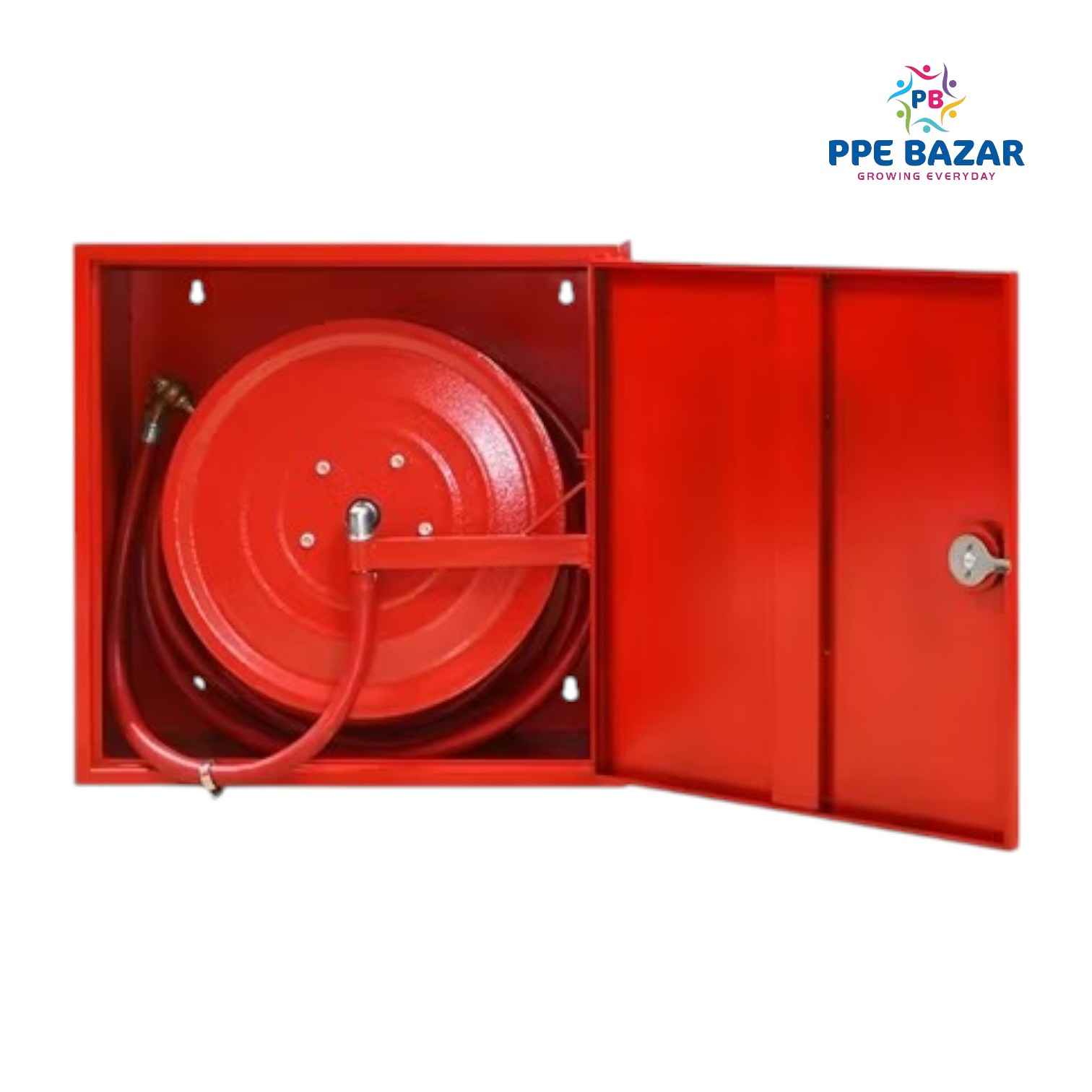

The First Aid Hose Reel (Swinging Type with Wall Mounting 1mm MS Box) is an essential fire safety device designed for quick deployment in emergencies. It features a sturdy 1mm Mild Steel (MS) enclosure, providing enhanced protection and durability. The hose reel assembly complies with IS: 884 standards and is equipped with a thermoplast hose reel pipe conforming to IS: 444, Type ‘I’, with an ISI mark for assured quality and safety.

2. Technical Specifications:

A. Hose Reel Assembly:

• Type: Swinging Type with Wall Mounting
• Enclosure: 1mm MS Box for protection and durability
• Standard Compliance: IS: 884
• Inlet Connection: 25mm screwed inlet
• Reel Material: Mild Steel (MS) with corrosion-resistant powder coating
• Reel Diameter: As per IS: 884 standard specifications
• Swing Mechanism: 180-degree movement for flexible and smooth operation
• Mounting: Wall-mounted inside the MS box

B. Hose Pipe:

• Material: Thermoplast
• Standard Compliance: IS: 444, Type ‘I’
• Diameter: 20mm (¾ inch)
• Length: 30 meters
• Marking: ISI marked for quality assurance

C. Shut-off Nozzle:

• Material: Stainless Steel (SS)
• Diameter: 20mm (¾ inch)
• Type: Manually operated shut-off nozzle for controlled water discharge

3. Key Features & Benefits:

✅ Secure & Durable: 1mm MS Box provides enhanced protection and longer lifespan
✅ Swinging Mechanism: 180-degree rotation for easy handling and flexibility
✅ ISI Certified: Compliant with IS: 884 & IS: 444 for safety and reliability
✅ Corrosion-Resistant Build: Powder-coated MS reel and stainless steel nozzle
✅ Quick & Efficient Deployment: Easy access in emergencies for fast firefighting
✅ High-Quality Thermoplast Hose: Lightweight, durable, and resistant to wear

4. Applications:

• Commercial & Residential Buildings
• Industrial Facilities
• Hospitals & Healthcare Centers
• Schools & Educational Institutions
• Warehouses & Storage Areas
