1. General Description:

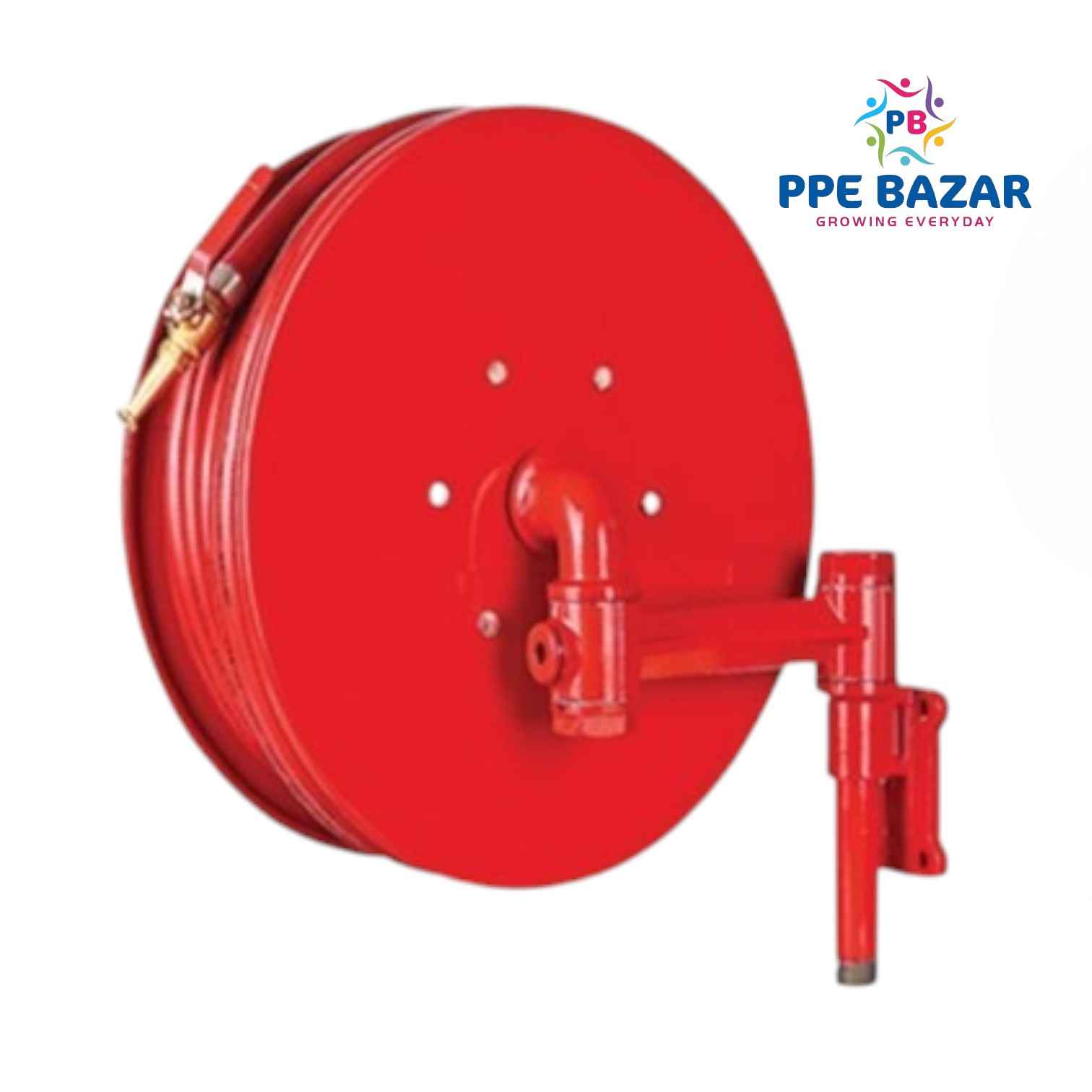

The First Aid Hose Reel (Swinging Wall Mounting Type) is a firefighting equipment designed for quick and efficient response to fire incidents. It is wall-mounted with a swinging arm mechanism, allowing easy access and deployment. The hose reel assembly conforms to IS: 884 standards and is equipped with a thermoplastic hose reel pipe as per IS: 444, Type ‘I’ with an ISI mark for quality assurance.

2. Technical Specifications:

A. Hose Reel Assembly:

• Type: Swinging Wall Mounting
• Standard Compliance: IS: 884
• Inlet Connection: 25mm screwed inlet
• Reel Material: Mild Steel (MS) with corrosion-resistant powder coating
• Reel Diameter: As per IS: 884 standard specifications
• Mounting: Wall-mounted with 180-degree swinging mechanism for flexibility

B. Hose Pipe:

• Material: Thermoplastic
• Standard Compliance: IS: 444, Type ‘I’
• Diameter: 20mm (¾ inch)
• Length: 30 meters
• Marking: ISI marked for quality assurance

C. Shut-off Nozzle:

• Material: Stainless Steel (SS)
• Diameter: 20mm (¾ inch)
• Type: Manual Shut-off Nozzle for controlled water flow

3. Key Features & Benefits:

✅ Swinging Mechanism: 180-degree rotation ensures easy handling and flexibility
✅ High-Quality Hose Pipe: Thermoplastic, ISI-marked for durability and efficiency
✅ Corrosion-Resistant Materials: MS reel with powder coating & SS nozzle for long life
✅ ISI Certification: Conforms to IS: 884 and IS: 444 standards for safety and reliability
✅ Quick Deployment: Designed for immediate firefighting response in emergencies

4. Applications:

• Commercial & Residential Buildings
• Industrial Facilities
• Hospitals & Healthcare Centers
• Schools & Educational Institutions
• Warehouses & Storage Areas
