1. General Description:

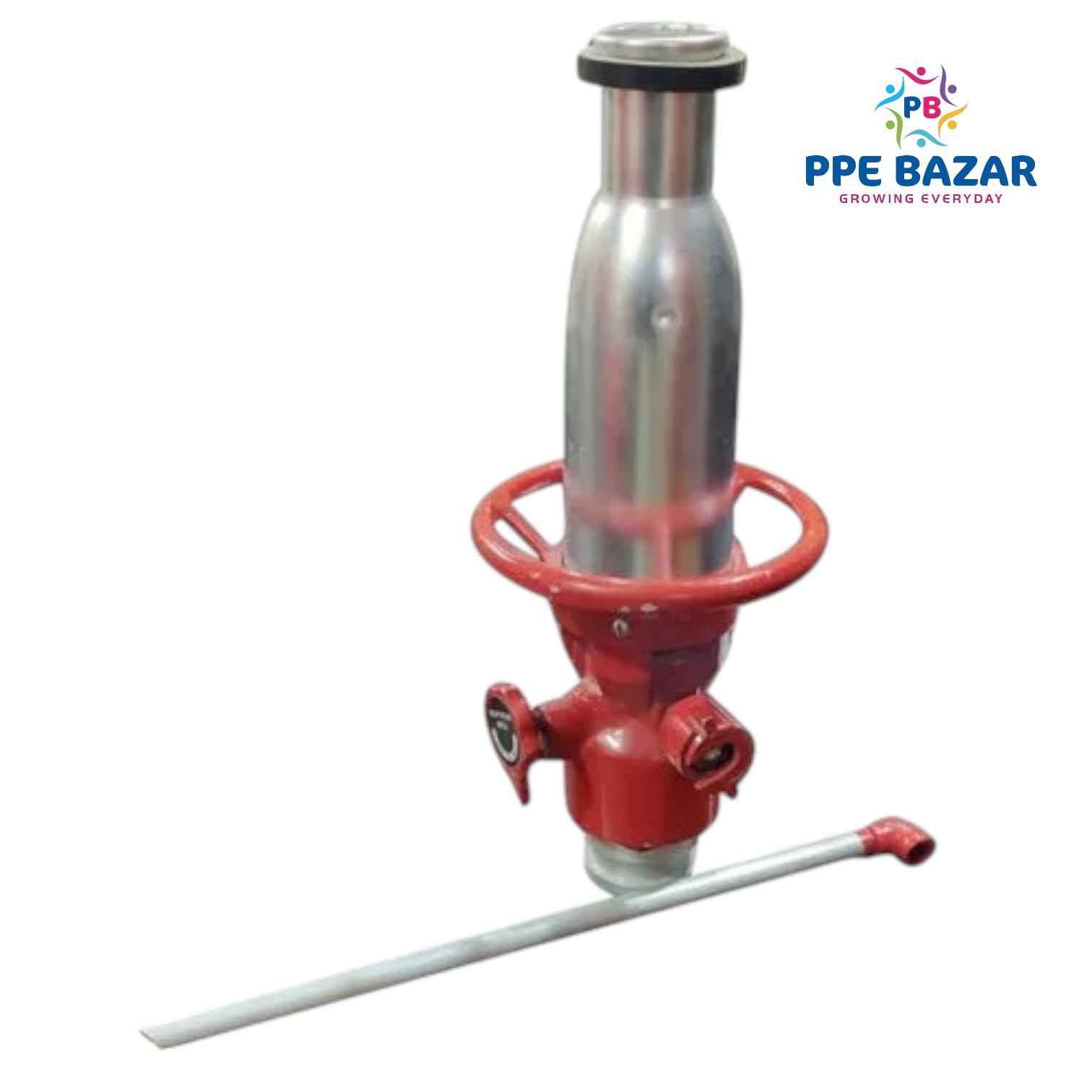

The Foam Making Branch Pipe (FB-5X) is a specialized low-expansion foam generation nozzle designed to produce an effective and stable foam stream for firefighting applications. It is manufactured from high-quality Aluminium Alloy, ensuring durability, lightweight handling, and corrosion resistance.

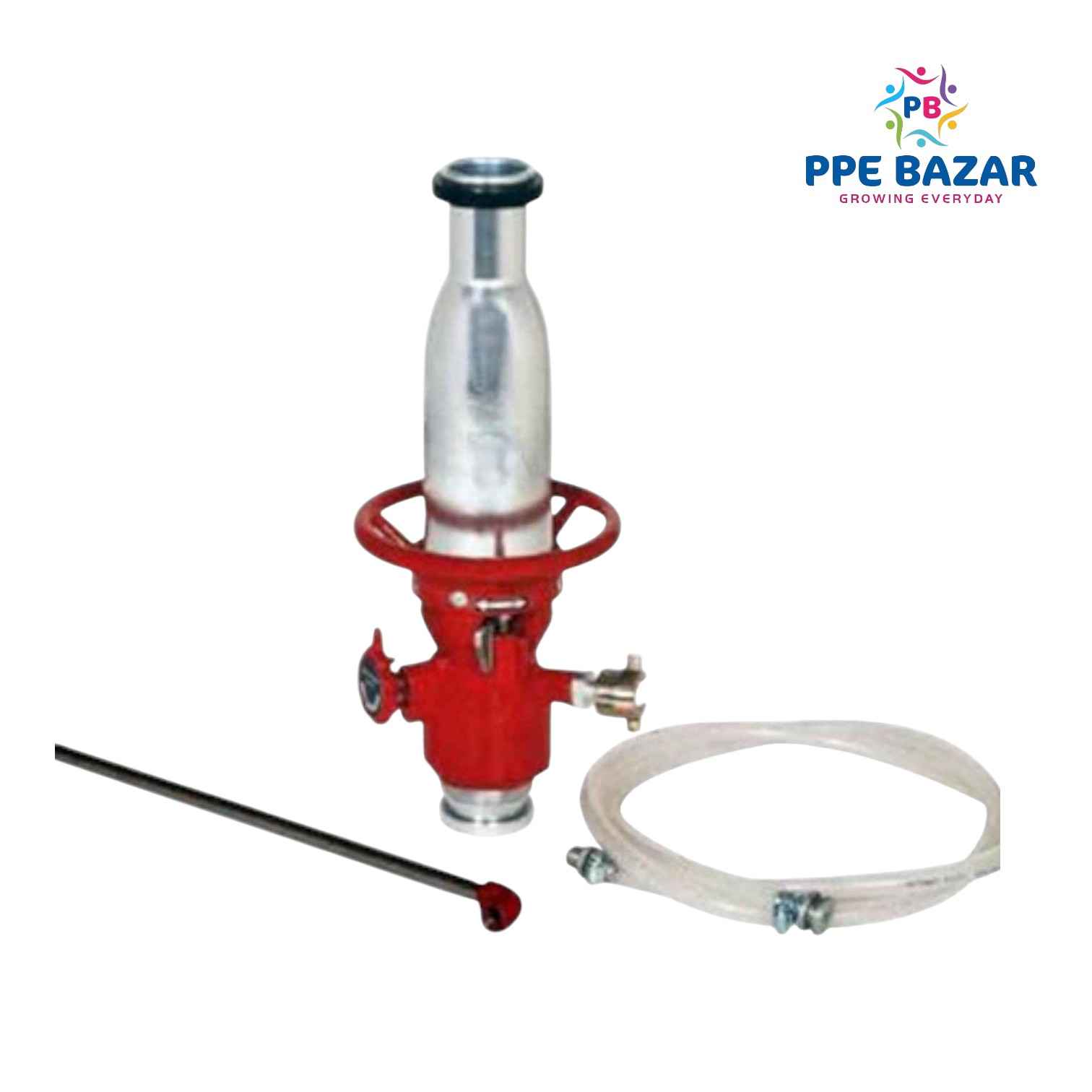

This FB-5X model features a 63mm Male Instantaneous Inlet and has a foam discharge capacity of 225 LPM at 7 kg/cm². It includes a pick-up tube and dip tube for efficient foam concentrate suction and mixing. The branch pipe is manufactured as per IS: 2097, ensuring compliance with Indian Standards for foam firefighting equipment.

2. Technical Specifications:

• Type: Foam Making Branch Pipe (FB-5X), Low Expansion Type
• Material: Aluminium Alloy (Lightweight & Corrosion-Resistant)
• Standard Compliance: IS: 2097 (ISI Marked)
• Inlet Connection: 63mm Male Instantaneous Inlet
• Foam Discharge Capacity: 225 LPM (Litres Per Minute) at 7 kg/cm² pressure
• Foam Expansion: Low Expansion Foam for effective fire suppression
• Pick-Up Tube & Dip Tube: Included for drawing foam concentrate directly from a container
• Operating Mechanism: Mixes foam concentrate with water efficiently for optimal foam generation
• Durability: High-pressure resistant, impact-resistant, and corrosion-proof

3. Key Features & Benefits:

✅ ISI Certified: Manufactured as per IS: 2097, ensuring quality, performance, and reliability
✅ High-Quality Aluminium Alloy: Lightweight, durable, and corrosion-resistant
✅ Efficient Foam Generation: Designed to create a stable foam stream for effective fire suppression
✅ Standardized 63mm Instantaneous Inlet: Ensures compatibility with standard fire hydrant systems
✅ 225 LPM Foam Flow Rate: Provides adequate foam coverage for Class A & B fires
✅ Includes Pick-Up Tube & Dip Tube: Allows direct foam concentrate suction from a container
✅ High-Pressure Resistant: Tested to withstand firefighting pressure requirements
✅ Easy to Handle & Operate: Ergonomic design for effective firefighting applications

4. Applications:

• Industrial & Municipal Firefighting Operations
• Petrochemical Plants & Oil Refineries
• Airport & Aircraft Fire Safety
• Hazardous Chemical Storage Facilities
• Foam-Based Fire Suppression Systems
• Marine & Offshore Firefighting
