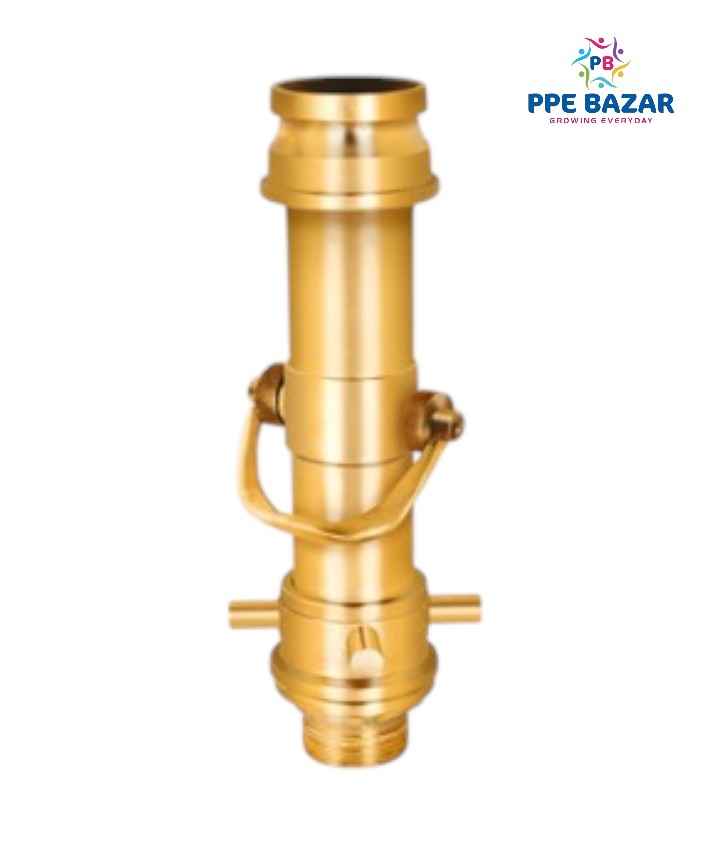

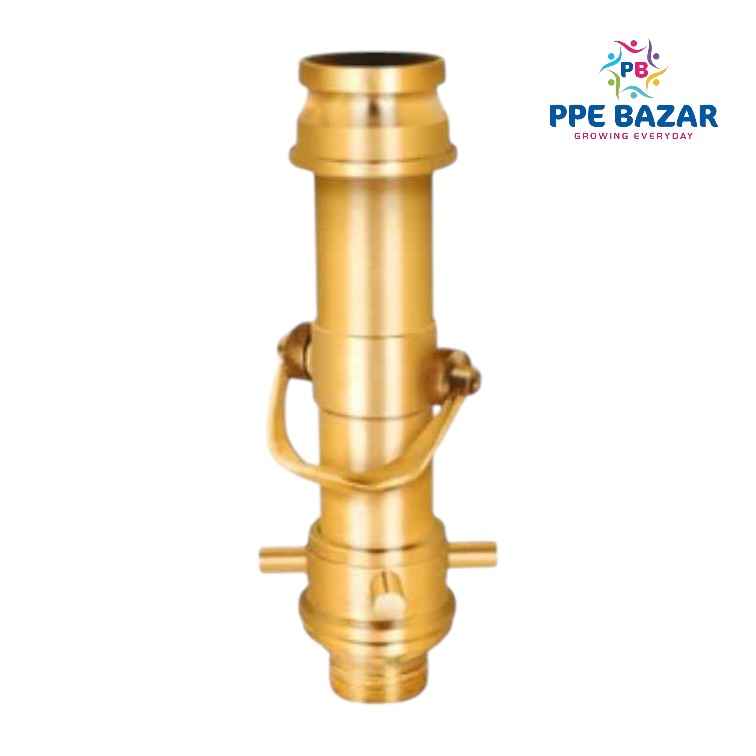

"G.M 63mm Hand Controlled Nozzle (London Patten) having 63mm Male Inst Inlet"

0 Reviews 0 Orders 0 Wish listed

₹5,905.80 + GST

MRP ₹6,562.00 10 % Off

The 63mm G.M. Hand Controlled Nozzle (London Pattern) is a traditional yet highly effective firefighting nozzle, designed for easy operation and consistent water jet delivery. This hand-controlled type nozzle allows smooth ON/OFF and flow control through a rotatable handle, making it ideal for rapid-response firefighting.

Constructed from Gunmetal (G.M) for enhanced durability, corrosion resistance, and strength, this nozzle follows the London pattern design, widely used by fire services across the globe. It features a 63 mm Male Instantaneous Inlet for quick coupling with standard fire hoses and is suitable for both direct jet and spray applications (depending on design).

📐 Specifications:

Parameter	Details
Product	Hand Controlled Nozzle (London Pattern)
Type	Hand-Controlled / Shut-Off Type
Pattern	London Pattern
Size	63 mm
Inlet Connection	63 mm Male Instantaneous Coupling
Material of Construction	Gunmetal (G.M) – High-grade bronze alloy
Finish	Natural Gunmetal / Polished
Control Type	Hand Lever Operated (Quarter-turn or Rotary handle)
Working Pressure	Up to 7 kg/cm² (100 psi)
Flow Output	Varies based on jet diameter (typically 300–500 LPM)
Usage	General-purpose firefighting – Industrial, Municipal, Marine
Jet Type	Solid Jet / Variable Jet (depending on model)
Standards	As per IS / BS Standards (commonly BS 5041 or similar for London pattern)

📐 Specifications:

Parameter	Details
Product	Hand Controlled Nozzle (London Pattern)
Type	Hand-Controlled / Shut-Off Type
Pattern	London Pattern
Size	63 mm
Inlet Connection	63 mm Male Instantaneous Coupling
Material of Construction	Gunmetal (G.M) – High-grade bronze alloy
Finish	Natural Gunmetal / Polished
Control Type	Hand Lever Operated (Quarter-turn or Rotary handle)
Working Pressure	Up to 7 kg/cm² (100 psi)
Flow Output	Varies based on jet diameter (typically 300–500 LPM)
Usage	General-purpose firefighting – Industrial, Municipal, Marine
Jet Type	Solid Jet / Variable Jet (depending on model)
Standards	As per IS / BS Standards (commonly BS 5041 or similar for London pattern)
