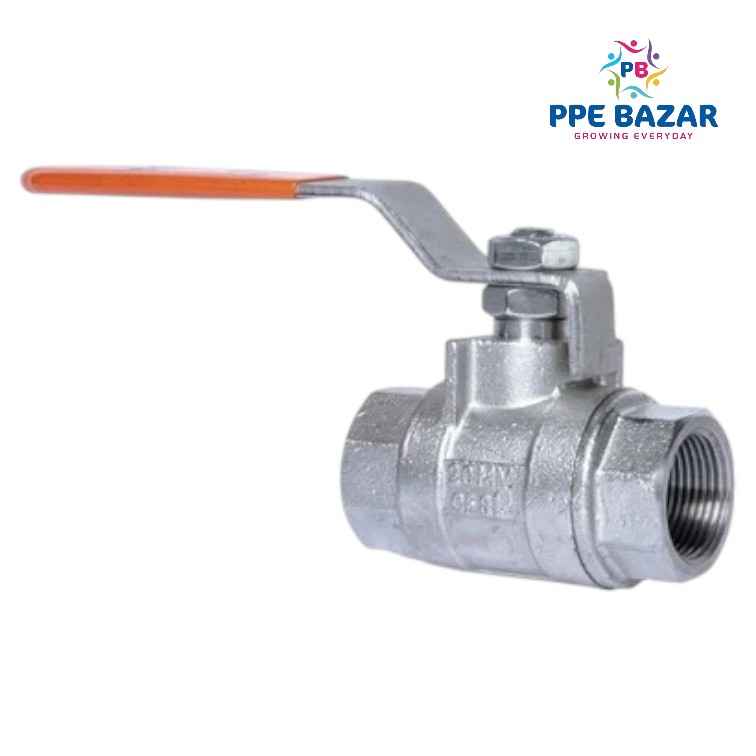

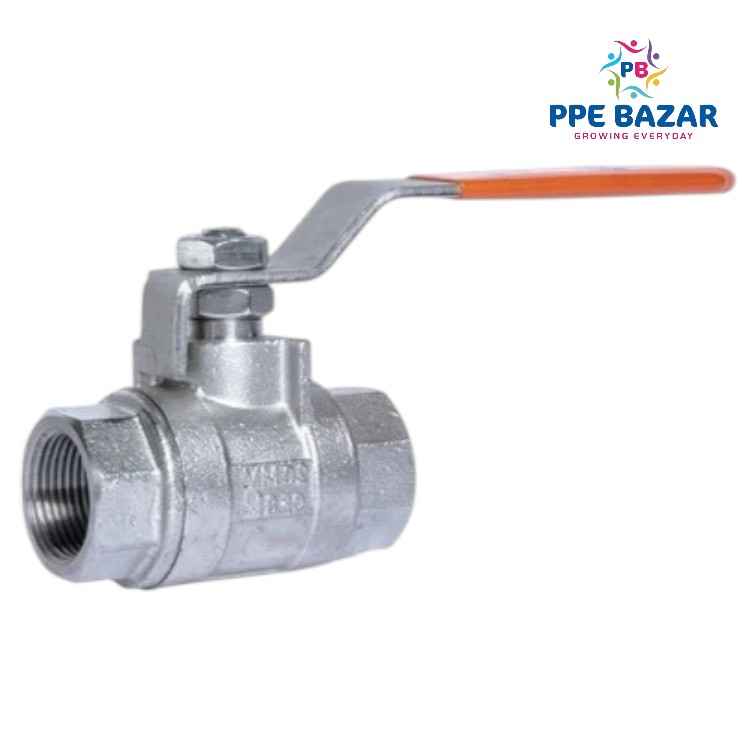

The Gun Metal 304 Ball Valve is, manufactured by Spiral, is a heavy-duty valve engineered for efficient shut-off and control in fluid pipelines. Featuring a durable Gun Metal body and precision-machined SS304 ball, it offers excellent corrosion resistance, smooth operation, and a long service life.
It is widely used in marine systems, firefighting, industrial processing, and water distribution networks, especially where reliability and durability are critical.
📐 Specifications:
| Parameter |
Details |
| Product Type |
Ball Valve |
| Size |
50 mm (2”) |
| Body Material |
Gun Metal (as per IS 318 Gr. LTB2) |
| Ball Material |
Stainless Steel SS304 |
| Stem Material |
Stainless Steel SS304 |
| End Connection |
Screwed Ends (BSPT - British Standard Pipe Thread) |
| Operation |
Lever Operated (Quarter Turn) with MS/SS Handle + PVC Grip |
| Seat Material |
PTFE (Teflon) |
| Working Pressure |
Up to 20 bar (may vary by system/application) |
| Temperature Range |
-10°C to +180°C |
| Design Standard |
As per IS / BS Standards |
| Make/Brand |
Spiral |
| Applications |
Water Supply, Oil & Gas, Marine, Firefighting, Industrial Utility Lines |
📐 Specifications:
| Parameter |
Details |
| Product |
Ball Valve |
| Size |
25 mm (1 inch) |
| Material |
Stainless Steel 304 (SS 304) |
| Ball Material |
SS 304 (CNC finished for smooth operation) |
| Seat Material |
PTFE (Teflon) |
| End Connection |
Screwed Ends – BSPT / NPT (as required) |
| Port Type |
Full Bore (standard) / Reduced Bore (optional) |
| Handle Type |
SS Lever Handle with PVC Insulation Grip |
| Operation |
Manual, quarter-turn |
| Working Pressure |
Up to 40 bar (varies by manufacturer) |
| Temperature Range |
-20°C to +200°C |
| Thread Standard |
BSP / NPT |
| Finish |
Satin / Polished SS Finish |
| Applications |
Water treatment, Chemical handling, Food & beverage, Oil & Gas |
| Testing Standards |
API 598 / EN 12266-1 / IS Compliant |
📐 Specifications:
| Parameter |
Details |
| Product |
Ball Valve |
| Size |
20 mm (¾ inch) |
| Material |
Stainless Steel 304 (SS 304) |
| Ball Material |
SS 304 (Precision-machined) |
| Seat Material |
PTFE (Teflon) |
| End Connections |
Screwed Ends (BSPT / NPT as specified) |
| Port Type |
Full Bore (standard) / Reduced Bore (optional) |
| Handle Type |
Stainless Steel lever with PVC sleeve |
| Operation |
Quarter-turn manual operation |
| Working Pressure |
Up to 40 bar (depends on manufacturer/design) |
| Temperature Range |
-20°C to +200°C |
| Thread Standard |
BSP / NPT |
| Finish |
Natural SS finish (matte/satin/polished) |
| Applications |
Chemical processing, Water supply, Food & beverage, Oil & gas |
| Testing Standard |
API 598 / EN 12266-1 / IS Standards |
