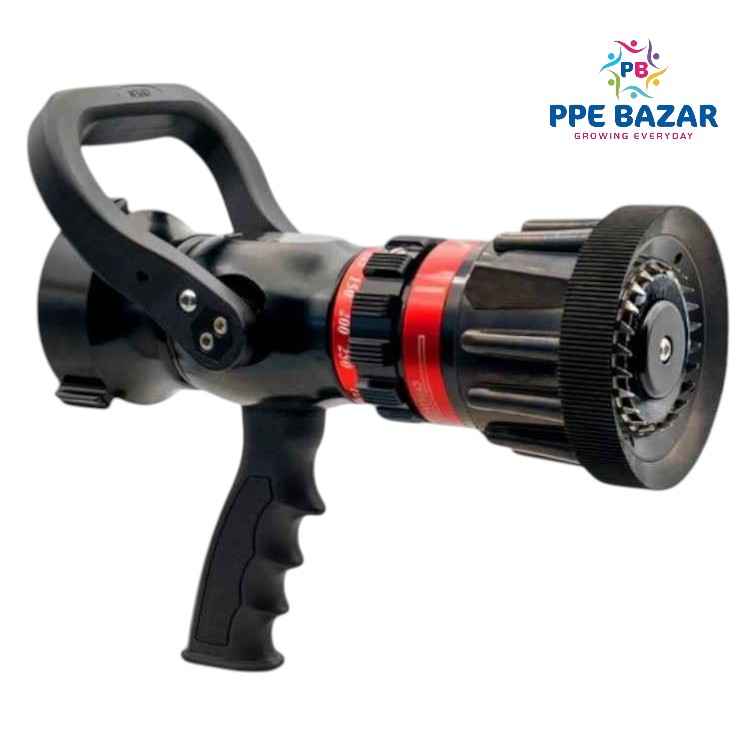

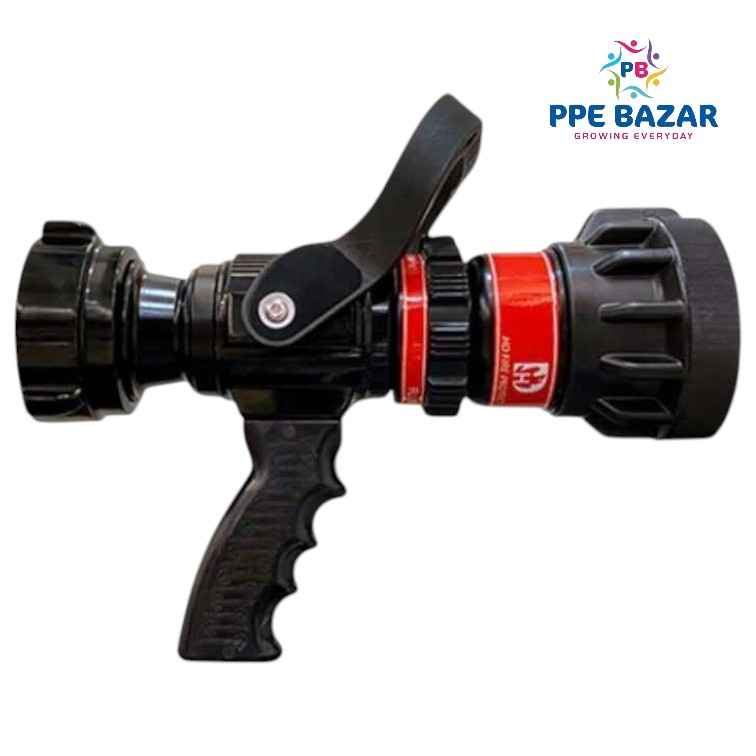

Handline Fire Hose Nozzle model CG Size: 2-1/2" (65 mm) Operating Pressure: 50-100 PSI (3.5-7 Bar) Material: Hard Anodized Aluminum Spinning Teeth: Stainless Steel Finish: Black Inlet Connection: NH, BS336 OR STORZ"
0
0 Reviews0 Orders 0 Wish listed
₹10,750.00 + GST
MRP ₹12,500.0014 % Off
The Model CG Handline Fire Hose Nozzle is a heavy-duty, precision-engineered firefighting nozzle designed for structural firefighting, industrial applications, and municipal fire brigades. Featuring a hard-anodized aluminum body and stainless steel spinning teeth, it delivers superior durability and smooth operation under high-pressure conditions. Compatible with NH, BS336, or Storz connections, it offers versatility for global firefighting standards.
Technical Specifications
1. General Specifications
Parameter
Specification
Model
CG Series
Size
2-1/2" (65 mm)
Operating Pressure
50–100 PSI (3.5–7 bar)
Max Pressure
150 PSI (10.3 bar)
Flow Rate
250–600 GPM (950–2,270 L/min)
Material (Body)
Hard-Anodized Aluminum (Corrosion-Resistant)
Spinning Teeth
Stainless Steel (Anti-Galling, Smooth Rotation)
Finish
Black (Mil-Spec Anodized)
Weight
~3.5 lbs (1.6 kg)
2. Connection Types (Selectable)
✔ NH (National Hose) – Standard US fire hose threading ✔ BS336 (British Standard) – UK/EU instantaneous coupling ✔ Storz (DIN 14800) – Quick-connect coupling (65mm)
3. Nozzle Features
Adjustable Flow – Smooth rotation for straight stream to wide fog
Ergonomic Grip – Contoured handles for operator control
Heat Resistance – Withstands high temperatures without deformation
Impact-Resistant – Reinforced design for rugged use
4. Performance Data
Pressure (PSI/bar)
Flow Rate (GPM/LPM)
Effective Reach
50 PSI (3.5 bar)
250 GPM (950 LPM)
75 ft (23 m)
75 PSI (5.2 bar)
400 GPM (1,500 LPM)
100 ft (30 m)
100 PSI (7 bar)
600 GPM (2,270 LPM)
120 ft (37 m)
5. Standards & Certifications
NFPA 1964 (Fire Hose Nozzles)
EN 15182-2 (European Firefighting Nozzles)
DIN 14800 (Storz Compatibility)
LPCB Certified (Optional)
Applications
✔ Structural Firefighting (Buildings, warehouses) ✔ Industrial Fire Protection (Oil refineries, chemical plants) ✔ Municipal Fire Brigades (Compatible with hydrant systems) ✔ Airport Crash Rescue (Fog pattern for fuel fires)
Why Choose Model CG?
✅ Ultra-Durable – Hard-anodized aluminum resists corrosion and abrasion ✅ Global Compatibility – Works with NH, BS336, or Storz connections ✅ Precision Control – Smooth adjustment from jet to fog spray ✅ Low Maintenance – Stainless steel teeth prevent seizing
