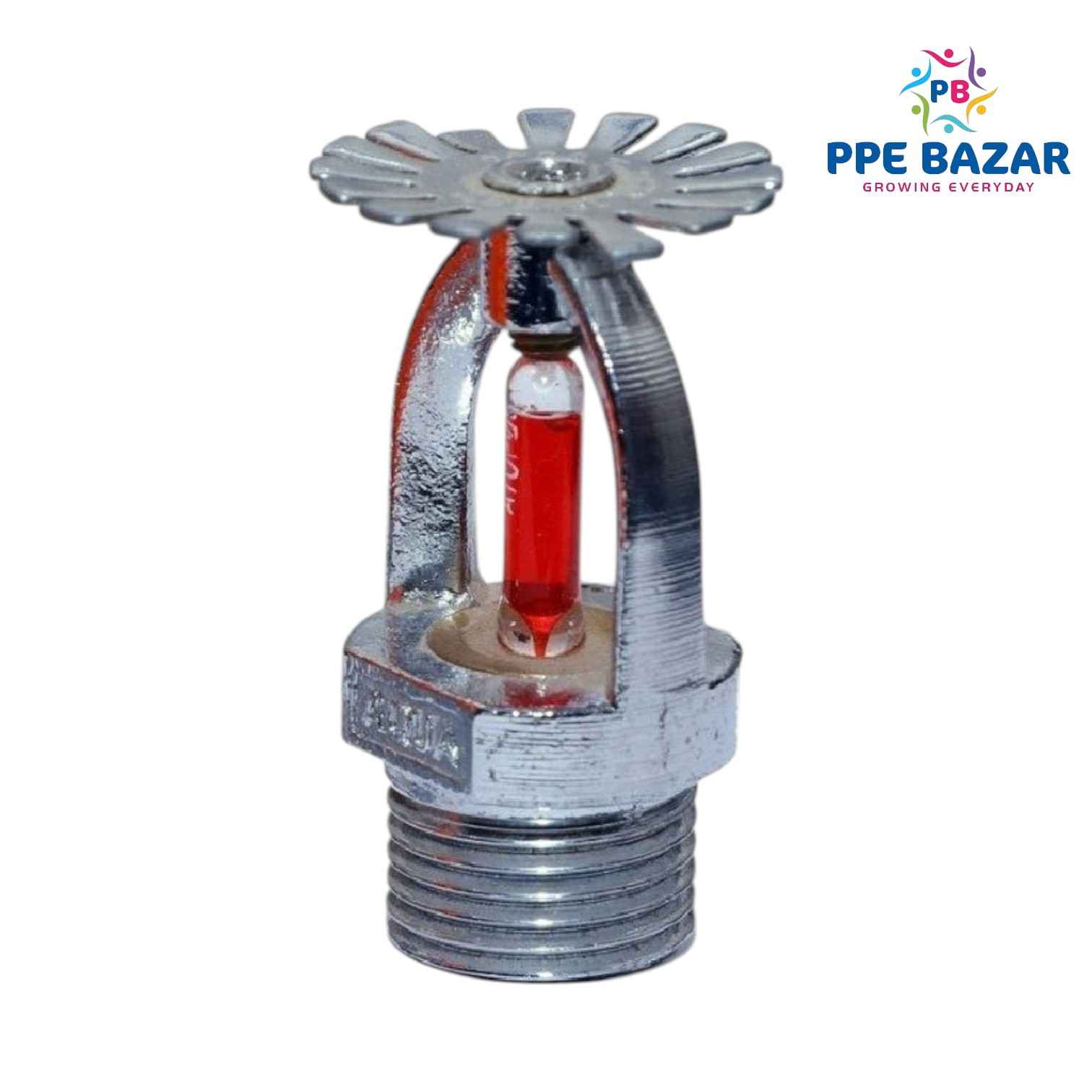

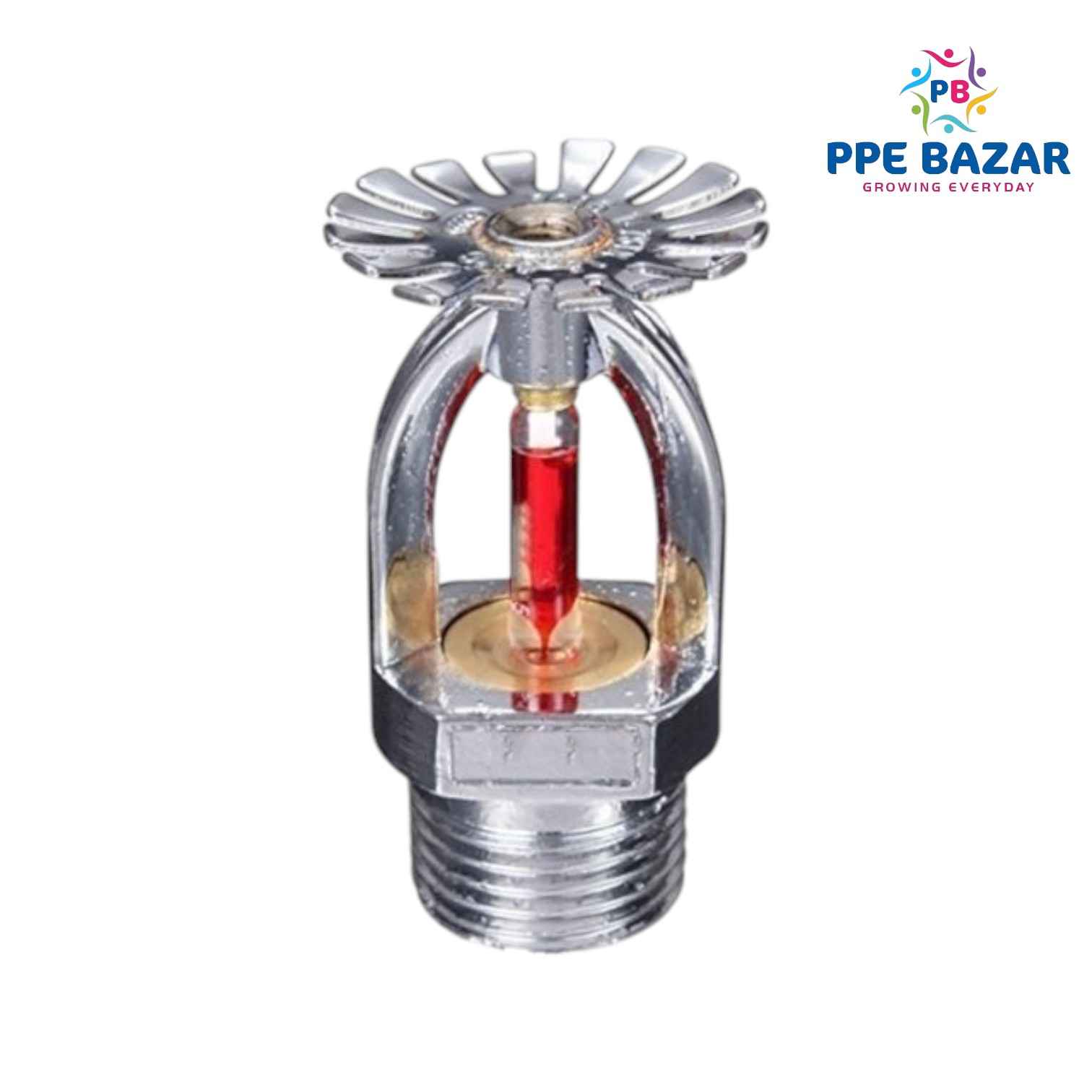

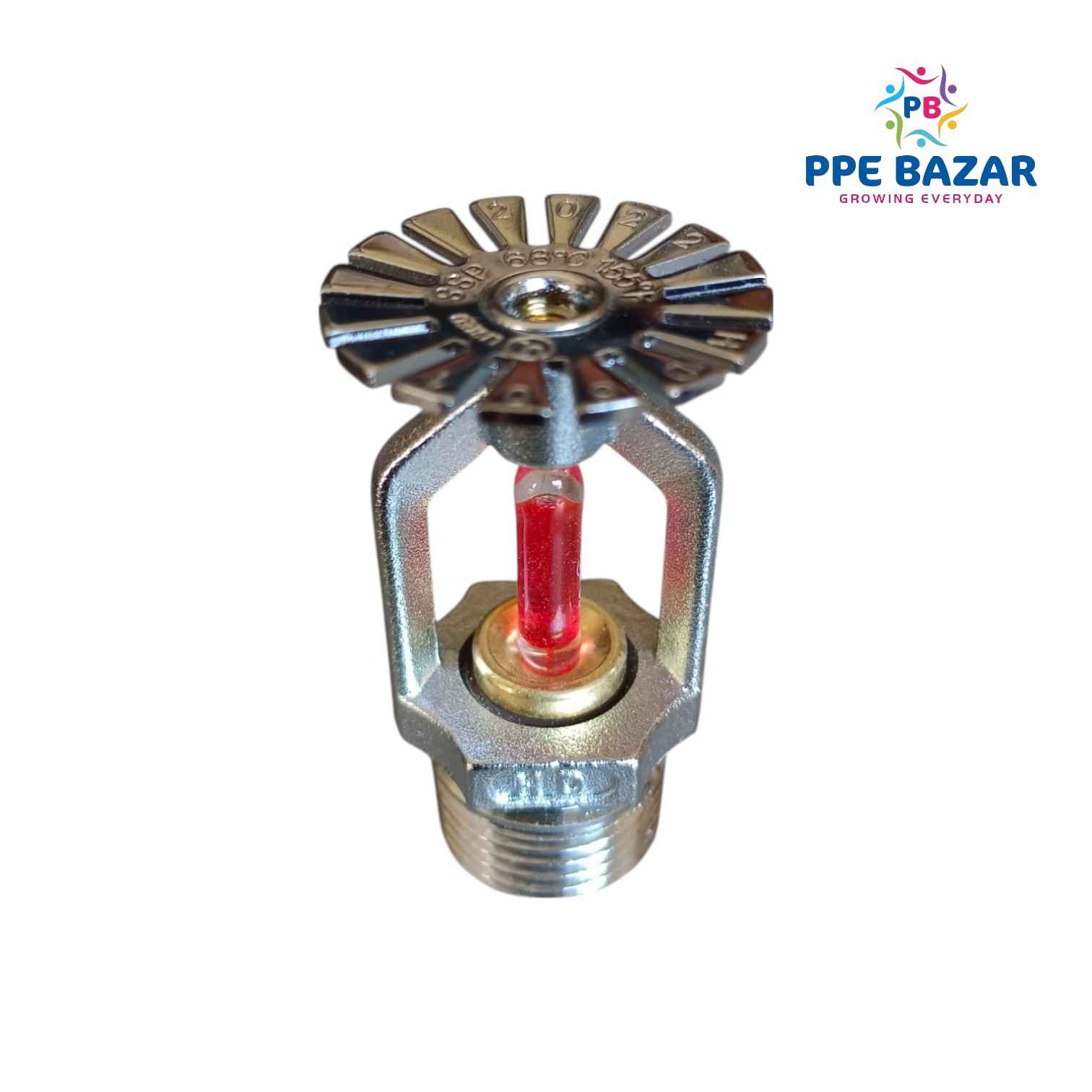

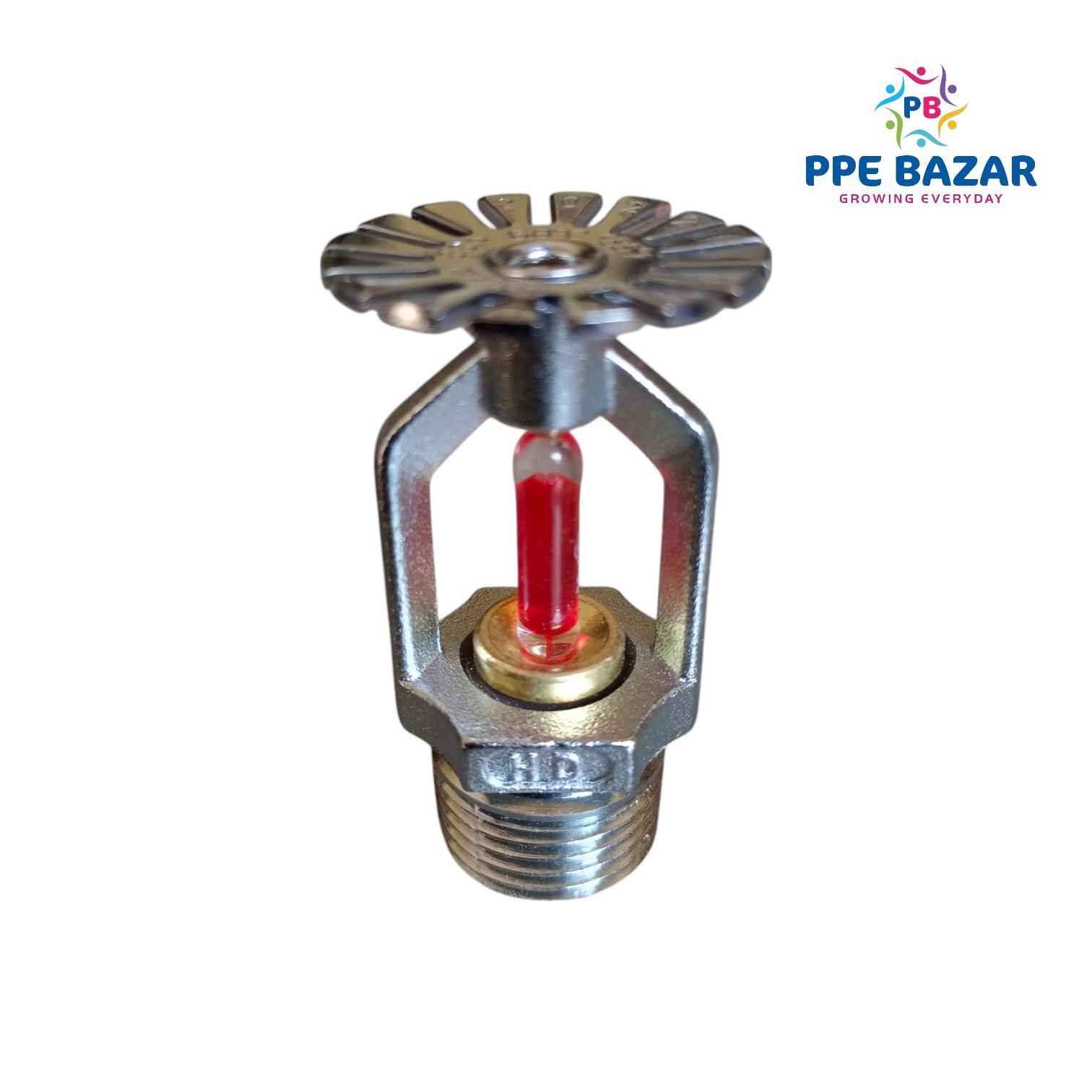

The HD Pendent Sprinkler, Model HD601 is a high-quality fire suppression device designed for standard coverage applications in a wide range of commercial and industrial environments. UL Listed for compliance with rigorous safety standards, this sprinkler ensures reliable fire response performance while offering a sleek chrome-plated finish for visual appeal in modern interiors.
Equipped with a standard response element, it activates at 68 °C (155 °F), discharging water in a downward spray pattern to effectively suppress fires in areas such as offices, hotels, retail stores, hospitals, warehouses, and educational facilities.
🔧 Key Features:
-
Standard Response activation for dependable fire control.
-
Chrome plated finish enhances aesthetics and corrosion resistance.
-
K-Factor 5.6 US (80 metric) ensures optimal water distribution.
-
1/2" BSPT thread for secure and compatible pipe connections.
-
UL Listed for adherence to recognized fire safety standards.
-
Designed for pendent ceiling installation in accordance with NFPA 13 and UL guidelines.
📐 Technical Specifications:
| Parameter |
Details |
| Model |
HD601 |
| Type |
Pendent Sprinkler (Standard Coverage) |
| Temperature Rating |
68 °C (155 °F) |
| Response Type |
Standard Response |
| K-Factor |
5.6 US (80 metric) |
| Thread Size |
1/2" BSPT (British Standard Pipe Taper) |
| Finish |
Chrome Plated |
| Spray Pattern |
Downward (Pendent type) |
| Nominal Orifice Size |
15 mm (approx.) |
| Mounting Position |
Ceiling (Pendent) |
| Approval |
UL Listed |
| SIN (Sprinkler ID No.) |
HD601 |
| Coverage |
Standard (per NFPA 13 / UL) |
| Material |
Brass body with chrome plating |
| Applications |
Offices, hotels, retail, warehouses, hospitals, schools |
