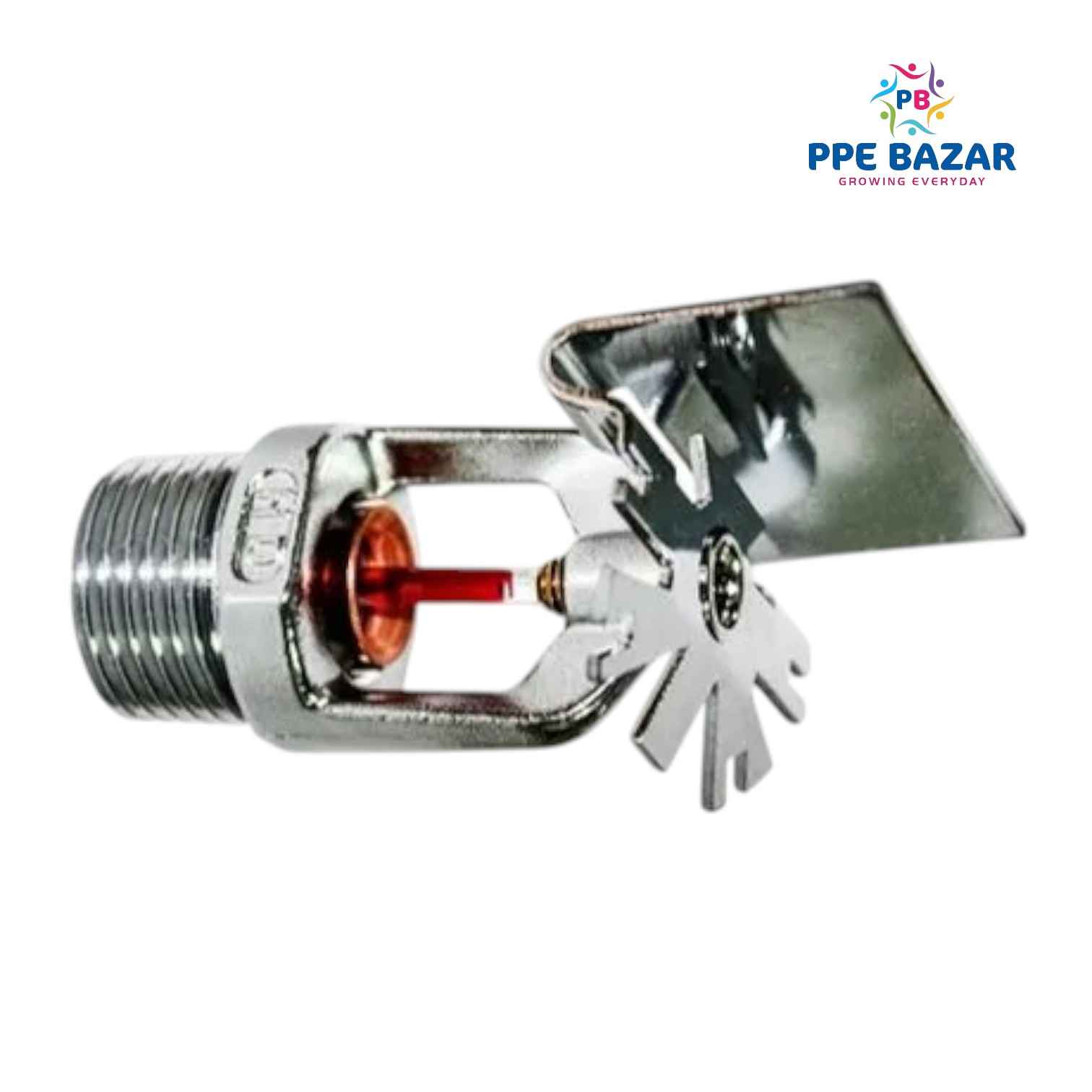

This horizontal sidewall sprinkler is designed for fire protection applications where conventional pendant or upright sprinklers cannot be installed. The chrome-plated brass construction provides durability and corrosion resistance while maintaining an aesthetically pleasing appearance. With a standard 68°C (155°F) temperature rating and K-factor of 5.6 (80), it delivers reliable performance for standard coverage applications in wet pipe systems.
Technical Specifications:
- Basic Parameters:
- Type: Horizontal sidewall (SSW)
- Orientation: Horizontal mounting (wall installation)
- Temperature Rating: 68°C (155°F) standard response
- Thread Size: ½" BSPT (British Standard Pipe Tapered)
- K-Factor: 5.6 (80)
- Flow Rate: 80.3 L/min at 2.07 bar (5.6 GPM at 30 psi)
- Construction Details:
- Body Material: Brass with chrome plating
- Finish: Polished chrome (decorative and corrosion-resistant)
- Deflector Type: Standard sidewall pattern
- Activation Element: Glass bulb (standard response)
- Performance Characteristics:
- Response Classification: Standard response
- Coverage Pattern: Standard coverage (refer to manufacturer spacing guidelines)
- Maximum Working Pressure: 12 bar (175 psi)
- Water Distribution: Optimized for horizontal sidewall application
- Certifications & Compliance:
- Non-UL Listed (manufactured to industry standards)
- Compatible with NFPA 13 requirements for sidewall sprinklers
- Suitable for wet pipe systems
- Installation Requirements:
- Mounting Height: As per local codes and system design
- Spacing: Typically 10-16 ft (3-4.8 m) depending on hazard classification
- Clearance Requirements: Minimum 4" (100 mm) from ceiling
- Application Guidelines:
- Ideal for corridors, hotel rooms, and residential applications
- Suitable for areas with finished ceilings where pendant sprinklers are undesirable
- Recommended for light hazard occupancies
Additional Information:
- Includes integral seal for leak prevention
- Designed for easy installation and maintenance
- Not for use in dry pipe or pre-action systems unless specifically approved
- Manufacturer's warranty applies (typically 1 year)
