Description:

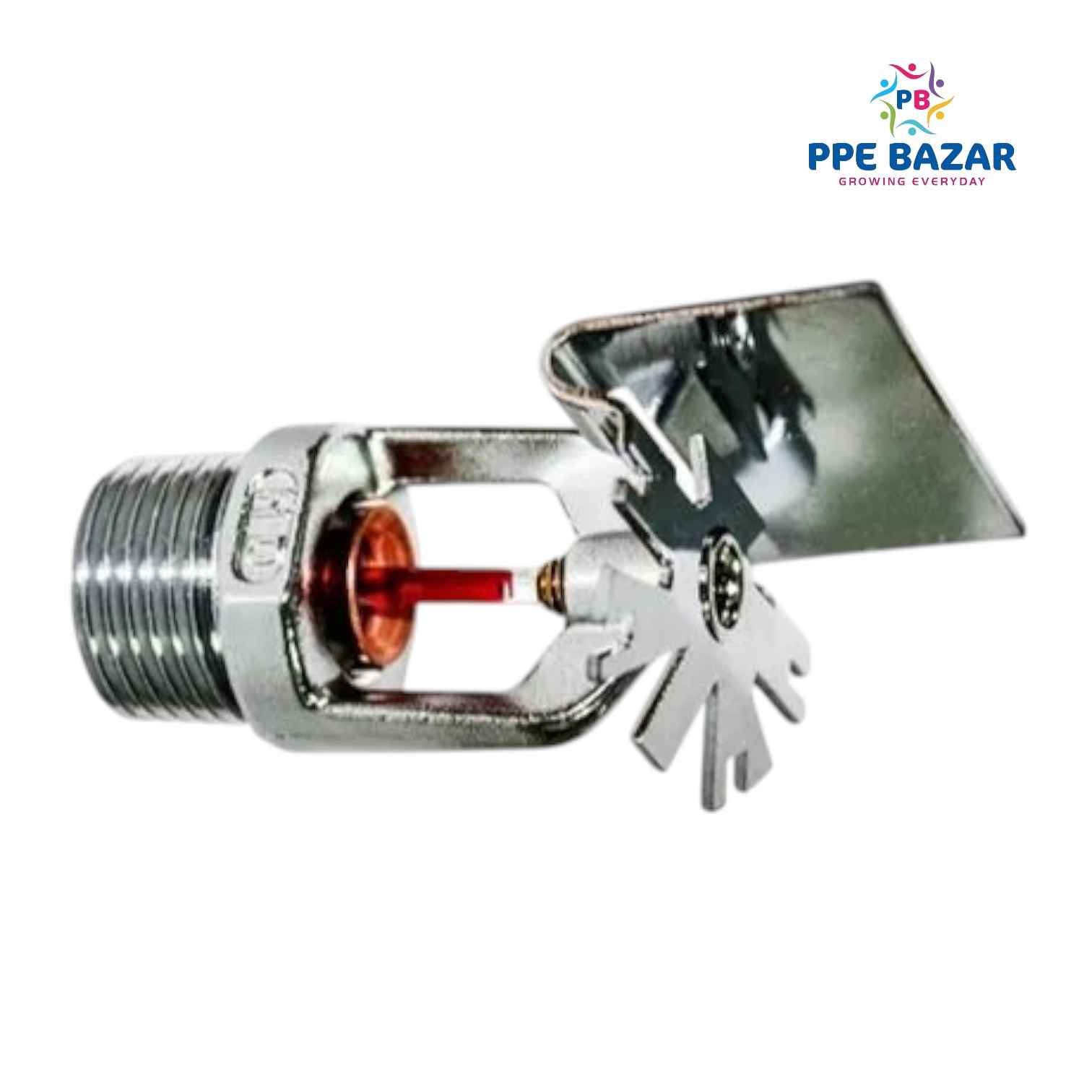

This Horizontal Sidewall Sprinkler is designed for fire protection in areas where pendant or upright sprinklers are impractical. It features a standard response thermal element and provides standard coverage for effective fire suppression. The sprinkler has a chrome-plated finish for corrosion resistance and aesthetic appeal, making it suitable for visible installations.

Specifications:

• Type: Horizontal Sidewall
• Thermal Rating: 68°C (155°F) – Standard Response
• Thread Size: 1/2" BSPT (British Standard Pipe Tapered)
• K-Factor: K-5.6 (80) – Provides a flow rate of 80.3 L/min at 2.07 bar (5.6 GPM at 30 psi)
• Coverage: Standard (as per NFPA 13/UL 199 standards)
• Orientation: Horizontal (sidewall-mounted)
• Finish: Chrome Plated (corrosion-resistant, decorative)
• Activation: Glass bulb (standard response)
• Pressure Rating: Typically 175 psi (12 bar) max (verify manufacturer specs)
• Listings/Certifications: UL Listed (compliant with UL 199)
• Applications: Hotels, offices, residential buildings, corridors, and other spaces requiring sidewall sprinkler installation

Installation Notes:

• Suitable for wet pipe systems
• Must be installed per NFPA 13 and local fire codes
• Ensure proper spacing for standard coverage (typically 10-16 ft spacing, depending on hazard classification)
