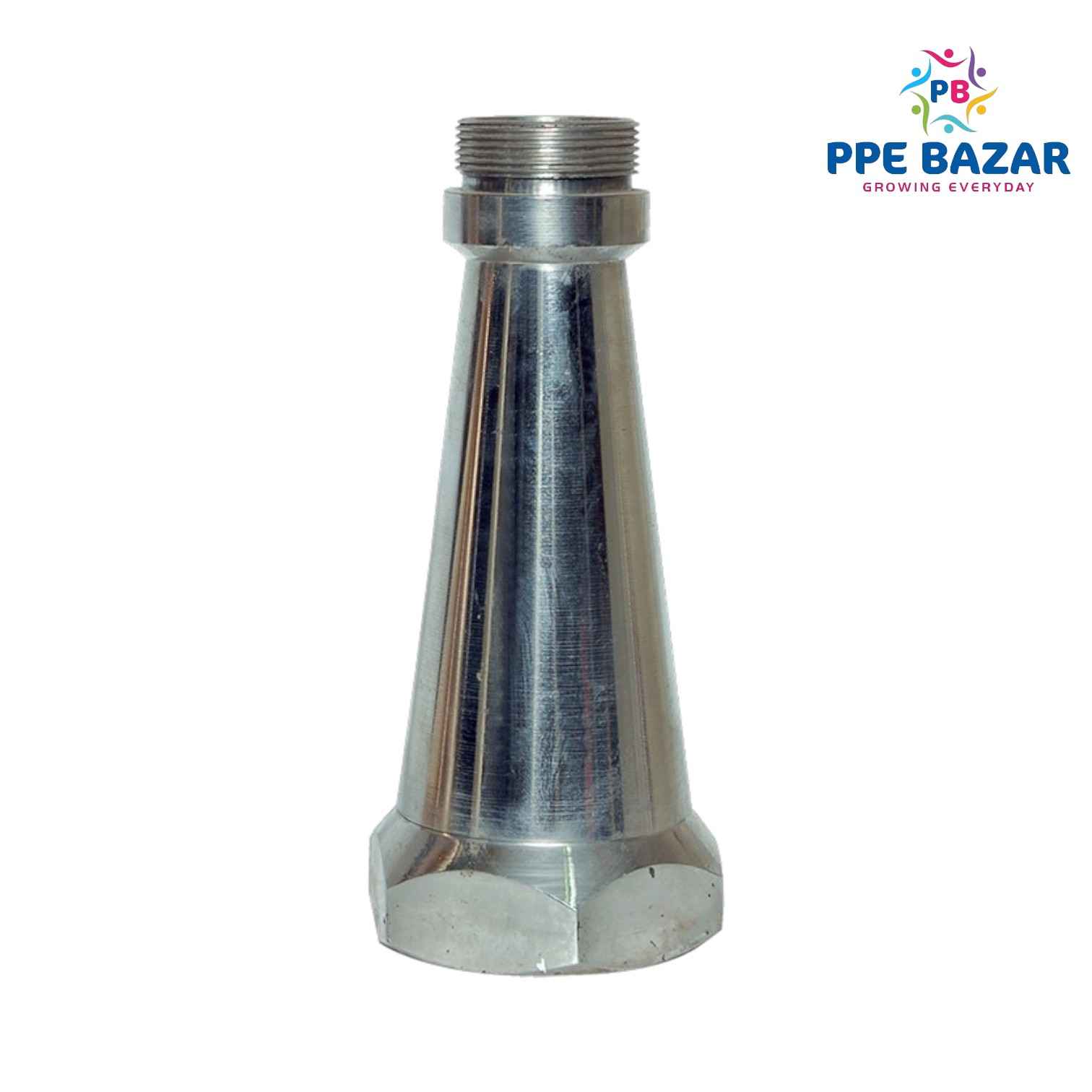

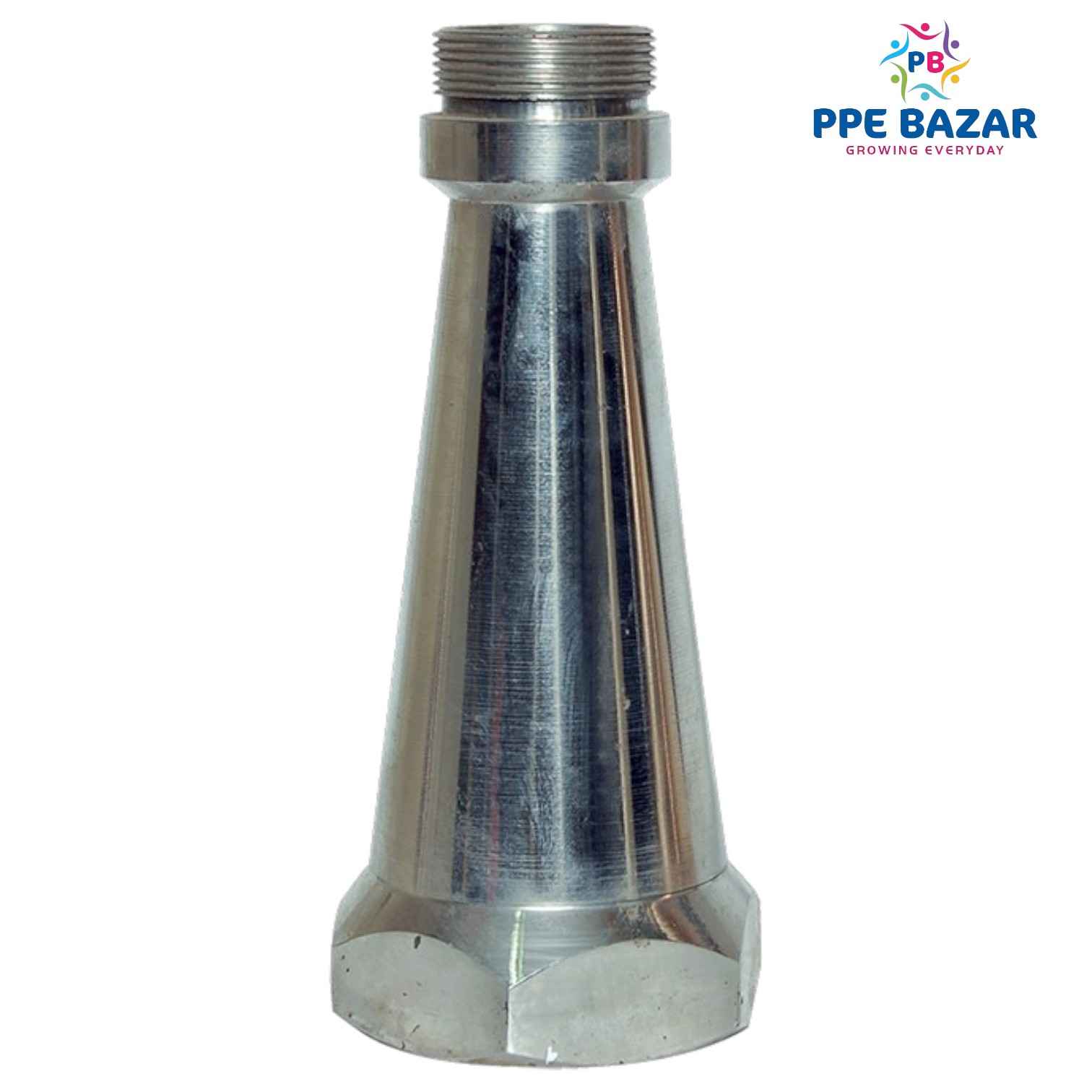

The Hydrant Aluminum Water Monitor Nozzle is a high-performance, directional firefighting nozzle designed to deliver powerful water or foam streams over long distances. Made from lightweight and corrosion-resistant aluminum alloy, this nozzle is ideal for mounting on hydrant standposts, mobile monitors, or fixed monitor systems. It allows for adjustable flow patterns, offering jet and spray modes for versatile firefighting operations.
Technical Specifications:
| Feature |
Details |
| Material |
High-Grade Aluminum Alloy |
| Nozzle Type |
Jet / Fog / Adjustable Stream |
| Inlet Size |
2.5” (63mm) / 3” / 4” BSP/NPT Female Thread |
| Discharge Pattern |
Solid Jet / Fog / Adjustable Spray |
| Flow Rate |
350 – 1750 LPM (Liters per Minute) |
| Operating Pressure |
7 – 10 kg/cm² (100 – 150 PSI) |
| Throw Range |
Up to 45 – 60 meters (depending on pressure) |
| Swivel Joint |
360° horizontal rotation and 75° vertical travel |
| Weight |
Approx. 5 – 8 kg (varies by model) |
| Finish |
Natural / Hard Anodized / Powder Coated Red |
| Mounting |
Flange / Threaded / Hose Coupling Compatible |
| Application |
Suitable for water or foam application |
| Corrosion Resistance |
High – suitable for marine and industrial use |
| Compliance |
IS 8442 / UL / FM Approved (subject to model) |
Key Features:
- Durable Aluminum Construction: Lightweight yet strong, ideal for industrial use
- Adjustable Flow Control: Allows user to switch between solid jet and fog spray
- Long Throw Range: Capable of covering large areas during firefighting
- 360° Rotation: Full directional control for targeting specific fire zones
- Low Maintenance: Corrosion-resistant design for extended outdoor use
- Easy Installation: Compatible with standard hydrant or monitor outlets
