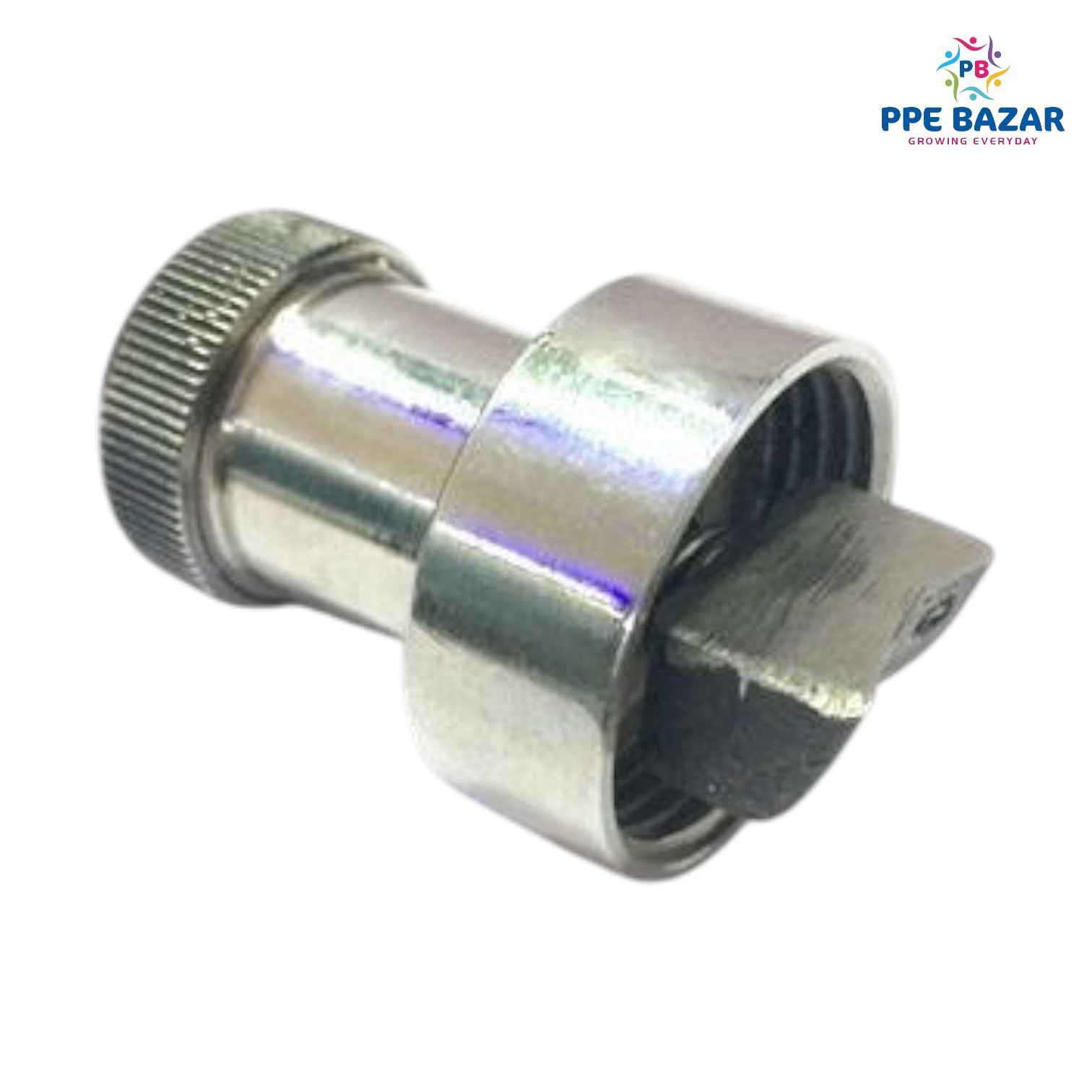

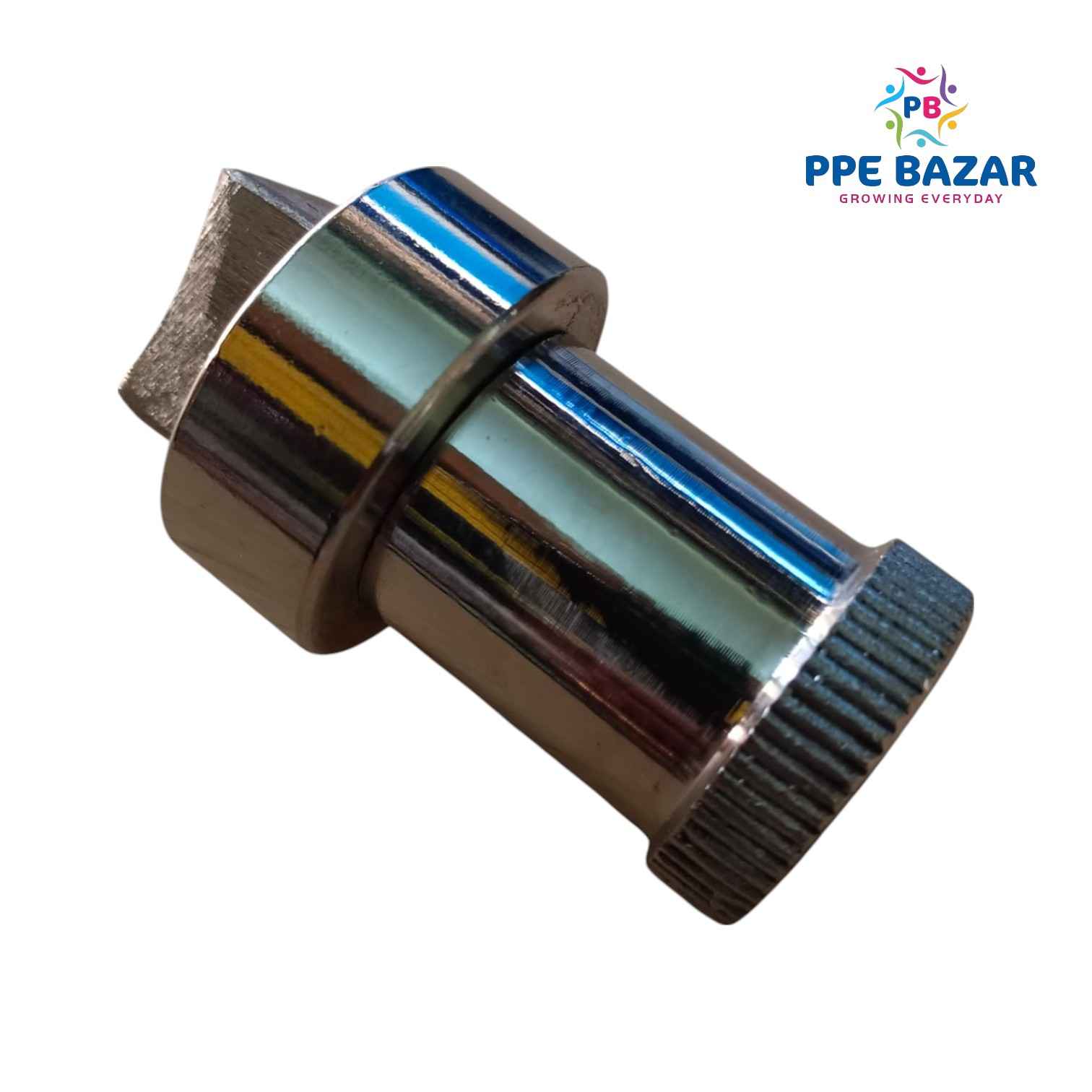

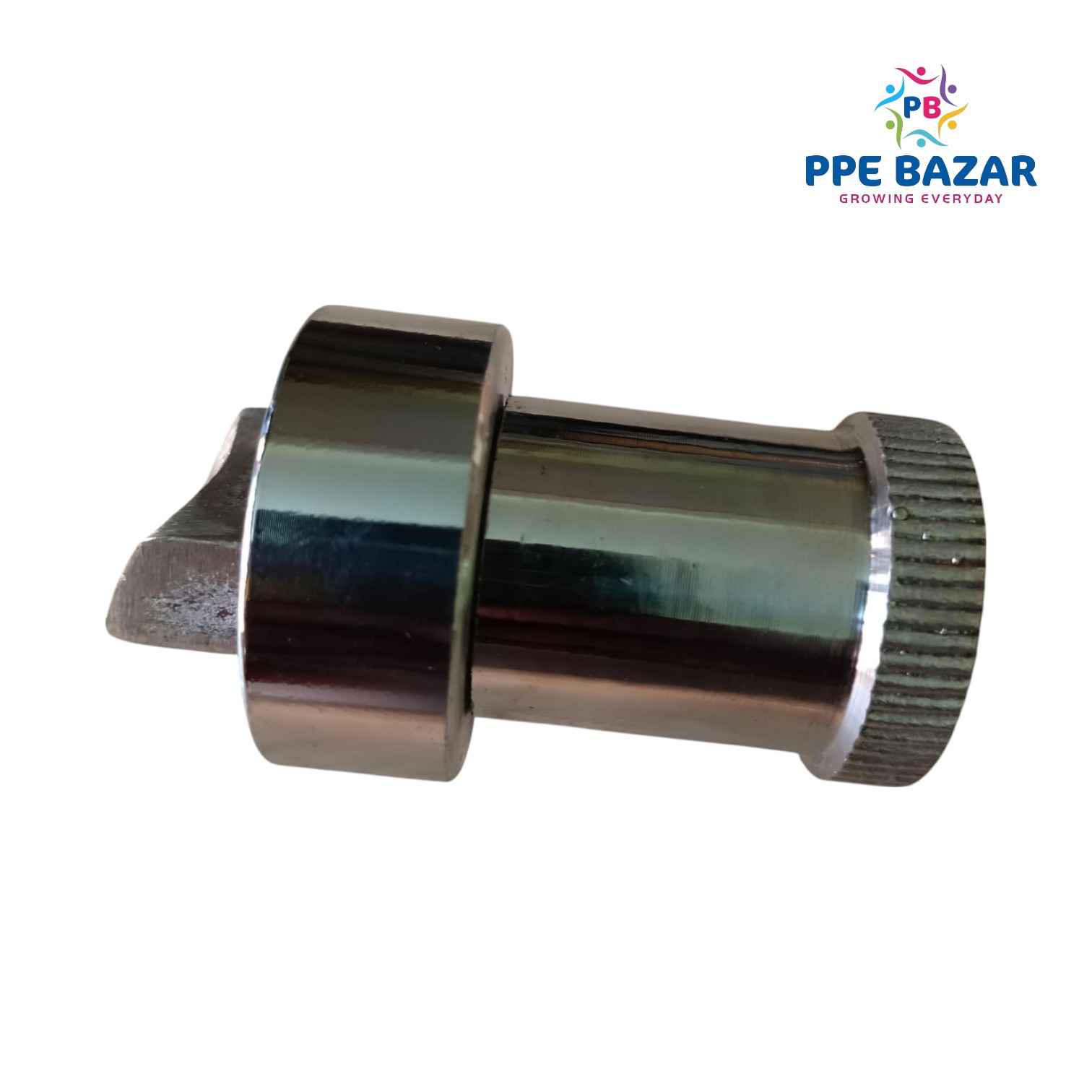

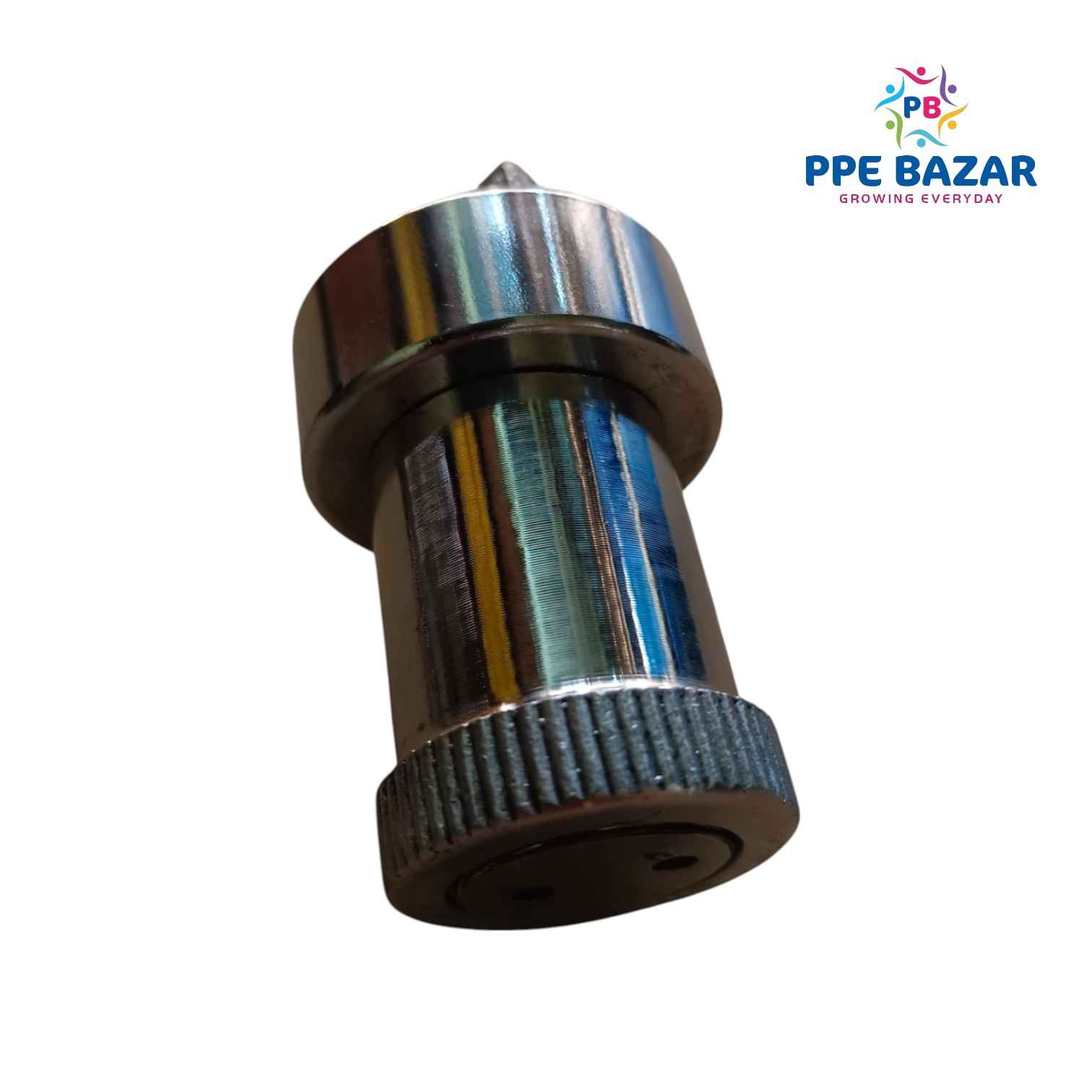

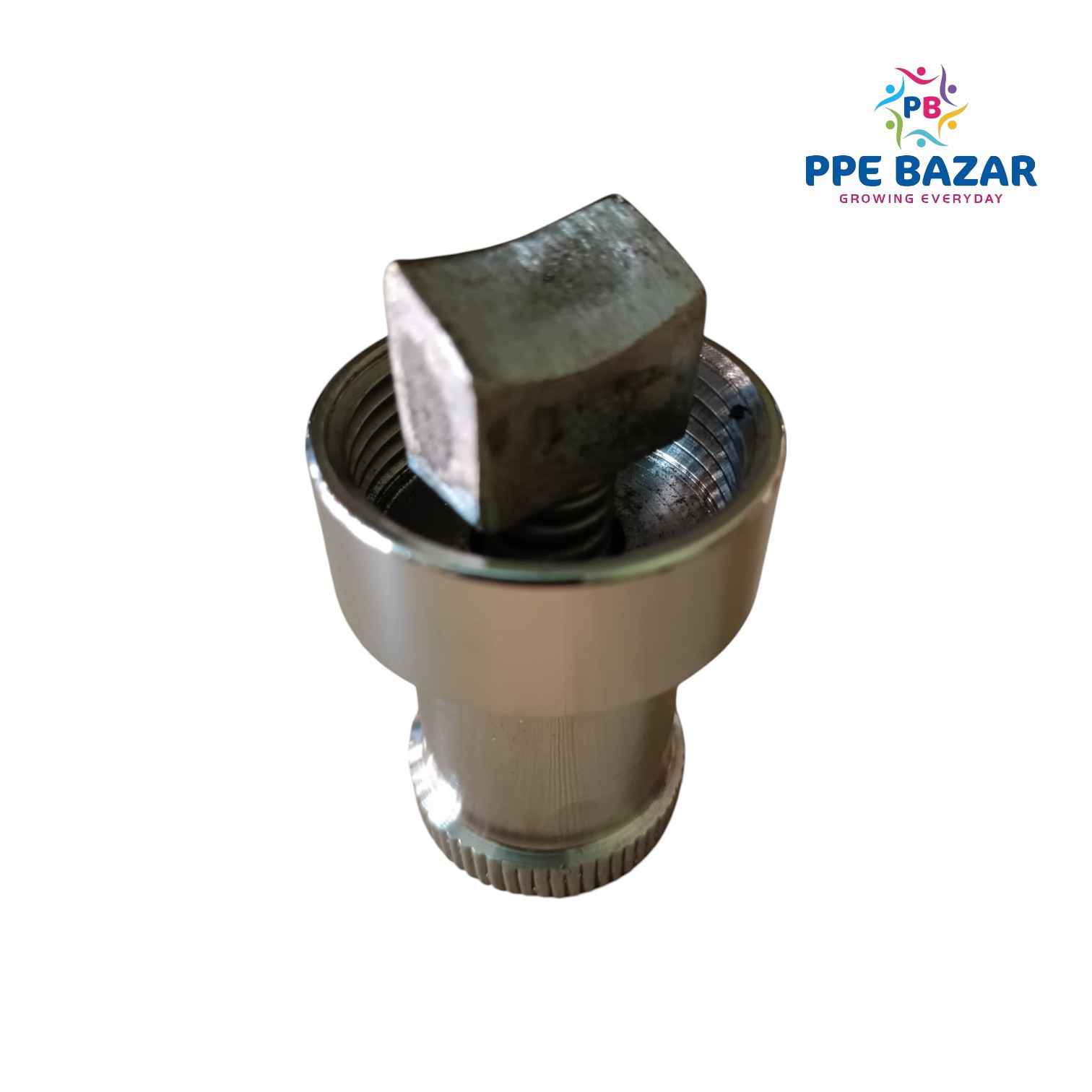

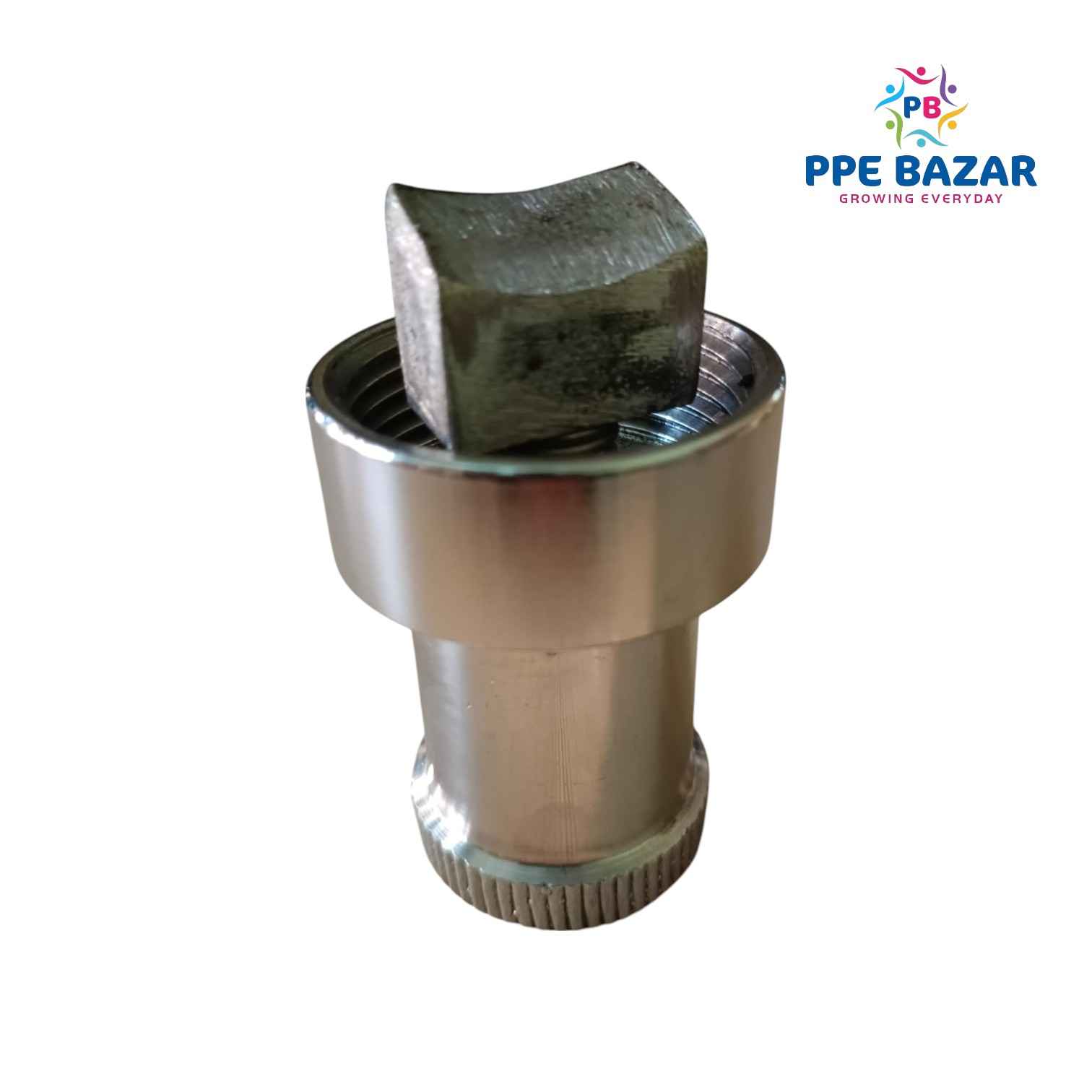

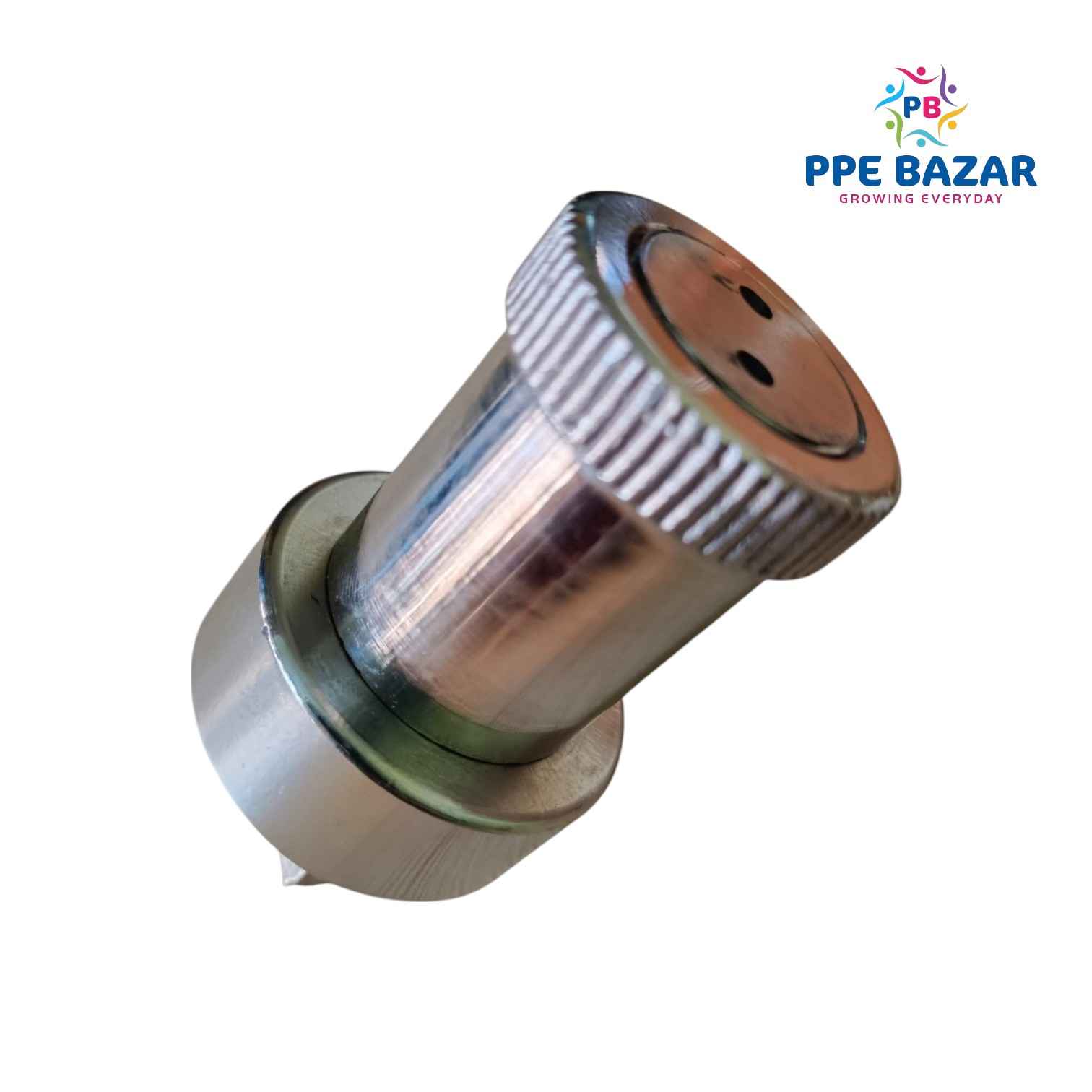

Stainless Steel (S.S.) Hydrant Lugs are heavy-duty mounting components designed for securing fire hydrants to pipelines or concrete foundations. Manufactured from high-grade AISI 304/316 stainless steel, these lugs provide superior corrosion resistance, structural strength, and long-term durability in harsh environments.
Key Features
✔ Material: AISI 304/316 Stainless Steel (rust-proof & chemical-resistant)
✔ Design: Hot-forged or CNC-machined for precision fit
✔ Load Capacity: High tensile strength for secure hydrant anchoring
✔ Finish: Polished / Satin / Electropolished (optional anti-corrosion coating)
✔ Compliance: Meets AWWA, NFPA, and ISO standards
Technical Specifications
| Parameter |
Specification |
| Material |
AISI 304 / 316 Stainless Steel |
| Type |
Anchor Lugs (Flange/Base Mount) |
| Size Range |
M16, M20, M24 (Custom Sizes Available) |
| Thread Type |
Metric / UNC / UNF (As per requirement) |
| Tensile Strength |
≥ 500 MPa |
| Surface Finish |
Polished / Sandblasted / Passivated |
| Corrosion Resistance |
ASTM A276 / A479 Compliant |
| Standards |
AWWA C502, NFPA 291, ISO 3506 |
Design Features
- Reinforced Bolt Holes – Prevents deformation under high stress
- Counterbored Slots – Allows flush bolt installation
- Welding/Threaded Options – For permanent or removable fixing
- UV & Weather Resistant – Suitable for outdoor installations
Performance Benefits
✅ Extreme Durability – Resists rust, chemicals, and seawater exposure
✅ High Load-Bearing – Secures hydrants against vibration & pressure surges
✅ Low Maintenance – No painting or galvanizing required
✅ Universal Fit – Compatible with most hydrant models
Applications
- Underground fire hydrant installations
- Municipal water supply networks
- Industrial fire protection systems
- Marine & coastal hydrant setups
Installation Guidelines
- Mounting: Weld or bolt to hydrant base/pipeline flange
- Torque Specs: Tighten bolts to 50-70 Nm (lubricate threads)
- Alignment: Ensure lug slots align with anchor bolts
