1. General Description:

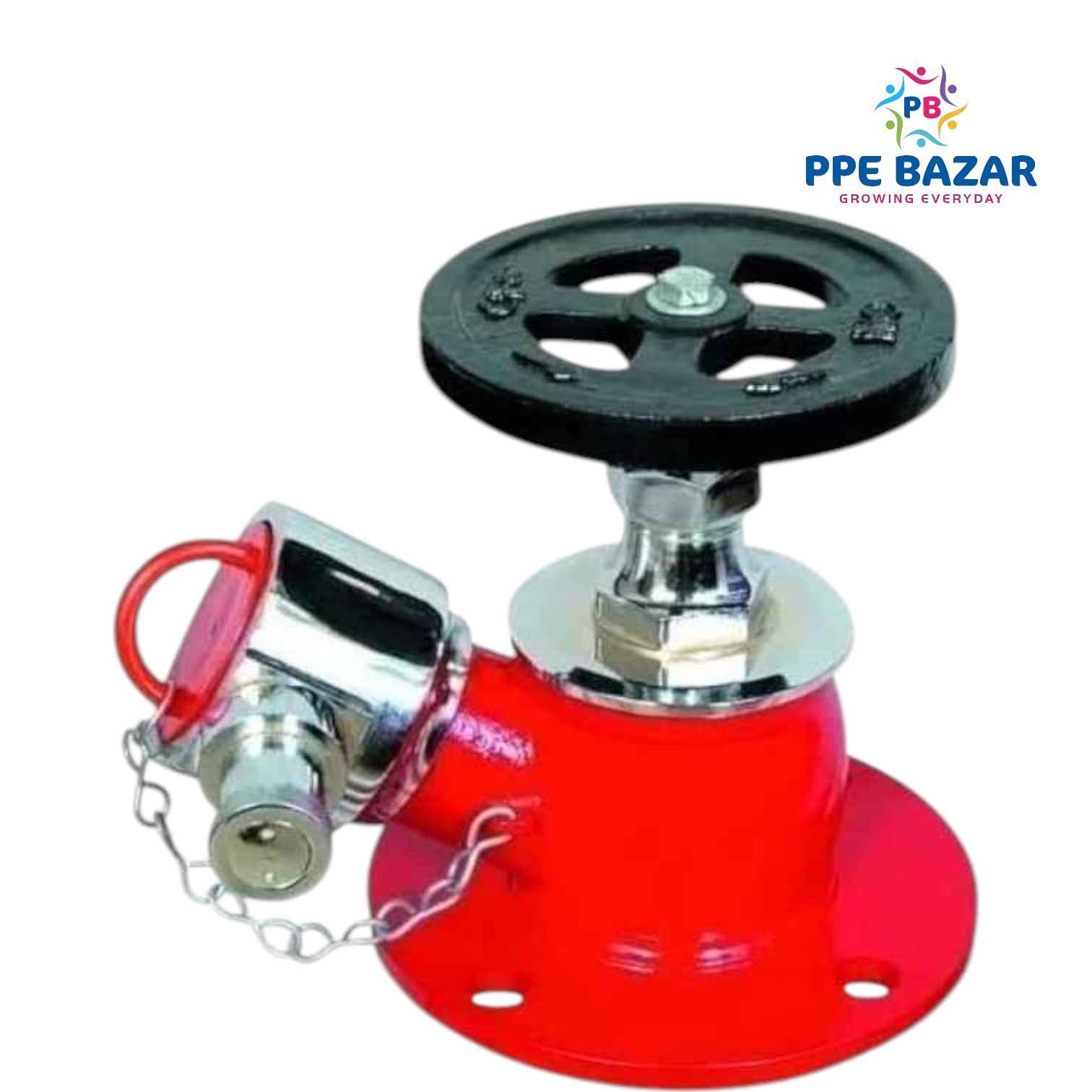

The Single-Headed Hydrant Valve is a high-performance firefighting component used in fire hydrant systems for controlled water supply to firefighting hoses. Constructed from stainless steel (SS-304), it offers exceptional corrosion resistance, durability, and strength, making it ideal for industrial, commercial, and municipal fire protection applications.
Manufactured as per IS: 5290 Type A and hydrostatically tested, this hydrant valve ensures reliable operation under high-pressure firefighting conditions.
2. Technical Specifications:
- Type: Single-Headed Hydrant Valve (Type A)
- Material: Stainless Steel (SS-304)
- Standard Compliance: IS: 5290 Type A (ISI Marked)
- Inlet Size: 75mm flanged inlet (compatible with standard fire mains)
- Outlet Size: 63mm Female Instantaneous outlet
- Hand Wheel Material: Cast Iron (C.I.) – Durable & easy to operate
- Blank Cap: PVC with chain – Protects against dust and contamination
- Body Coating: Duly painted with 2 coats of superior quality paint for corrosion resistance
- Hydrostatic Pressure Test:
- Body Pressure Test: 21 kgf/cm²
- Seat Pressure Test: 14 kgf/cm²
- Flow Rate: Minimum 900 LPM (Liters per Minute) at 7 kgf/cm²
3. Key Features & Benefits:
✅ ISI Certified: Fully compliant with IS: 5290 Type A, ensuring high safety and performance
✅ Stainless Steel (SS-304) Construction: High corrosion resistance, ideal for harsh environments
✅ High Flow Rate: 900 LPM at 7 kgf/cm², ensuring efficient firefighting capability
✅ Hydrostatically Tested: Designed to withstand high pressure up to 21 kgf/cm²
✅ Heavy-Duty Cast Iron Hand Wheel: Provides smooth operation and durability
✅ PVC Blank Cap with Chain: Prevents dust, debris, and unauthorized use
✅ Superior Paint Coating: Ensures longer service life and resistance to environmental wear
4. Applications:
- Fire Hydrant Systems in residential, commercial, and industrial buildings
- Oil Refineries, Chemical Plants & Manufacturing Units
- Fire Brigades & Emergency Fire Response Teams
- Power Plants, Airports & Defense Installations
- Warehouses, Marine Docks & High-Risk Fire Zones
- Petrochemical & Hazardous Material Handling Facilities
