1. General Description:

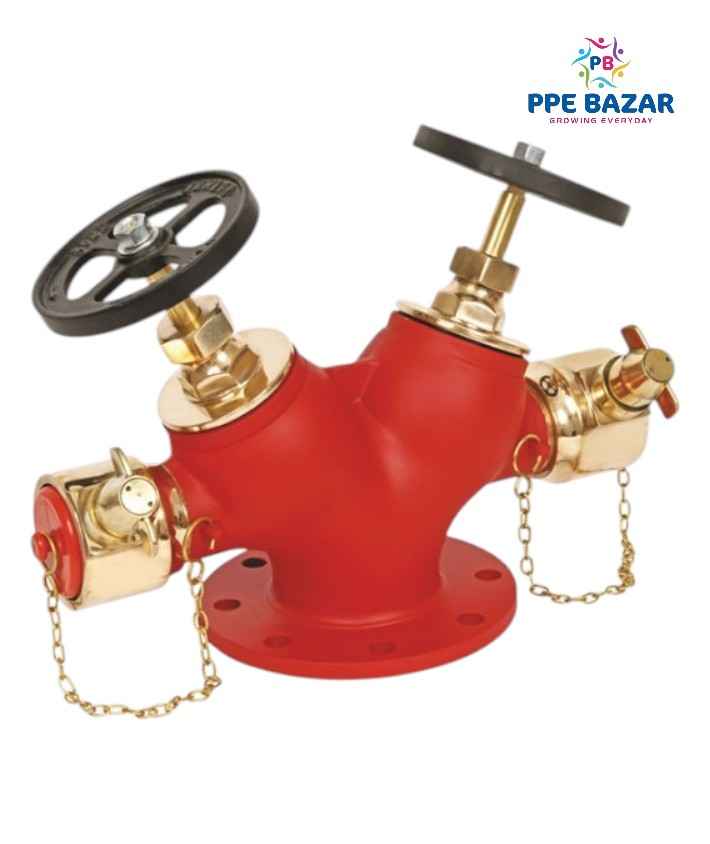

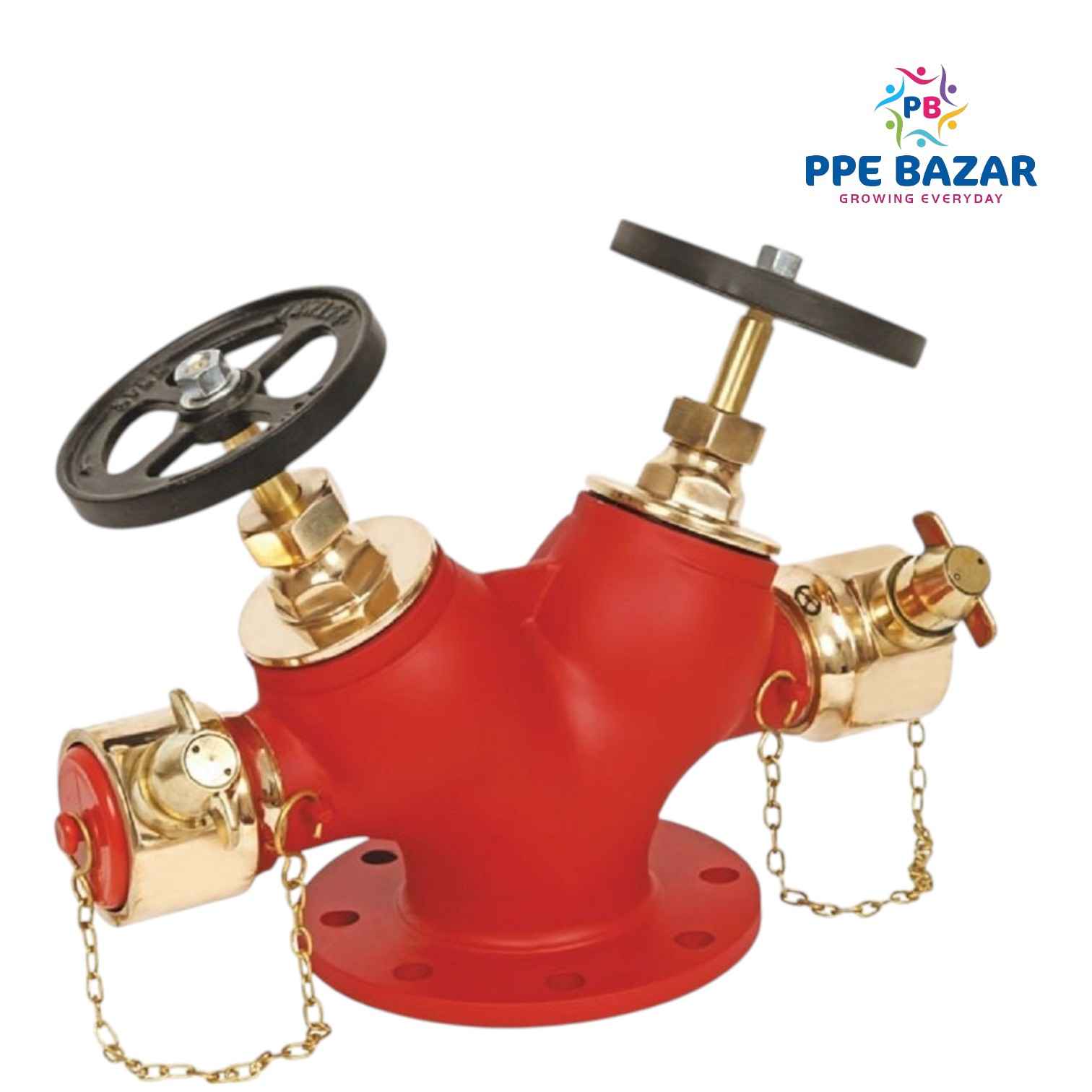

The Double-Headed Hydrant Valve is an essential firefighting component designed to control and regulate the water supply from a fire hydrant system. Constructed from high-grade Stainless Steel (SS-304), this valve ensures superior durability, corrosion resistance, and long-term reliability.
Compliant with IS: 5290 and ISI-marked, this hydrant valve is hydrostatically tested for high-pressure firefighting applications. The double-headed design enables simultaneous water discharge through two outlets, enhancing firefighting efficiency and response time.
2. Technical Specifications:
- Type: Double-Headed Hydrant Valve
- Material: Stainless Steel (SS-304) Body
- Standard Compliance: IS: 5290 (ISI Marked)
- Inlet Size: 100mm flanged inlet (compatible with standard fire mains)
- Outlet Size: 2 x 63mm Female Instantaneous outlets
- Hand Wheel Material: Cast Iron (C.I.) – Heavy-duty and durable
- Blank Caps: PVC with chain – Protects outlets from dust and contamination
- Body Coating: Two coats of superior quality paint for corrosion resistance
- Hydrostatic Pressure Test:
- Body Pressure Test: 21 kgf/cm²
- Seat Pressure Test: 14 kgf/cm²
- Flow Rate: Minimum 1800 LPM (Liters per Minute) at 7 kgf/cm²
3. Key Features & Benefits:
✅ ISI Certified: Fully compliant with IS: 5290, ensuring high safety and performance
✅ Stainless Steel (SS-304) Construction: High corrosion resistance, ideal for harsh environments
✅ Double-Headed Design: Two 63mm outlets allow for simultaneous water supply, improving firefighting efficiency
✅ High Flow Rate: Delivers 1800 LPM at 7 kgf/cm², ensuring adequate water supply in emergencies
✅ Hydrostatically Tested: Withstands high pressures up to 21 kgf/cm², ensuring leak-proof operation
✅ Heavy-Duty Cast Iron Hand Wheel: Provides easy operation and long-lasting durability
✅ PVC Blank Caps with Chain: Prevents dust, debris, and unauthorized access
✅ Superior Paint Coating: Protects against corrosion, rust, and environmental wear
4. Applications:
- Fire Hydrant Systems in residential, commercial, and industrial buildings
- Oil Refineries, Chemical Plants & Manufacturing Units
- Fire Brigades & Emergency Response Teams
- Power Plants, Airports & Defense Installations
- Warehouses, Marine Docks & High-Risk Fire Zones
- Petrochemical & Hazardous Material Handling Facilities
