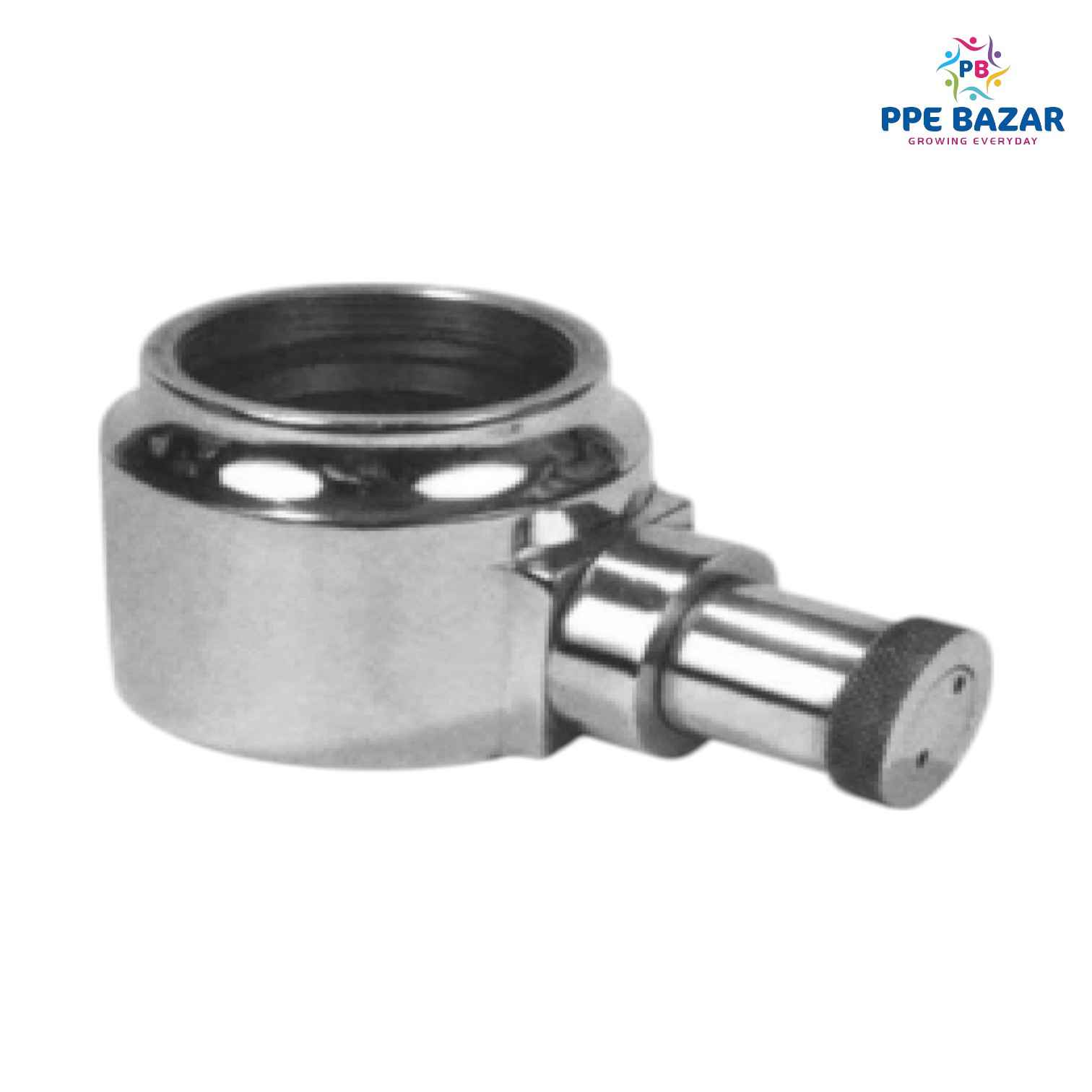

63mm Stainless Steel (SS) Hydrant Valve Coupling is a heavy-duty, corrosion-resistant connector designed for firefighting systems. It ensures secure, leak-proof connections between fire hoses, hydrants, and other emergency water supply equipment. Its stainless steel construction makes it ideal for harsh environments, including coastal and industrial areas.
Key Features
✔ Material: AISI 304/316 Stainless Steel (high corrosion resistance)
✔ Size: 63mm (2.5") – Standard firefighting hose compatibility
✔ Type: Male-Female Threaded Coupling (quick connect/disconnect)
✔ Pressure Rated: PN16 (16 Bar) / 250 PSI (higher ratings available)
✔ Standards: ISI Mark (IS 903/IS 636), NFPA 1963, BS 336
✔ Finish: Polished/Satin (optional anti-galling treatment)
Technical Specifications
| Parameter |
Specification |
| Material |
AISI 304 / 316 Stainless Steel |
| Size (Diameter) |
63mm (2.5") |
| Thread Type |
BSP (British Standard Pipe) / NPT (Optional) |
| Pressure Rating |
PN16 (16 Bar) / 250 PSI |
| Max. Temp. |
-30°C to +200°C |
| Surface Finish |
Polished / Electropolished (Optional) |
| Compliance |
ISI Mark (IS 903/IS 636), NFPA 1963 |
Design Features
- Male & Female Threads – Precision-machined for smooth engagement
- Knurled Grip – Ensures easy handling, even with gloves
- O-Ring/Groove Seal (Optional) – Enhanced leak-proof performance
- Heavy-Duty Construction – Resistant to impact and deformation
Performance Benefits
✅ Corrosion-Resistant – Suitable for marine, chemical, and industrial use
✅ High-Pressure Handling – Reliable under emergency water flow demands
✅ Long Service Life – Minimal maintenance required
✅ Quick Deployment – Ensures fast hose connections in emergencies
Applications
- Fire hydrant hose connections
- Industrial firefighting systems
- Municipal water supply networks
- Marine & offshore fire safety equipment
Installation & Maintenance
- Ensure threads are clean and undamaged before use
- Apply PTFE tape for smoother threading (if required)
- Inspect periodically for wear or thread damage
