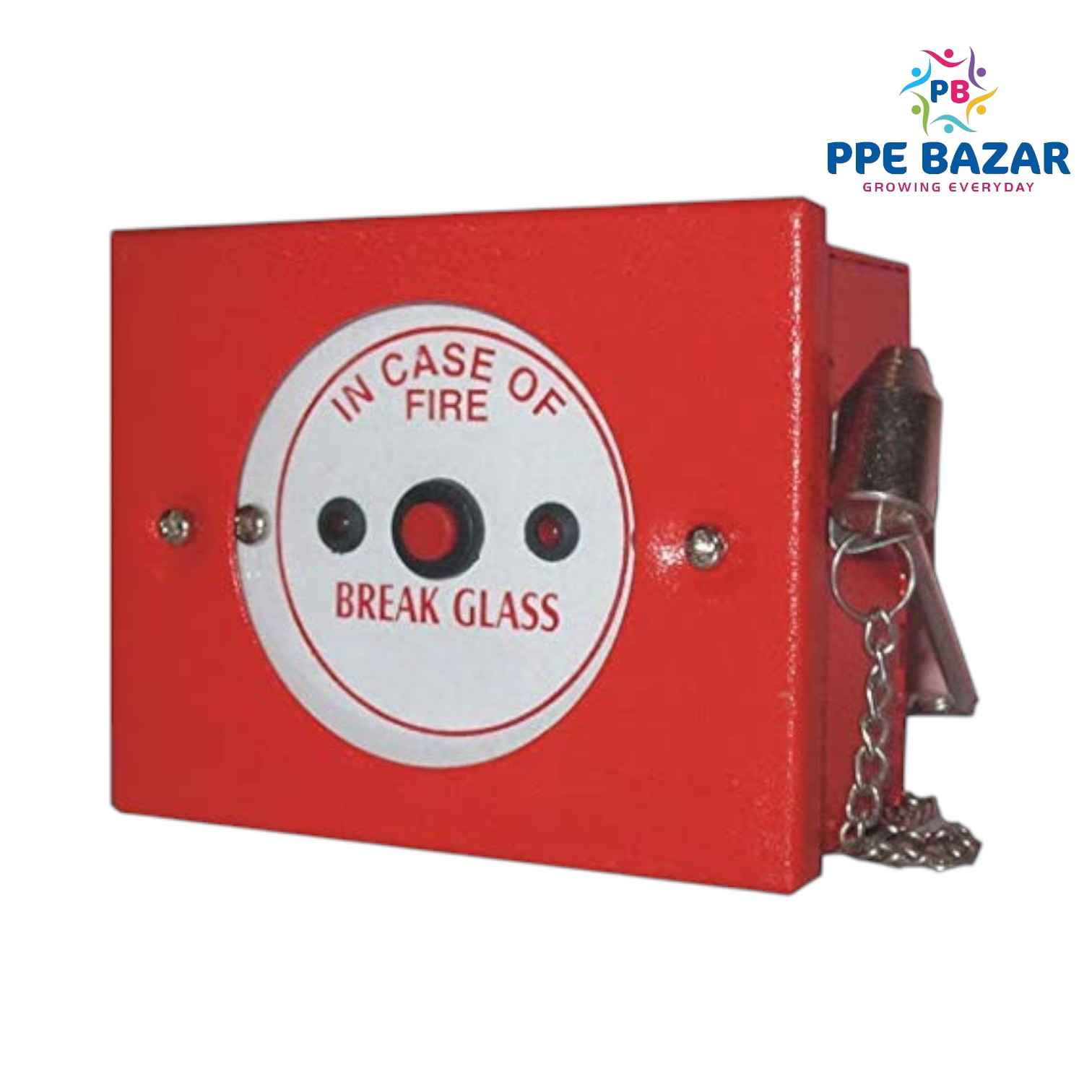

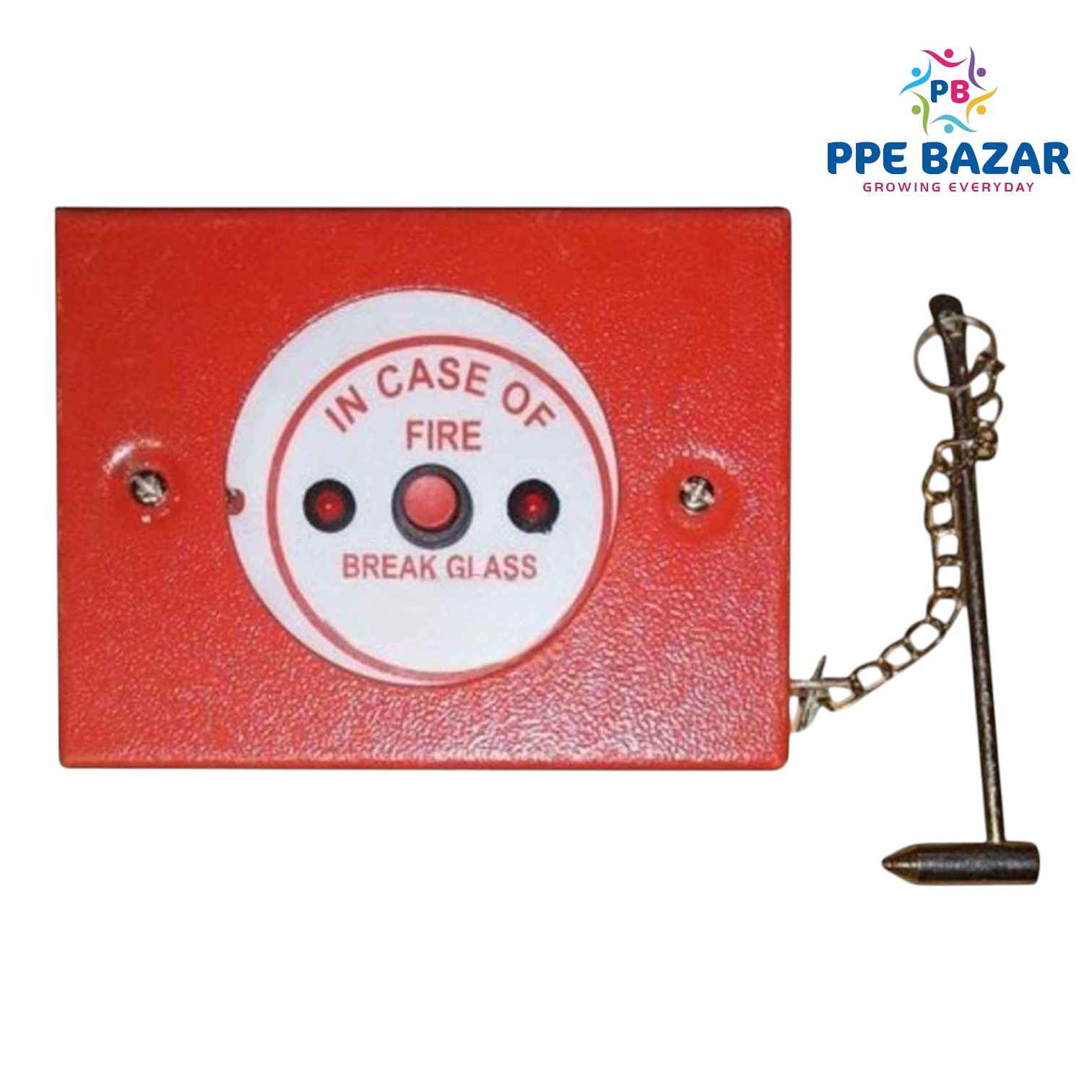

Manual Call point (MCP) with Hammer & Chain With Mild Steel (MS) Powder Coated ( Pack of 4 Nos)

0 Reviews 0 Orders 0 Wish listed

₹1,614.60 + GST

MRP ₹1,794.00 10 % Off

The Manual Call Point (MCP) is a fire alarm activation device designed for manual triggering of a fire alarm in case of emergency. This model features a durable metal enclosure with a powder-coated finish for enhanced corrosion resistance and aesthetic appeal. It comes equipped with a break glass mechanism, along with a metal hammer attached by a chain, allowing for quick and effective operation during emergencies.

Technical Specifications:

Feature	Details
Model Type	Break Glass Type Manual Call Point
Operation Method	Manual – Break glass using provided hammer
Material	Mild Steel / Cast Aluminum (as per model)
Finish	Durable Powder Coated (Red Color)
Mounting Type	Surface / Flush Mount
Hammer & Chain	Metal Hammer with Chain (Anti-theft design)
Glass	Toughened / Annealed Break Glass
Resettable	Non-resettable (glass needs replacement)
Ingress Protection	IP54 / IP65 (depending on enclosure rating)
Operating Voltage	Typically 24V DC (confirm based on model)
Terminal Connections	Screw-type terminals for secure wiring
Dimensions	Approx. 90mm x 90mm x 55mm (varies by make)
Standards Compliance	IS 2189 / EN 54-11 / Local Fire Regulations
Color	Red (RAL 3000 or equivalent)

Key Features:

Easy to use in case of emergency
Rugged metal construction for long life
Weather-resistant and corrosion-proof powder coating
Comes with hammer & chain for quick activation
Clearly marked “BREAK GLASS” label
Compatible with most fire alarm panels

Technical Specifications:

Feature	Details
Model Type	Break Glass Type Manual Call Point
Operation Method	Manual – Break glass using provided hammer
Material	Mild Steel / Cast Aluminum (as per model)
Finish	Durable Powder Coated (Red Color)
Mounting Type	Surface / Flush Mount
Hammer & Chain	Metal Hammer with Chain (Anti-theft design)
Glass	Toughened / Annealed Break Glass
Resettable	Non-resettable (glass needs replacement)
Ingress Protection	IP54 / IP65 (depending on enclosure rating)
Operating Voltage	Typically 24V DC (confirm based on model)
Terminal Connections	Screw-type terminals for secure wiring
Dimensions	Approx. 90mm x 90mm x 55mm (varies by make)
Standards Compliance	IS 2189 / EN 54-11 / Local Fire Regulations
Color	Red (RAL 3000 or equivalent)
