1. General Description:

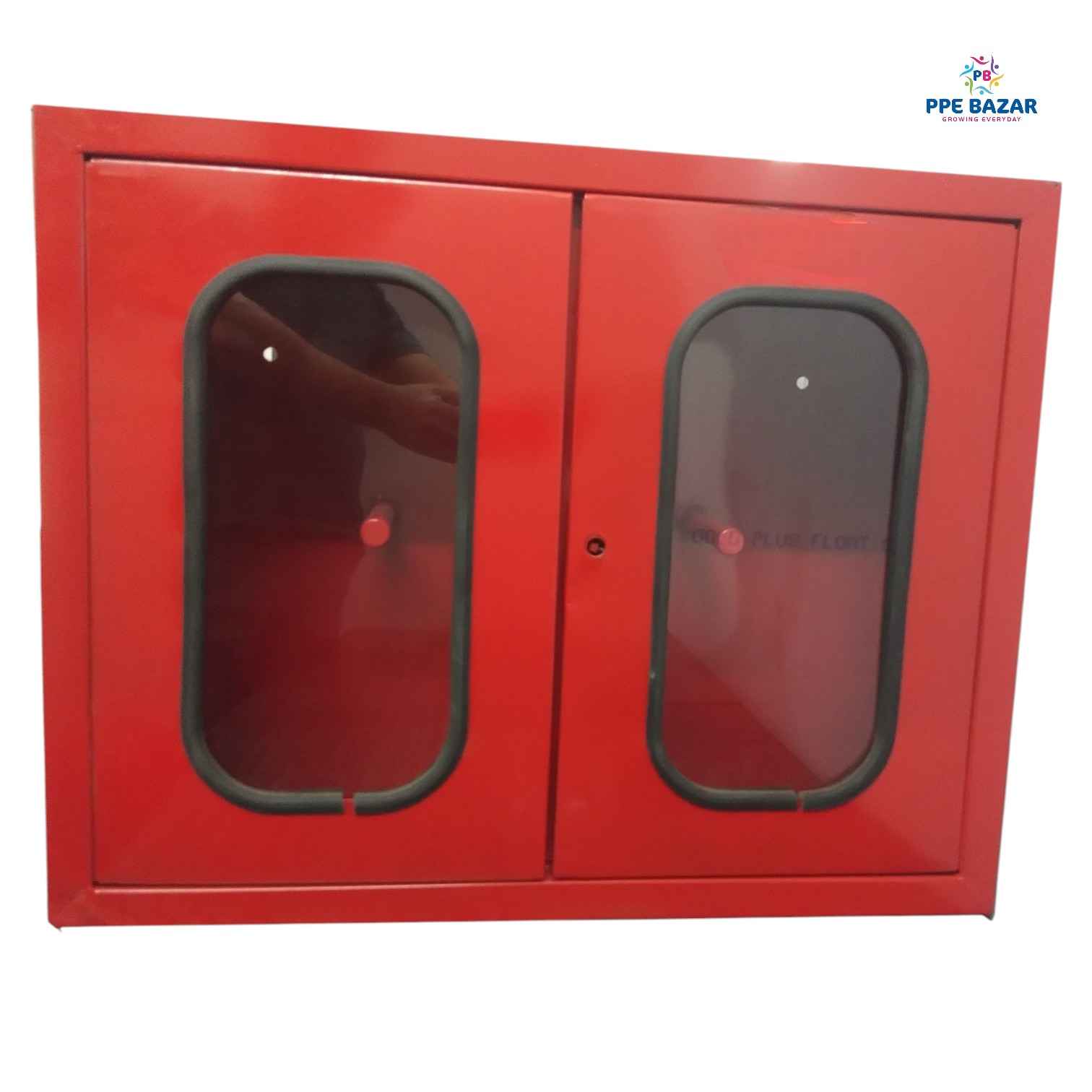

The Mild Steel (M.S.) Hose Cabinet is designed to store two lengths of 63mm x 15m hose pipe with couplings and one nozzle. It is made of 16 SWG mild steel sheet, ensuring durability and protection of firefighting equipment.

2. Specifications:

• Material: Mild Steel (M.S.)
• Sheet Thickness: 16 SWG (1.6mm)
• Cabinet Type: Double Door
• External Dimensions:
  • Height: 750mm
  • Width: 600mm
  • Depth: 250mm
• Storage Capacity:
  • Hose Pipe: 2 lengths of 63mm x 15m with coupling
  • Nozzle: 1 No.
• Door Type:
  • Double door with lock and key arrangement
  • Handle: Stainless steel or mild steel with powder coating
• Finish:
  • Powder-coated fire red (RAL 3000)
  • Corrosion-resistant paint on the inner side
• Mounting:
  • Wall-mounted with pre-drilled holes for easy installation
• Ventilation:
  • Provided with air vents to prevent moisture build-up
• Glass Window:
  • Optional toughened or acrylic glass panel for visibility.
