1. General Description:

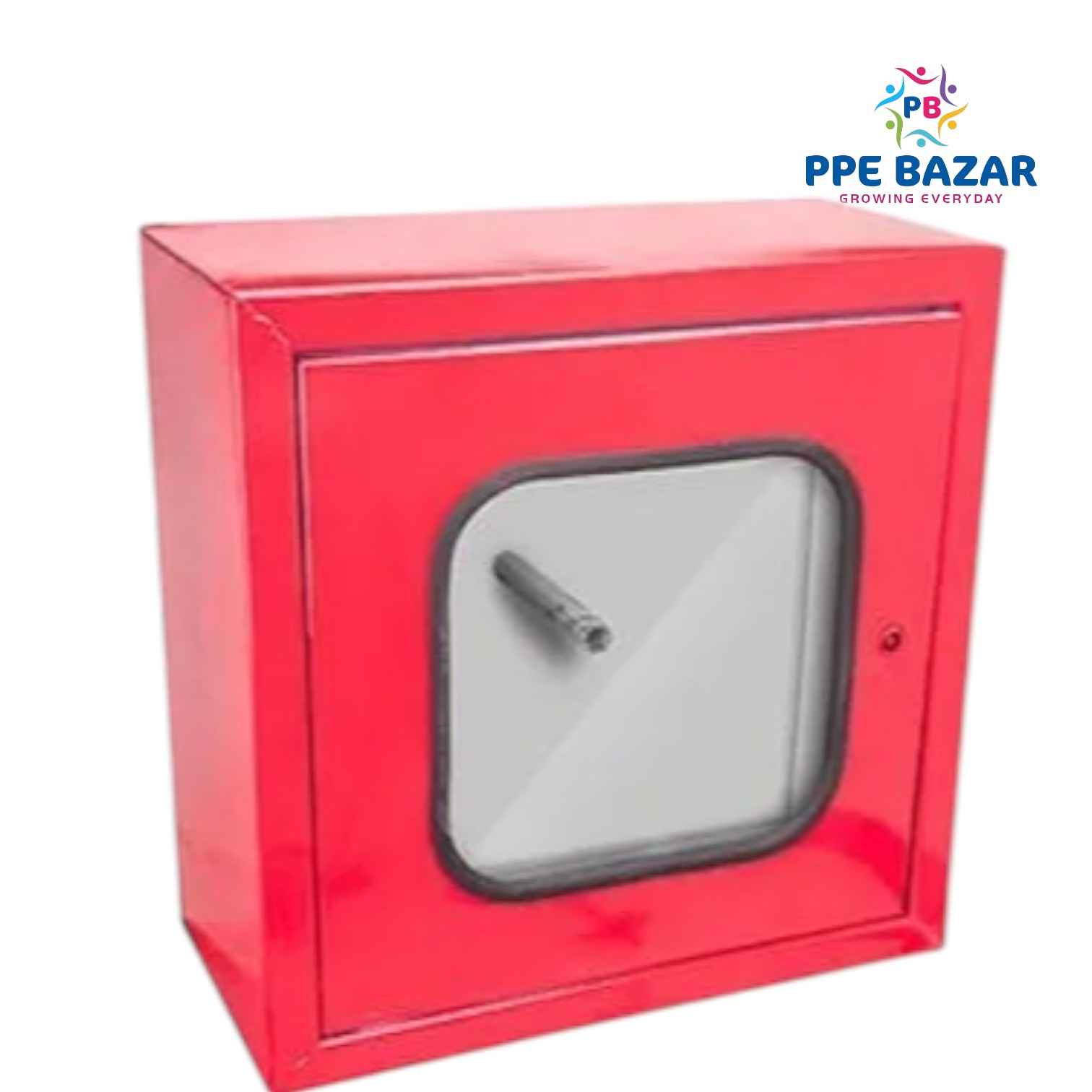

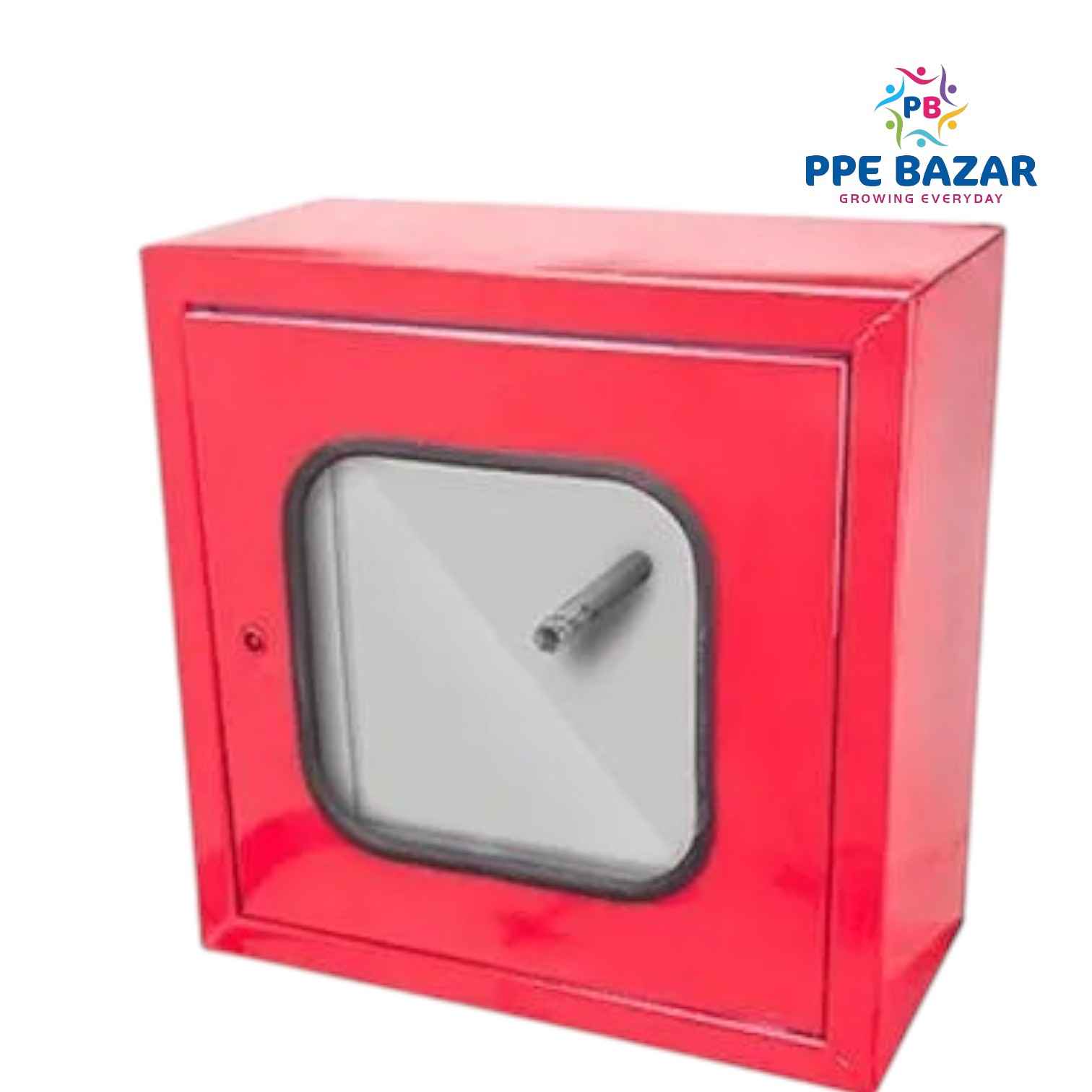

The hose cabinet is designed to securely store firefighting hose equipment, including one (1) length of 63mm x 15m hose with coupling and one (1) nozzle. The cabinet is wall-mounted for easy accessibility and made from durable Mild Steel (M.S.) of 16 SWG thickness to ensure strength and protection.

2. Specifications:

Material & Construction:

• Material: Mild Steel (M.S.)
• Thickness: 16 SWG (Standard Wire Gauge)
• Type: Wall-mounted, Single-door

Dimensions:

• Width: 450mm
• Height: 600mm
• Depth: 250mm

Door & Locking Mechanism:

• Single-door design with a hinged opening
• Handle: Stainless steel / Mild steel handle for easy access
• Locking System: Latch-type / Key-operated lock for security

Finish & Protection:

• Surface Treatment: Powder-coated / Red enamel paint for rust prevention
• Color: Fire Red (Standard Fire Equipment Color)
• Signage: "FIRE HOSE" label in white reflective letters

Capacity & Storage:

• Hose Compatibility: 63mm diameter x 15-meter length fire hose with coupling
• Nozzle Holder: Space provided for 1 nozzle
• Ventilation: Louvers or perforations for airflow (optional)

3. Installation:

• Mounting Type: Wall-mounted using anchor bolts
• Positioning: At an accessible height for emergency use
