Description:

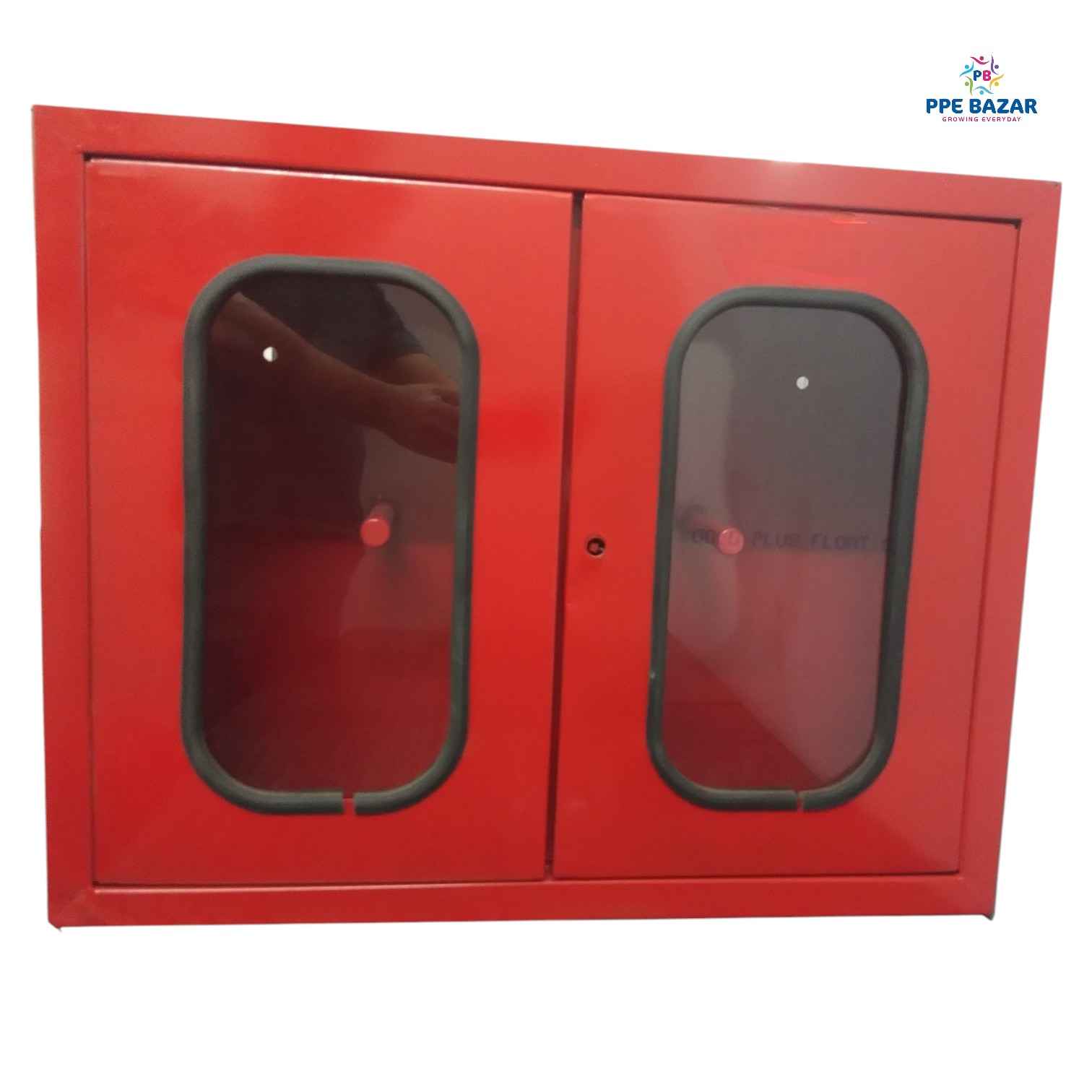

The M.S. 18 SWG Double Door Hose Cabinet is designed to house firefighting equipment, specifically:

• Two lengths of fire hose (63mm diameter, 15-meter length each) with couplings.
• One nozzle for fire hose operation.
• Cabinet size: 750mm (H) x 600mm (W) x 250mm (D).

Specification:

1. Material:
   • Constructed from Mild Steel (M.S.) sheet of 18 SWG (Standard Wire Gauge) thickness.
   • The material should be rust-proof and suitable for long-term use in firefighting applications.
2. Design & Construction:
   • Double-door design for easy access.
   • Doors to be provided with handle and locking arrangement for security.
   • Hinged doors with smooth opening/closing mechanism.
   • Adequate ventilation slots or louvers for air circulation.
3. Internal Arrangement:
   • Designed to accommodate two lengths of 63mm x 15m hose pipes with couplings and one nozzle in an organized manner.
   • Brackets or clamps to securely hold hoses and nozzle in place.
4. Finish:
   • Powder-coated finish for corrosion resistance.
   • Fire Red Color (RAL 3000 or equivalent) with white "FIRE HOSE" marking.
5. Mounting:
   • Wall-mounted or free-standing as per installation requirements.
   • Provision for anchor bolts or mounting brackets.
6. Markings & Labels:
   • Clearly labeled with "FIRE HOSE" in white, bold letters.
   • Manufacturer's name, model number, and specifications to be mentioned inside the cabinet.
7. Accessories (Optional):
   • Transparent acrylic or glass panel for quick visibility.
   • Rubber gasket for dust and water resistance.
