1. General Description

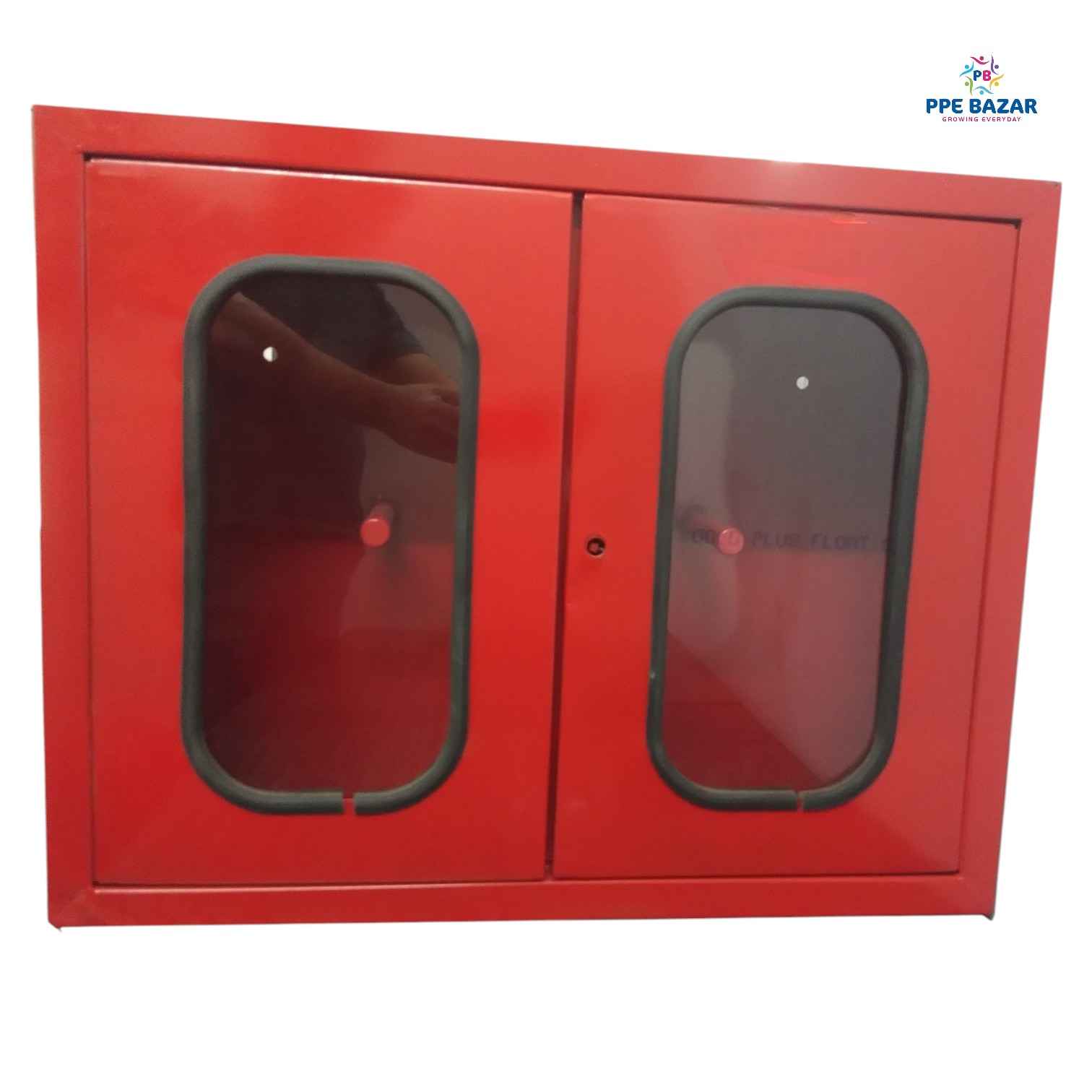

The M.S. 20 SWG Double Door Hose Box is designed for the safe storage and easy accessibility of fire hoses in buildings, industries, and firefighting installations. The unit is fabricated from 18-gauge mild steel and comes equipped with double front glass doors for visibility and ease of access.

2. Specifications

• Material: Mild Steel (M.S.)
• Sheet Thickness: 20 SWG (Standard Wire Gauge) equivalent to 18-gauge
• Size: 900mm (H) x 600mm (W) x 250mm (D)
• Doors: Two front glass doors for visibility and protection
• Glass: Toughened glass or clear acrylic (as per requirement)
• Locking Mechanism: Fitted with a lock & key for security
• Finish:
  • Red powder-coated / Epoxy-painted for corrosion resistance
  • Fire safety signage or stickers as per standards
• Mounting Type: Wall-mounted or pedestal-mounted (as required)
• Accessories:
  • Pre-drilled mounting holes for easy installation
  • Rubber gaskets for dust and moisture protection (optional)
  • Stainless steel hinges for durability

3. Compliance & Standards

• Conforms to IS: 8090 and other relevant fire safety standards
• Designed to accommodate standard fire hoses and nozzles
