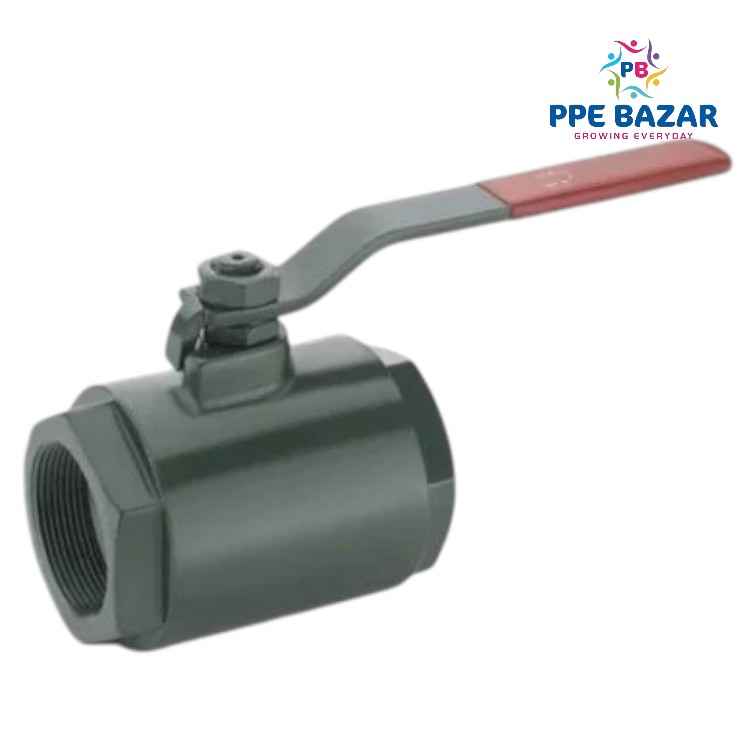

The 25 mm Mild Steel (MS) Ball Valve with Screw Ends is a compact and efficient shut-off valve designed for controlling fluid flow in pipelines. It uses a quarter-turn mechanism with a rotating ball that aligns with the flow path to allow or block fluid passage.
Constructed from Mild Steel, the valve is best suited for low to medium pressure applications involving water, air, oil, and other non-corrosive fluids. The screw/threaded end connection (typically BSP or NPT) ensures easy installation and maintenance in residential, industrial, and utility piping systems.
📐 Specifications:
| Parameter |
Details |
| Product |
Ball Valve |
| Size |
25 mm (1 inch) |
| Body Material |
Mild Steel (MS) |
| Ball Material |
MS / Chrome Plated Brass / SS (based on model) |
| Seat Material |
PTFE (Teflon) |
| End Connections |
Screwed Ends (BSPT / NPT – as per requirement) |
| Port Type |
Full Bore / Standard Bore (as specified) |
| Operation |
Quarter-turn manual operation |
| Handle Type |
Coated Steel Lever Handle |
| Pressure Rating |
Up to 25 bar |
| Temperature Range |
-10°C to +180°C (varies with seat material) |
| Coating / Finish |
Painted / Powder Coated / Galvanized (optional) |
| Thread Standard |
BSP / NPT |
| Applications |
Water supply, Oil lines, Air systems, General piping |
| Testing Standard |
As per IS / API 598 / BS Standards |
The MS Ball Valve with Screw Ends is a quarter-turn valve used for shut-off applications in pipelines carrying water, air, oil, and non-corrosive fluids. It features a rotating ball with a bore that aligns with the flow when open and blocks it when closed.
Constructed from Mild Steel (MS), this valve is suitable for low to medium pressure applications and environments where corrosion is minimal or managed externally (e.g., with painting or galvanizing). The 20 mm (¾") valve size is compact and ideal for domestic, industrial, and utility piping systems.
The screwed (threaded) ends make installation easy and cost-effective without the need for welding or flanging.
📐 Specifications:
| Parameter |
Details |
| Type |
Ball Valve |
| Size |
20 mm (¾ inch) |
| Material of Construction (Body) |
Mild Steel (MS) |
| Ball Material |
Chrome Plated Brass / Stainless Steel / MS (varies) |
| Seat Material |
PTFE (Teflon) |
| End Connection |
Screwed Ends (BSP / NPT threads as specified) |
| Port Type |
Full Bore / Reduced Bore (confirm based on use) |
| Operation |
Quarter-turn manual handle |
| Handle |
MS / Coated Steel Lever Handle |
| Working Pressure |
Up to 25 bar (depending on design) |
| Temperature Range |
-10°C to +180°C (depends on seat material) |
| Thread Standard |
BSPT / NPT (as per requirement) |
| Application |
Water, Air, Oil, Non-corrosive fluids |
| Coating |
Painted / Powder Coated / Galvanized (optional) |
| Testing Standard |
As per IS / BS / API 598 (Leakage and Pressure Test) |
The 25 mm Mild Steel (MS) Ball Valve with Screw Ends is a compact and efficient shut-off valve designed for controlling fluid flow in pipelines. It uses a quarter-turn mechanism with a rotating ball that aligns with the flow path to allow or block fluid passage.
Constructed from Mild Steel, the valve is best suited for low to medium pressure applications involving water, air, oil, and other non-corrosive fluids. The screw/threaded end connection (typically BSP or NPT) ensures easy installation and maintenance in residential, industrial, and utility piping systems.
📐 Specifications:
| Parameter |
Details |
| Product |
Ball Valve |
| Size |
25 mm (1 inch) |
| Body Material |
Mild Steel (MS) |
| Ball Material |
MS / Chrome Plated Brass / SS (based on model) |
| Seat Material |
PTFE (Teflon) |
| End Connections |
Screwed Ends (BSPT / NPT – as per requirement) |
| Port Type |
Full Bore / Standard Bore (as specified) |
| Operation |
Quarter-turn manual operation |
| Handle Type |
Coated Steel Lever Handle |
| Pressure Rating |
Up to 25 bar |
| Temperature Range |
-10°C to +180°C (varies with seat material) |
| Coating / Finish |
Painted / Powder Coated / Galvanized (optional) |
| Thread Standard |
BSP / NPT |
| Applications |
Water supply, Oil lines, Air systems, General piping |
| Testing Standard |
As per IS / API 598 / BS Standards |
The MS Ball Valve with Screw Ends is a quarter-turn valve used for shut-off applications in pipelines carrying water, air, oil, and non-corrosive fluids. It features a rotating ball with a bore that aligns with the flow when open and blocks it when closed.
Constructed from Mild Steel (MS), this valve is suitable for low to medium pressure applications and environments where corrosion is minimal or managed externally (e.g., with painting or galvanizing). The 20 mm (¾") valve size is compact and ideal for domestic, industrial, and utility piping systems.
The screwed (threaded) ends make installation easy and cost-effective without the need for welding or flanging.
📐 Specifications:
| Parameter |
Details |
| Type |
Ball Valve |
| Size |
20 mm (¾ inch) |
| Material of Construction (Body) |
Mild Steel (MS) |
| Ball Material |
Chrome Plated Brass / Stainless Steel / MS (varies) |
| Seat Material |
PTFE (Teflon) |
| End Connection |
Screwed Ends (BSP / NPT threads as specified) |
| Port Type |
Full Bore / Reduced Bore (confirm based on use) |
| Operation |
Quarter-turn manual handle |
| Handle |
MS / Coated Steel Lever Handle |
| Working Pressure |
Up to 25 bar (depending on design) |
| Temperature Range |
-10°C to +180°C (depends on seat material) |
| Thread Standard |
BSPT / NPT (as per requirement) |
| Application |
Water, Air, Oil, Non-corrosive fluids |
| Coating |
Painted / Powder Coated / Galvanized (optional) |
| Testing Standard |
As per IS / BS / API 598 (Leakage and Pressure Test) |
