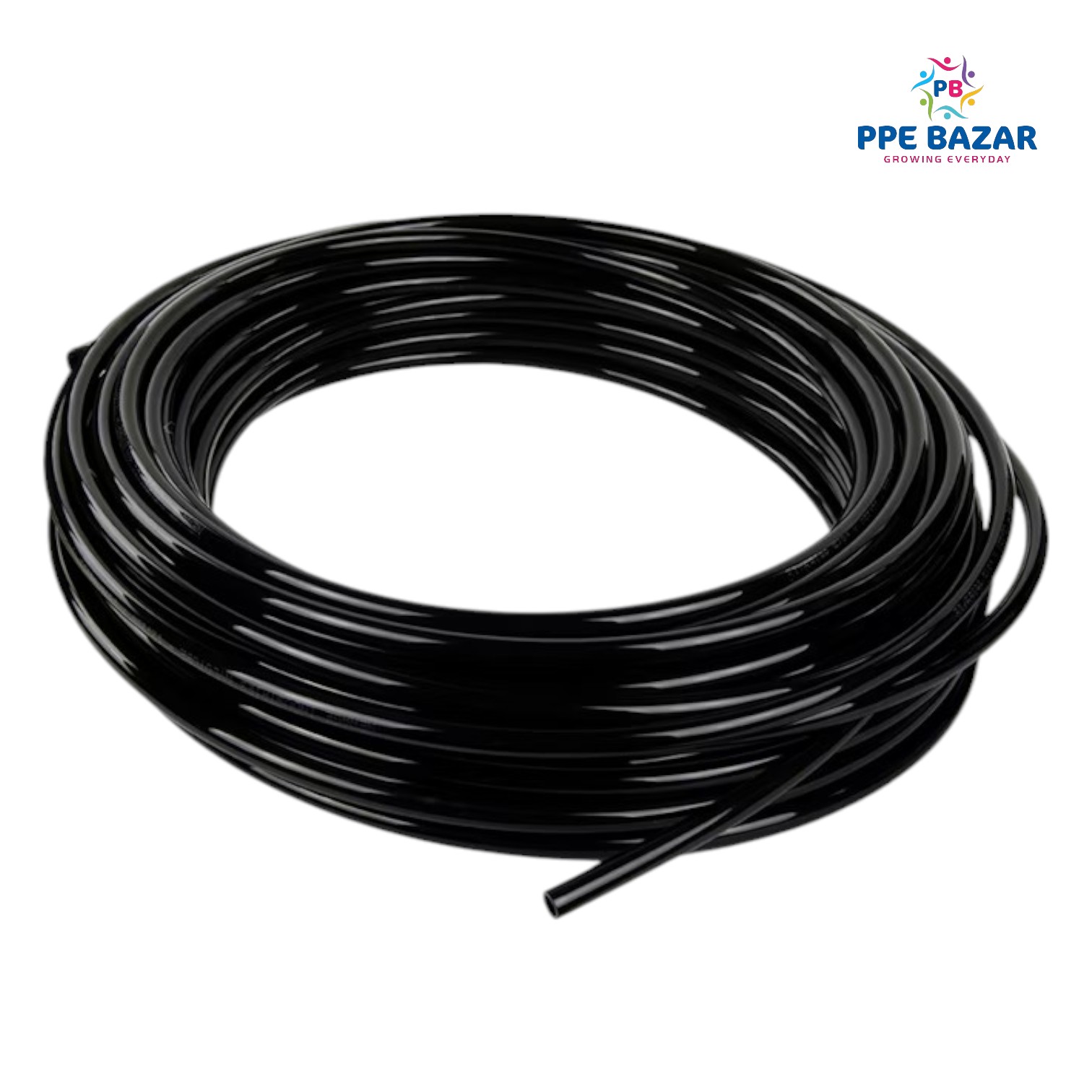

The Nylon Reinforced PVC Tubing is a high-quality, flexible hose designed for delivering compressed air, gases, or fluids in industrial environments. Manufactured with multi-layer construction, the tubing features an inner and outer layer of PVC (Polyvinyl Chloride) and a strong nylon braid reinforcement in between, providing excellent pressure resistance, flexibility, and durability.
This particular model comes in a 1/4-inch inner diameter and a 15-meter length, pre-fitted with Quick Release Couplings (QRC) at both ends for fast, secure connections to air tools, flow regulators, or airline respirators. It is ideal for use in pneumatic tools, spray painting, chemical handling, and airline breathing systems.
Key Features:
-
Triple-Layer Construction: PVC inner & outer layers with nylon braided reinforcement
-
Flexible & Lightweight: Easy handling and kink resistance, even at longer lengths
-
High Working Pressure: Suitable for medium to high-pressure air supply systems
-
QRC End Fittings: Pre-fitted Quick Release Couplings for convenience and safety
-
Chemical & Abrasion Resistant: Suitable for industrial-grade applications
-
Transparent or Colored Finish: Available in standard industrial colors
Technical Specifications:
| Specification |
Details |
| Tube Type |
Nylon Reinforced PVC Hose |
| Inner Diameter (ID) |
1/4 inch (6.35 mm) |
| Outer Diameter (OD) |
Approx. 10–12 mm (varies with make) |
| Length |
15 Meters |
| Reinforcement |
Braided Nylon Yarn |
| Material |
Virgin PVC with Nylon Braid |
| Color |
Black / Blue / Transparent (as per availability) |
| Working Pressure |
Up to 10–12 Bar (150–175 PSI) |
| Burst Pressure |
Minimum 3x working pressure |
| End Connections |
Factory-fitted Quick Release Couplings (QRC – male/female) |
| Temperature Range |
-10°C to +60°C |
| Weight |
Approx. 2–3 kg per 15-meter coil |
| Usage |
Air supply, pneumatic tools, airline respirators, spray booths |
| Standards |
Conforms to industrial safety and pneumatic hose standards |
