The Udyogi Sigma 2 Type 2 Self-Contained Breathing Apparatus (SCBA) is designed to provide reliable respiratory protection in hazardous environments, such as industrial and marine firefighting scenarios. The backplate is a crucial component of this SCBA, offering support and stability to the wearer.

Description:

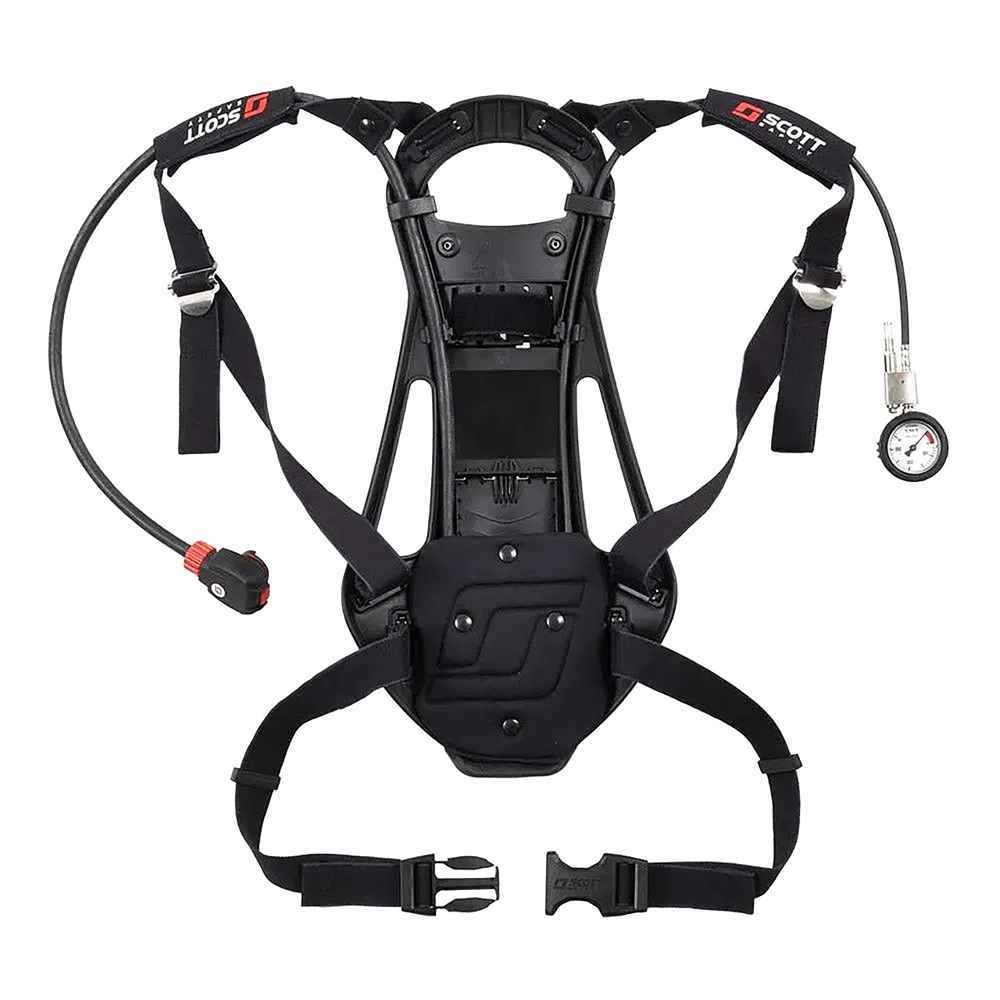

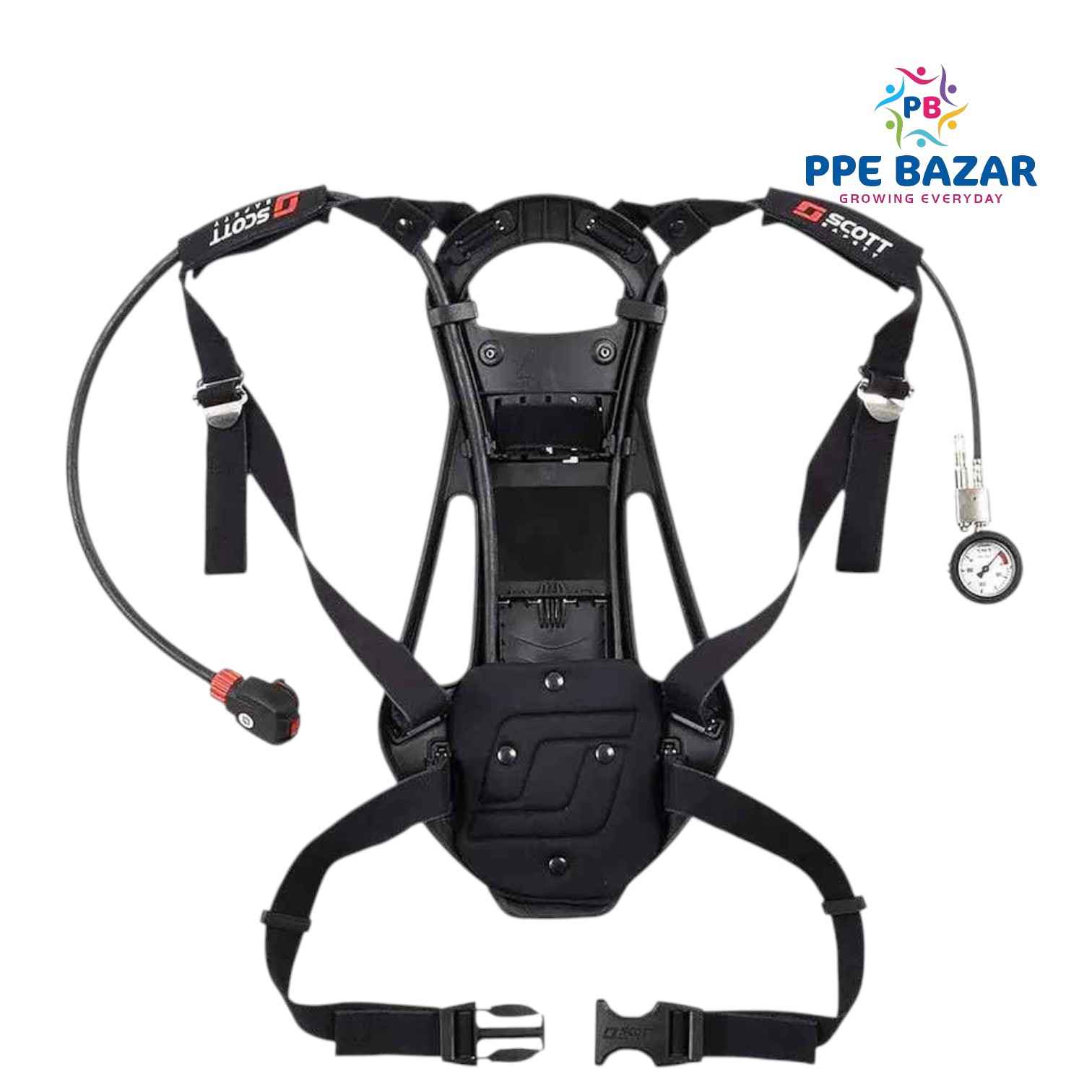

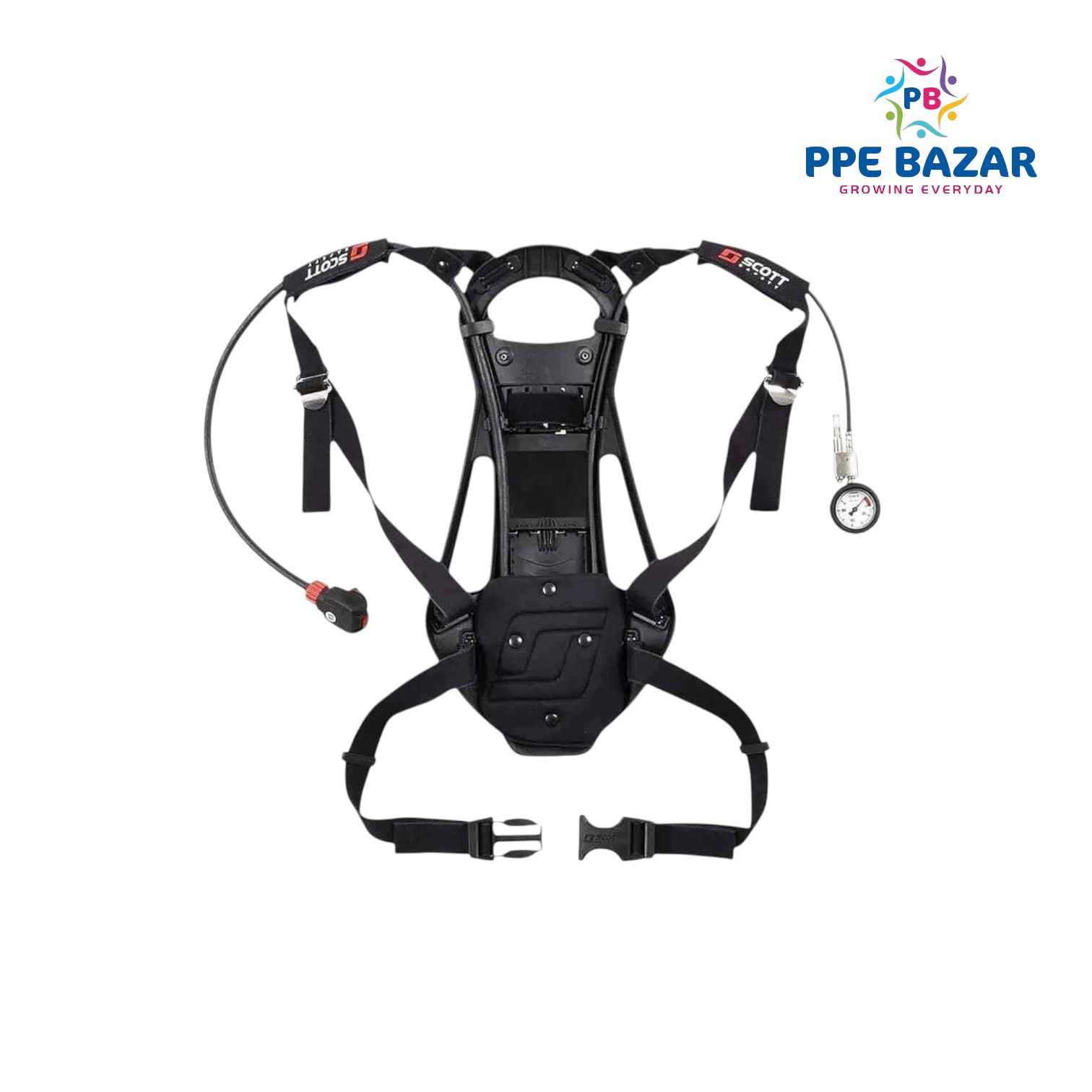

The backplate of the Sigma 2 Type 2 SCBA is ergonomically designed to ensure comfort during extended use. It is constructed from a lightweight yet durable composite material, providing strength without compromising on weight. The backplate integrates seamlessly with the carrying harness, which is made from a flame-retardant Kevlar® blend, ensuring both safety and durability.

Specifications:

• Material: Glass and carbon-filled nylon composite for the backplate; flame-retardant Kevlar® blend for the harness.
• Weight: Approximately 2.3 kg for the single configuration (excluding the cylinder).
• Dimensions:
  • Length: 600 mm
  • Width: 278 mm
  • Depth: 200 mm (with a 6.8-liter 300 bar cylinder)
• Harness: Fully adjustable Type 2 harness with flame-retardant Kevlar® blend webbing and a Kevlar® cylinder band.
• Approvals: Certified to EN 137:2006 Type 2 and MED (Marine Equipment Directive) standards.

The Sigma 2 Type 2 SCBA's backplate and harness assembly are designed for ease of use, durability, and comfort, making it suitable for demanding applications where reliable respiratory protection is essential.
